2-7 62-10630

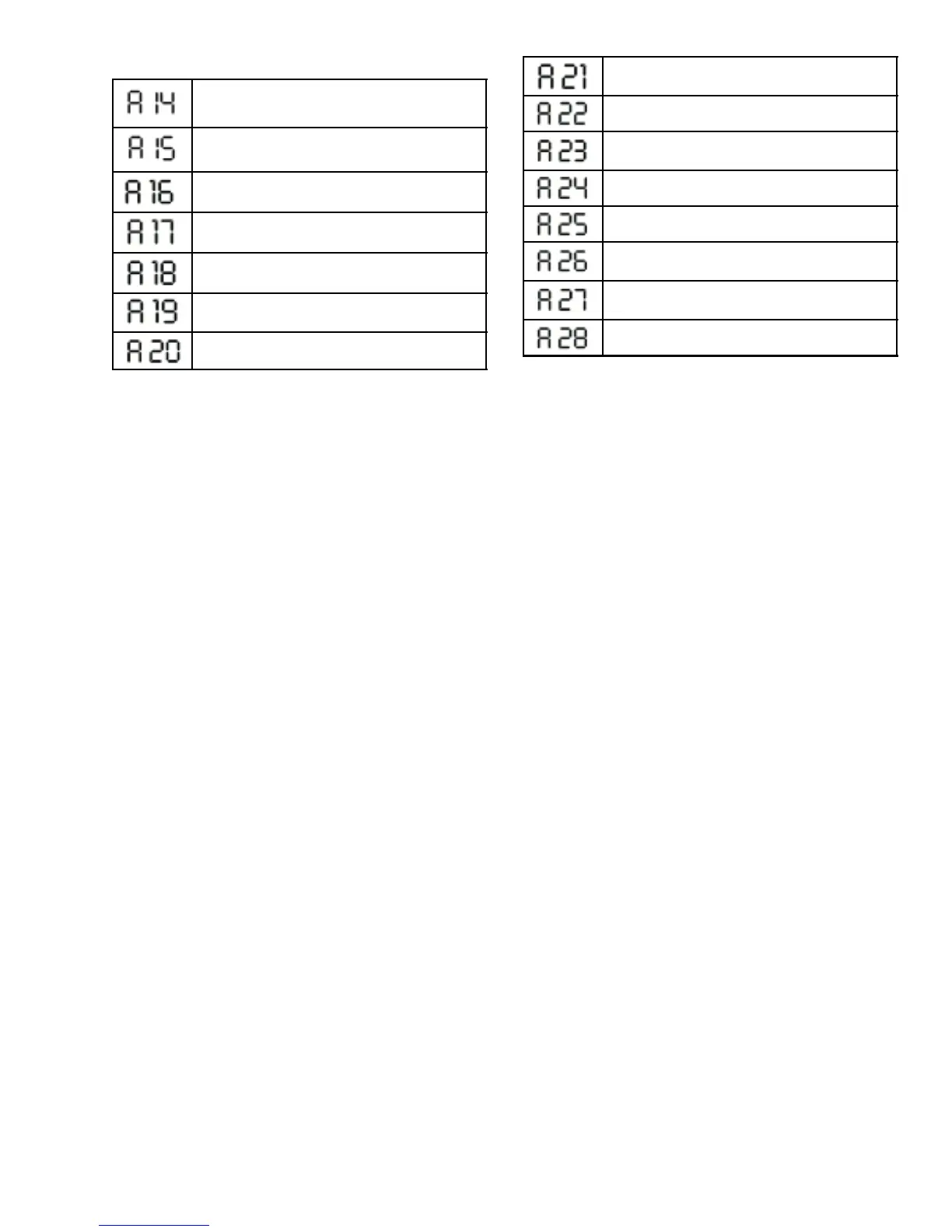

Table 2-2 Alarm Messages -- Continued

Defrost cycle > 45 minutes

Setpoint adjusted out of the range

-- 29°C/+30°C

Evaporator drain line heater (DWR) mal-

function

Transformer/Rectifier thermal overload

(RBT) open

Control fault, electric heat (Future)

Control fault, multi--temp liquid line valve

(Future)

Low pressure switch (LPS) open

(Standby)

Compressor contactor (MC) open circuit

Condenser fan motor (CFM) open circuit

Hot water solenoid valve (HWV) open

circuit

Hot gas valve (HGS1) open circuit

Quench valve (BPV) open circuit

Condenser Pressure Control Valve

(HGS2) open circuit

Evaporator drain line heater (DWR)

open circuit

Relay fault, electric heat (Future)
