BASED ON DRAWING 62--60827, REVISION B MODIFED FOR SERVICE MANUAL
ALARM RELAY (OPTION)
QUENCH (LIQUID INJECTION) THERMOSTAT
QUENCH (LIQUID INJECTION) VALVE
CAPACITOR
CIRCUIT BREAKER
CAB COMMAND
CONDENSER FAN MOTOR
COMPRESSOR CLUTCH (ROAD)
RUN CAPACITOR
START CAPACITOR
DOOR SWITCH (OPTION)
DEFROST TERMINATION THERMOSTAT
EVAPORATOR DRAIN LINE HEA TER
EMERGENCY SWITCH
EVAPORATOR FAN MOTOR
FUSE, TRANSFORMER
FUSE, IGNITION
FUSE, ROAD (DC)
FUSE, STANDBY (DC)
HIGH PRESSURE SWITCH
CONDENSER PRESSURE CONTROL SWITCH
HIGH PRESSURE SWITCH (STANDBY)
HOT GAS SOLENOID VALVE
CONDENSER PRESSURE CONTROL VALVE
HOT WATER VALVE
HOT WATER PUMP
VEHICLE IGNITION KEY
ELECTRONIC OVERLOAD RELAY
LOW PRESSURE SWITCH
COMPRESSOR MOTOR CONTACTOR
MICROPROCESSOR
THERMAL OVERLOAD
POWER SUPPLY RECEPTACLE
COMPRESSOR MOTOR THERMAL SENSOR
RETURN AIR SENSOR
RECTIFIER BRIDGE
RECTIFIER BRIDGE THERMISTOR
START CAPACITOR DISCHARGE RESISTOR
STANDBY COMPRESSOR MOTOR
START RELAY
TRANSFORMER
TRANSFORMER THERMAL SENSOR

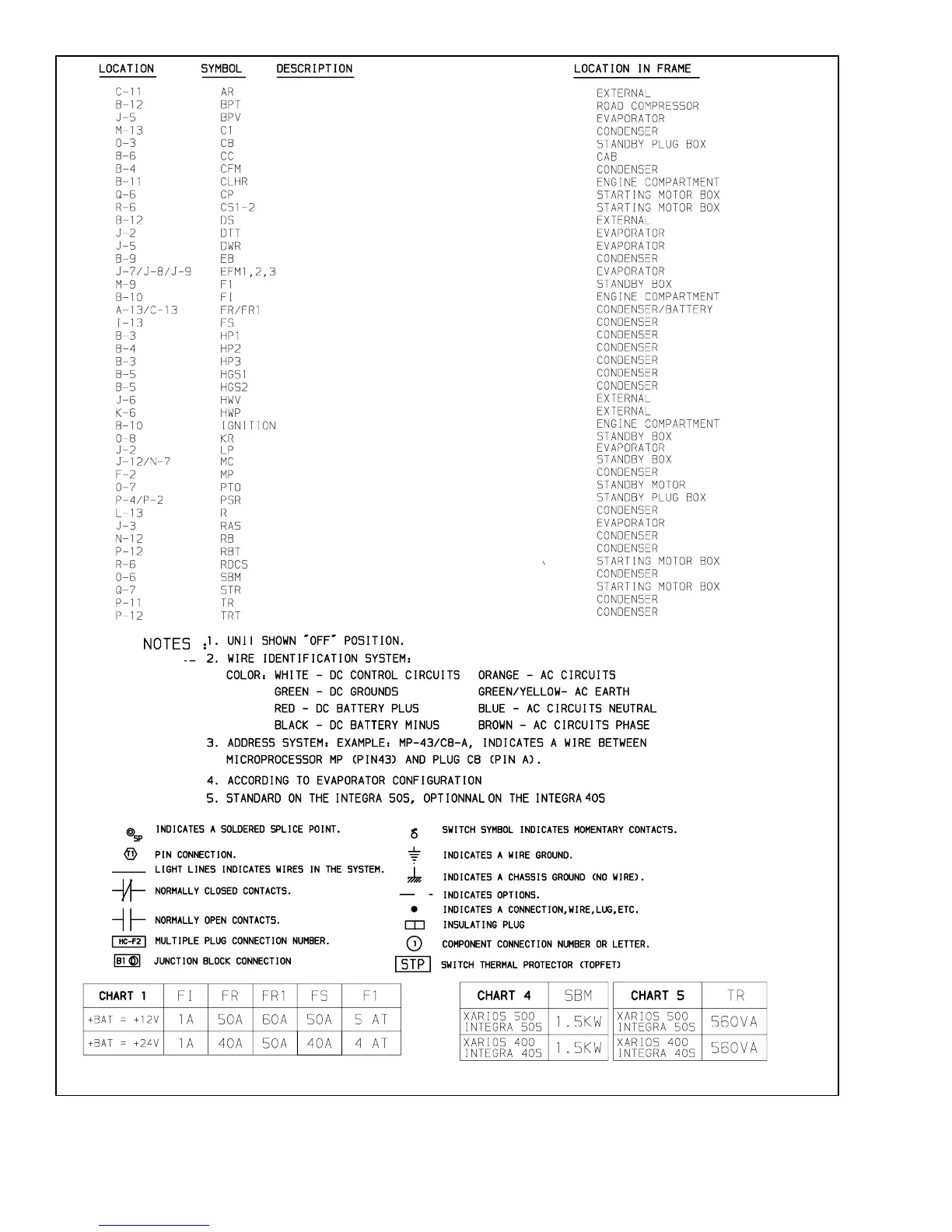

Figure 5-3. Schematic Diagram -- Single Phase Stand By Units
(Page1of2)
