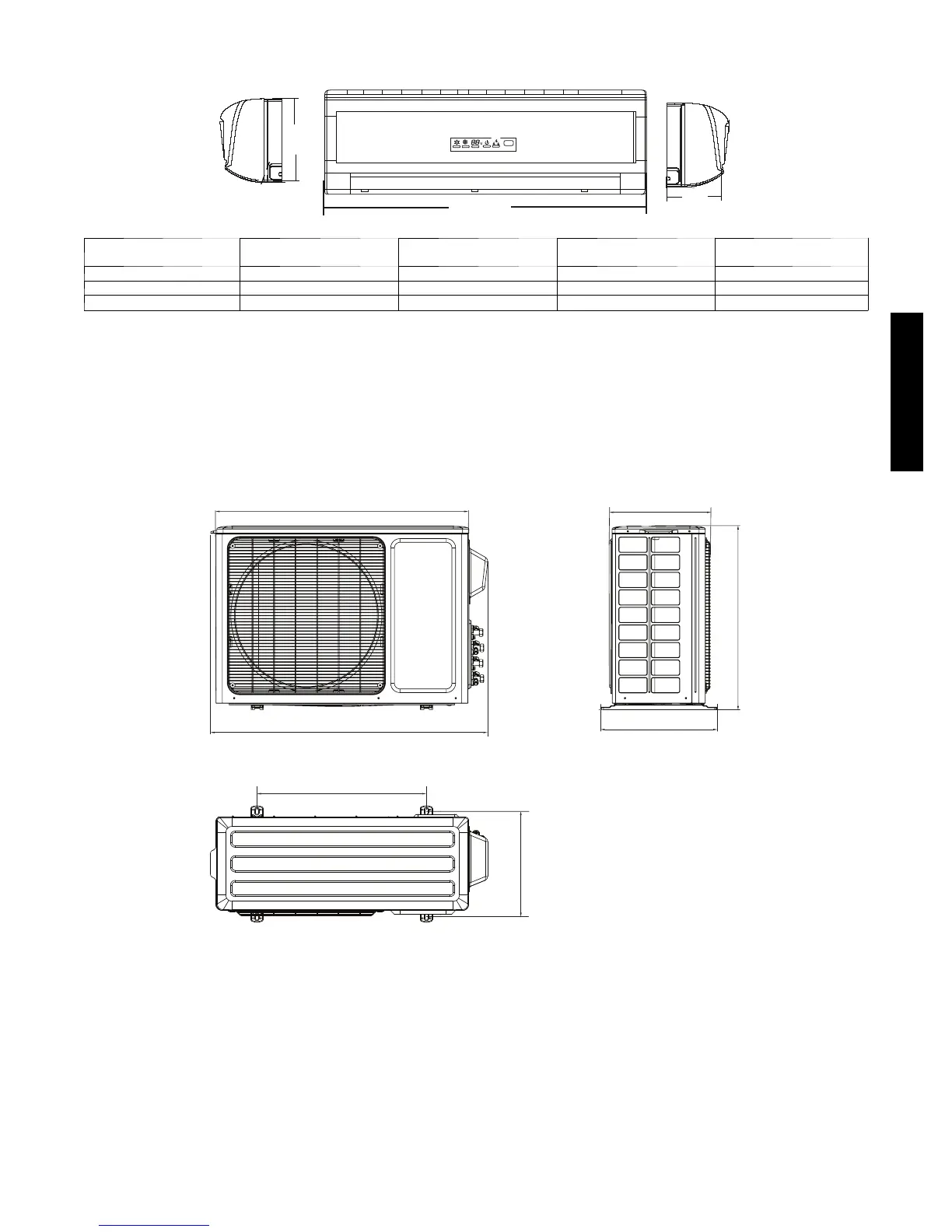

DIMENSIONS -- INDOOR
H
D
W
A08289
Unit Size
W
In. (mm)
H
In. (mm)
D
In. (mm)
Net Operating Weight
Lbs. (Kg)
9k 33.3 (846) 10.7 (272) 7.1 (180) 22.0 (10)
12k 33.3 (846) 10.7 (272) 7.1 (180) 22.0 (10)
18k 37.0 (940) 11.7 (297) 7.9 (201) 29.0 (13)
Fig. 2 --- Indoor Unit Dimensions
DIMENSIONS -- OUTDOOR
35.4 (899)
32.1 (815)
23.5 (596)
14.4 (378)
12.4 (316)
13.5 (343)
21.7 (550)
Unit: in. (mm)
A12552
Fig. 3 --- 38GVM018
Weight, lb (kg): Gross -- 106 (48) / Net -- 95 (43)
