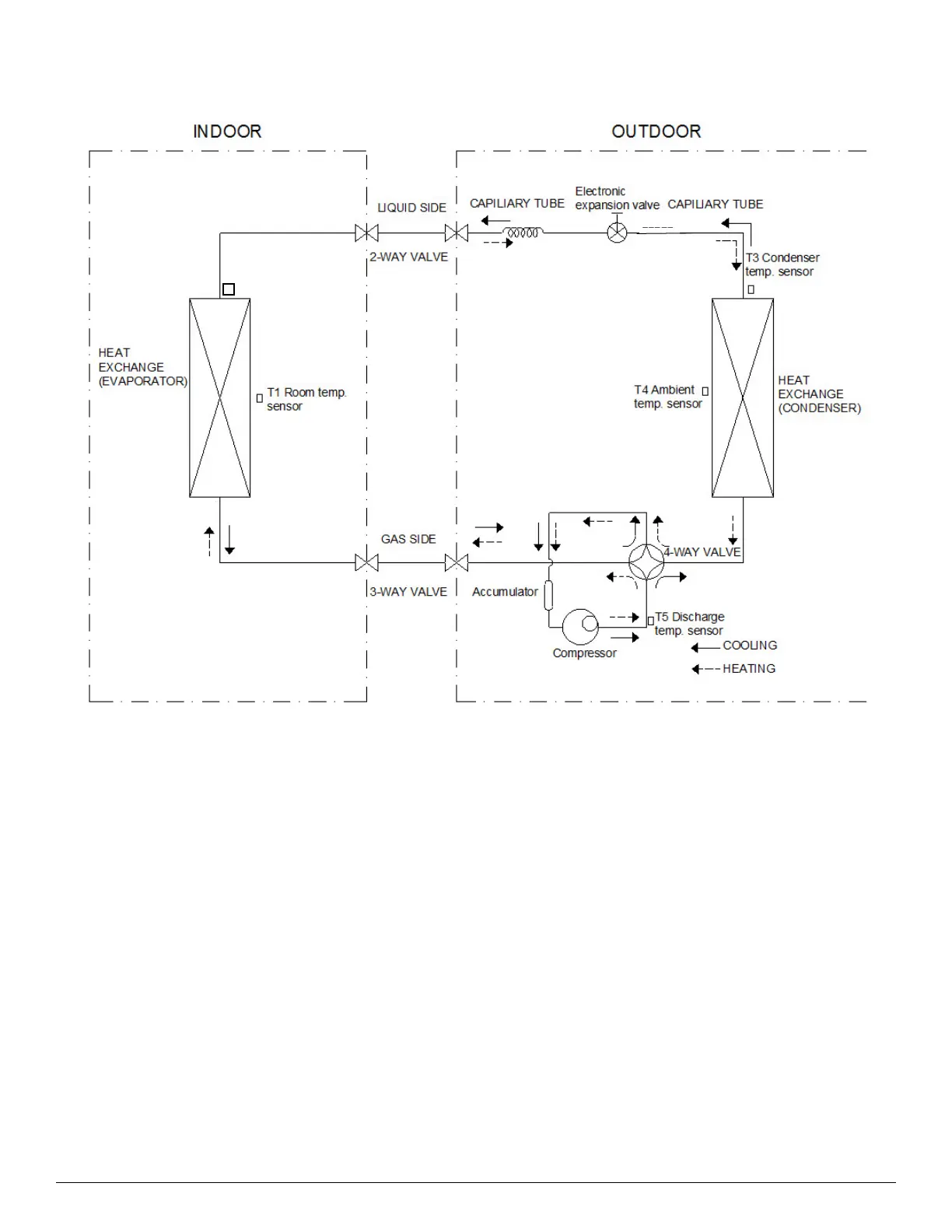

REFRIGERATION CYCLE DIAGRAM
Fig. 5 — Refrigeration Cycle Diagram
REFRIGERANT LINES
IMPORTANT: Both refrigerant lines must be insulated separately.
Refer to the outdoor unit’s installation instructions for other allowed piping lengths and refrigerant information.
T2 Evaporator
temp. sensor
