40MBFAQ: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
43
DISASSEMBLY INSTRUCTIONS (CONT)
Upper Air Outlet Frame Assembly
NOTE: Remove the front panel and panel frame subassembly before disassembling the upper air outlet frame assembly.
Procedure Illustration

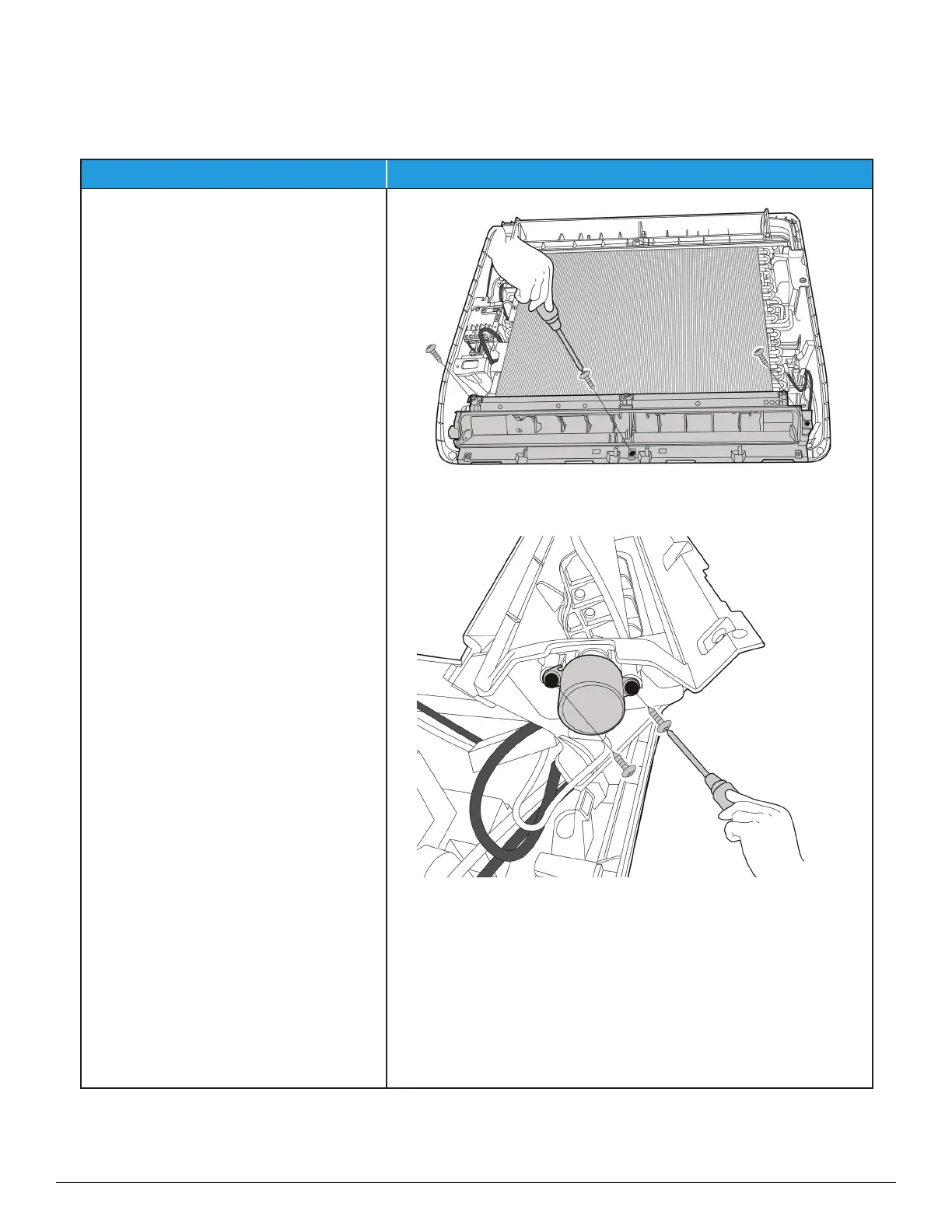

1) Remove 3 screws then remove the
upper air outlet frame assembly.
2) Remove 2 screws then remove the
upper the stepper motor.
To Next Page
