40MBFAQ: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
46
DISASSEMBLY INSTRUCTIONS (CONT)

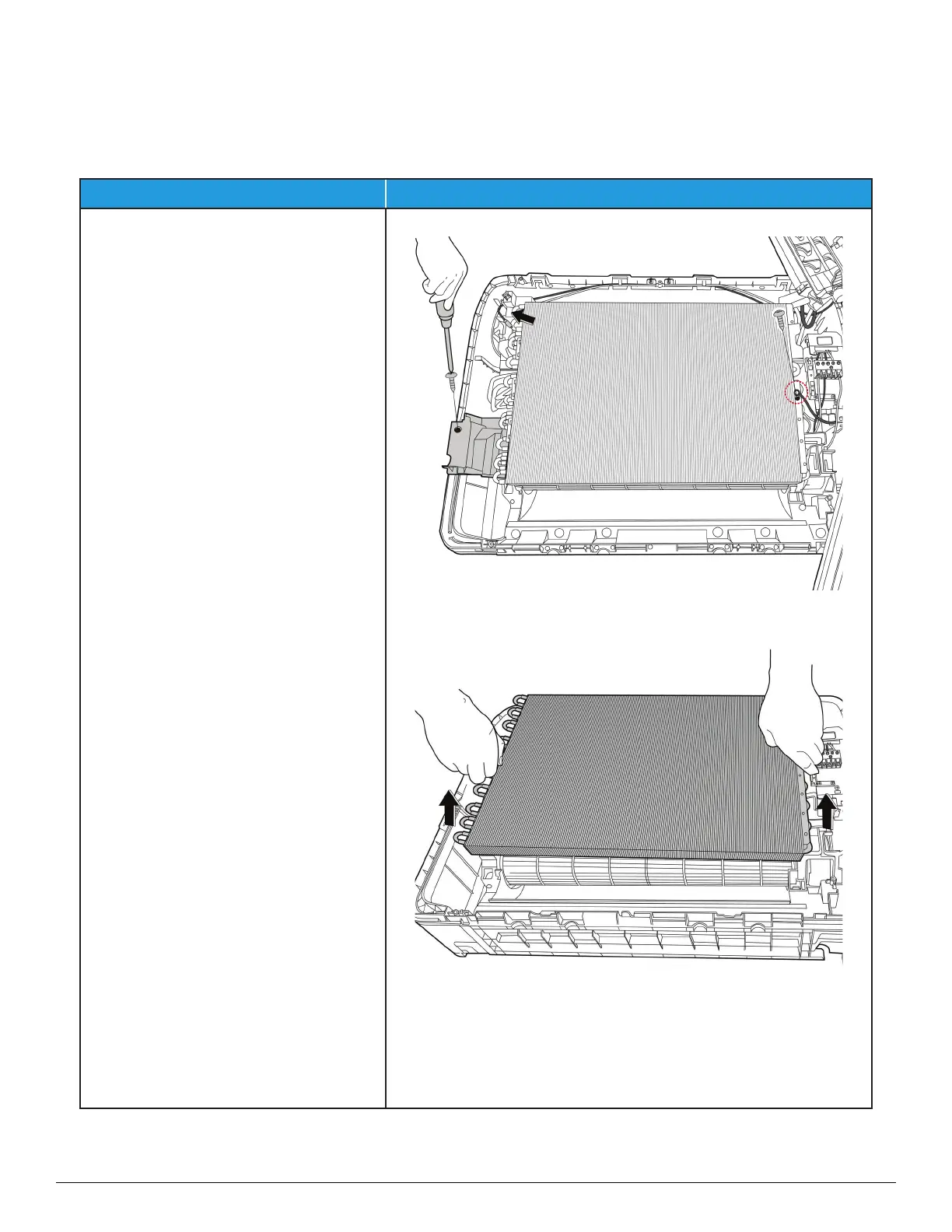

Evaporator
NOTE: Remove the front panel, panel frame subassembly, upper air outlet frame assembly and lower air outlet frame assembly before
disassembling the evaporator.
Procedure Illustration
1) Remove 1 screw then remove the
auxiliary water pan.
Remove one screw used for the ground
connection.
Pull out the coil temperature sensor.
2) Remove the evaporator subassembly.
To Next Page
