Carrier 40MBQB09C-3 User Manual

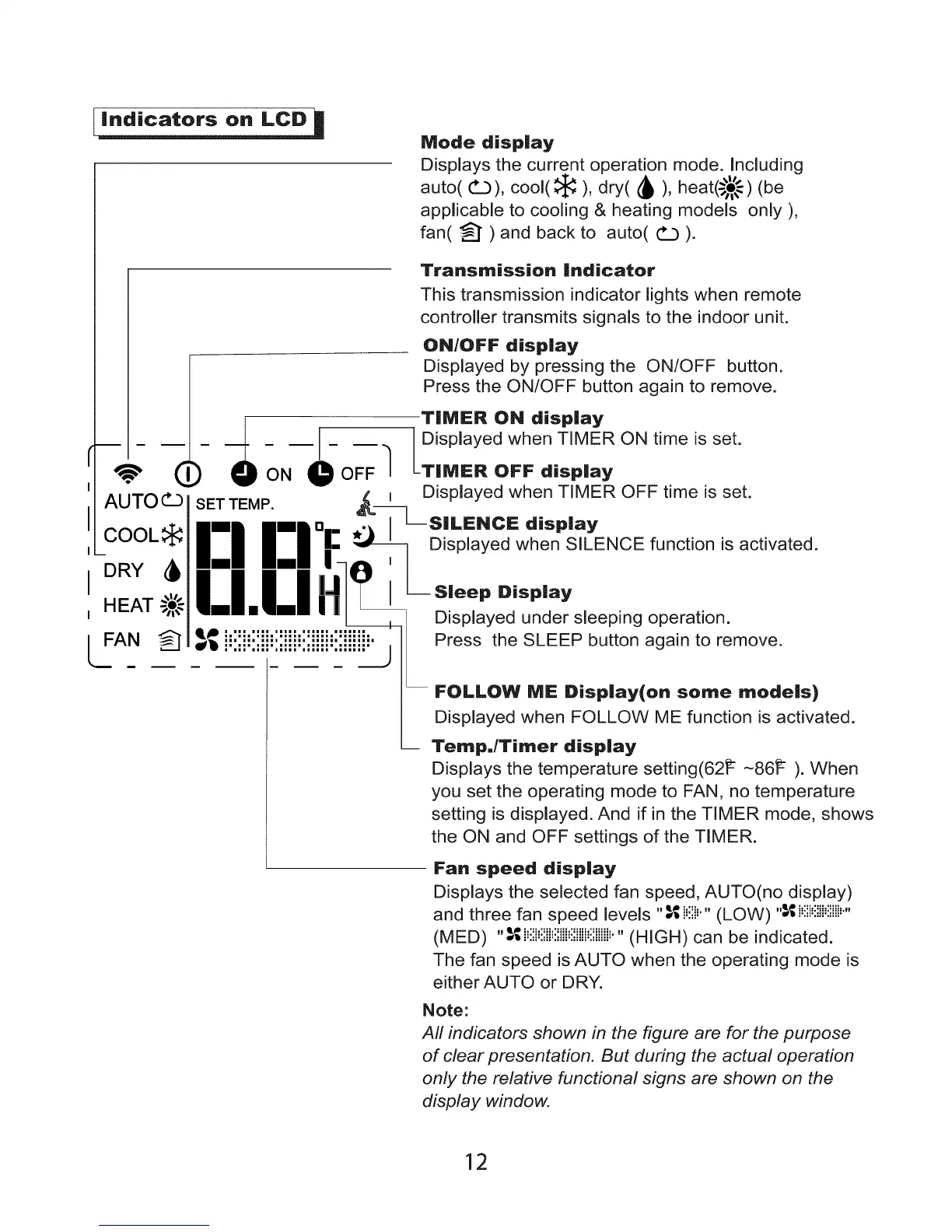

Mode display
Displays the current operation mode. Including
auto(¢_D), cool( :_ ), dry( _ ), _''--
heat(-_'_ ) (be
applicable to cooling & heating models only ),
fan( _ ) and back to auto( O ).
COOL_
i
DRY (_
HEAT -""-"
Transmission indicator
This transmission indicator lights when remote
controller transmits signals to the indoor unit.
ON/OFF display
Displayed by pressing the ON/OFF button.
Press the ON/OFF button again to remove.
/ 1T|MER ON display
Displayed when TIMER ON time is set.
h
ON OFF / LTIIMI::R OFF display
SET TEMP. £ _ Displayed when TIMER OFF time is set.
13I:1
| is activated.
Displayed when SILENCE function
Iml,lml I J LiSleepDispiay
Displayed under sleeping operation.
ID
,,, Press the SLEEP button again to remove.
FOLLOW ME Display(on some models)
Displayed when FOLLOW ME function is activated.
Temp,/Timer display
Displays the temperature setting(62_ -86F ). When
you set the operating mode to FAN, no temperature
setting is displayed. And if in the TIMER mode, shows
the ON and OFF settings of the TIMER.
Fan speed display
Displays the selected fan speed, AUTO(no display)
and three fan speed levels "_; i_i::i_."(LOW),,._; i_!::i_!:ii_!::iii_.,,
(MED) "$;i_i',i_i',ii_i',iii_i',iiii_i',iiiii_."(HIGH)can be indicated.
The fan speed is AUTO when the operating mode is
either AUTO or DRY.
Note:
All indicators shown in the figure are for the purpose
of clear presentation. But during the actual operation
only the relative functional signs are shown on the
display window.
