DIAGNOSIS AND SOLUTION (CONT)
Compressor Checking

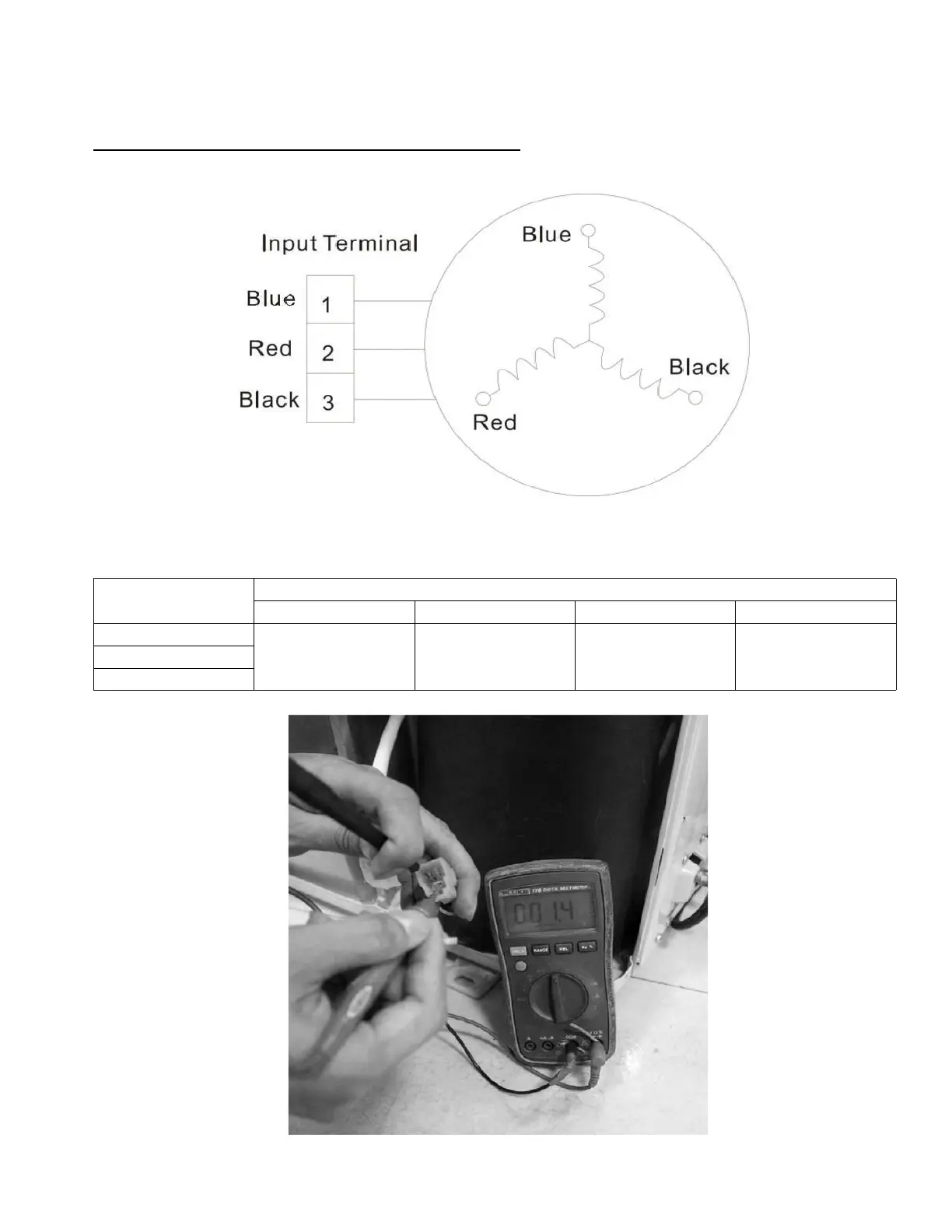

Measure the resistance value of each winding by using the tester.
Fig. 49 — Tester
Table 17 — Compressor Checking
Fig. 50 — Compressor Checking
POSITION
RESISTANCE VALUE
ASN98D22UFZ ASM135D23UFZ ATF235D22UMT ATF250D22UMT
Blue - Red
1.57 Ω 1.75 Ω 0.75 Ω 0.75 ΩBlue - Black
Red - Blue
