Carrier 42 HWS 09 - Dimensions and Weight; Nominal Data

42 HWS
GB - 2

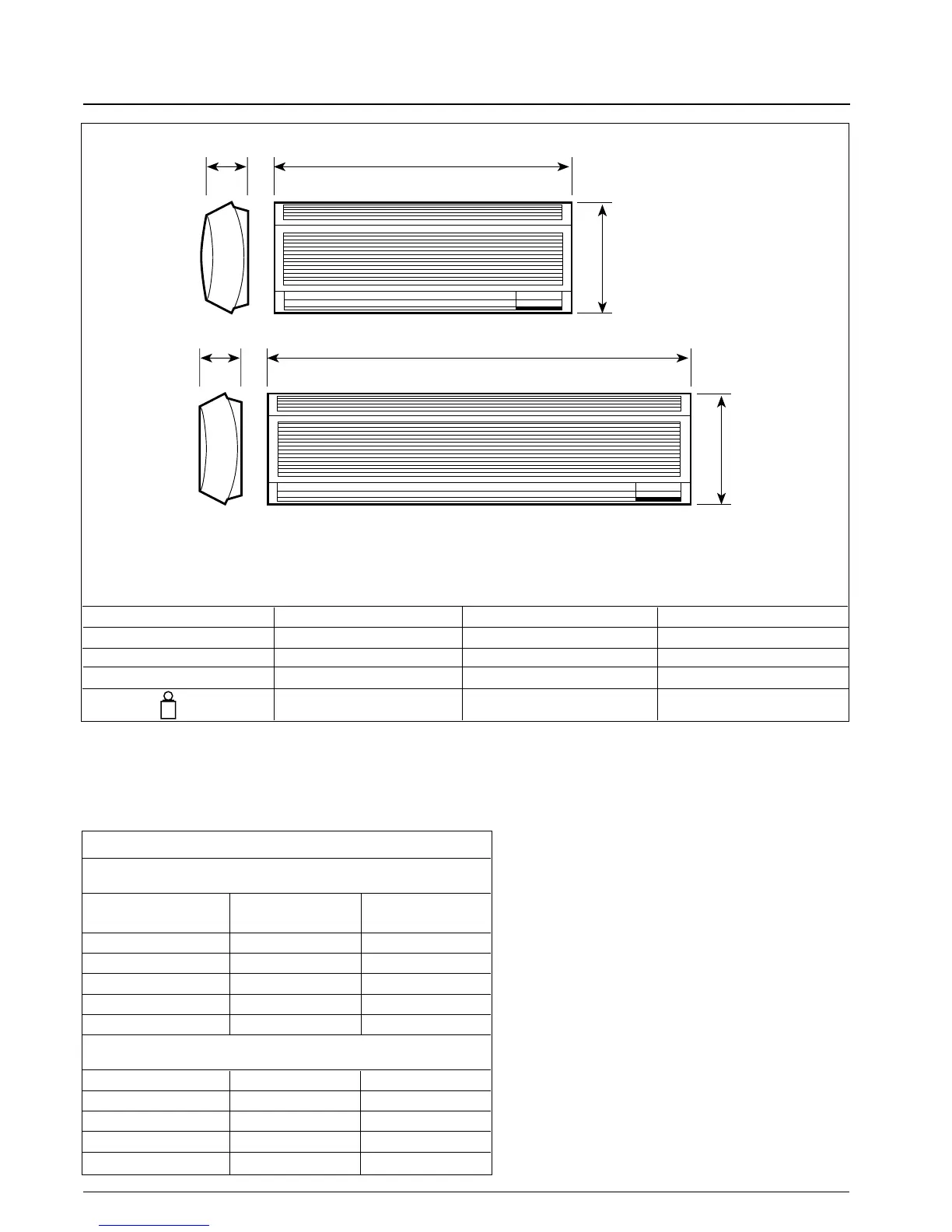

Dimensions and weight
Mod.
A mm
B mm
C mm
kg
kg
07
800
290
145
9.5
09 - 12
800
337
170
10
18 - 24
1150
354
180
15
A
B
C
Mod.
18 - 24
Mod.
07 - 09 - 12
ELECTRIC POWER INPUT
Cooling only unit
Cooling Heating
WW
42HWS007---703IJ-40 37 -
42HWS009---703IJ-40 48 -
42HWS012---703IJ-40 48 -
42HWS018----03IJ-40 60
(1)
-
42HWS024----03IJ-40 85
(1)
-
Heat pump
42HWS007---703IJ-40 37 37
42HWS009---703IJ-40 48 48
42HWS012---703IJ-40 48 48
42HWS018----03IJ-40 60
(1)
60
(1)
42HWS024----03IJ-40 85
(1)
85
(1)
Table I: Nominal data
• Unit is not suitable for operation in laundry premises.
• Sizing of power supply wires and delay type fuses,
refer to the outdoor unit installation instructions.
Note:
(1)
50 and 60 Hz.
