17

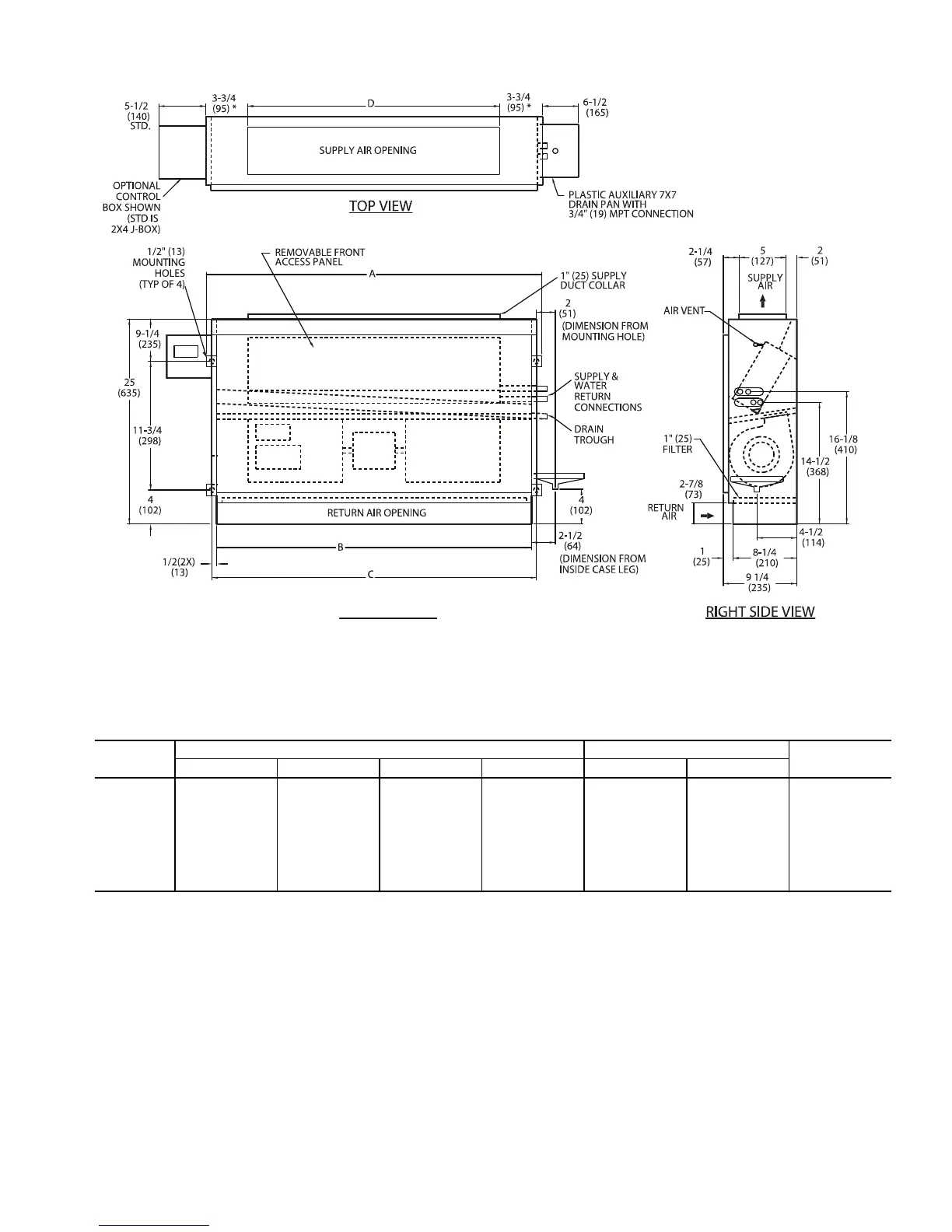

Fig. 13 — 42VA Furred-In Vertical Unit Dimensions
FRONT VIEW
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT
SIZE
DIMENSIONS (in.) QTY/UNIT
UNIT WEIGHT*
(lb)
ABCDBlowerMotor
02 24
3
/
16
22 23 16 1 1 42
03 24
3
/
16
22 23 18 1 1 47
04 34
3
/
16
32 33 26 2 1 57
06 44
3
/
16
42 43 36 2 1 77
08 46
3
/
16
44 45 38 2 1 79
10 60
3
/
16
58 59 52 4 2 108
12 68
3
/
16
66 67 60 4 2 127
NOTES:
1. Right hand unit shown; left hand unit opposite.
2. Dimensions shown in inches (mm). All dimensions are
±
1
/
4
inches.
a42-4381
