Carrier 42QHC024D8S Series Service Manual

5

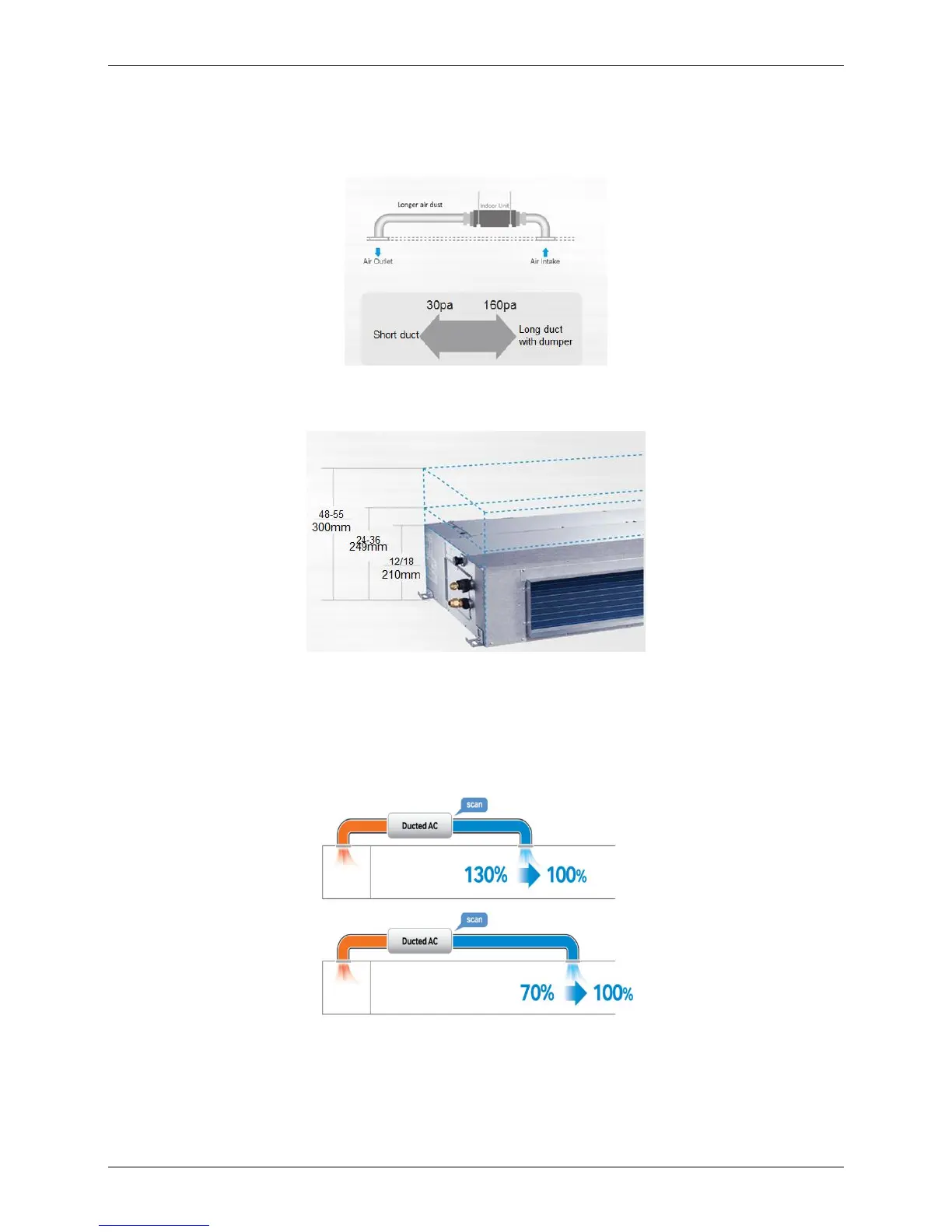

2.2 Ducted
2.2.1 Higher Static Pressure
 As a ducted air conditioner with medium static pressure, it has the widest static pressure range.
 The maximum static pressure reaches 160 Pa
2.2.2 Slim Design
 The industry Lowest height is designed to be fitted into tight roof spaces.
2.2.3 Constant air volume control
 For ordinary duct, when the static pressure exceeds the expected range, it is fairly difficult even for an
experienced installer to calculate and adjust the air volume precisely.
 With constant air volume control technology, the duct will automatically adjusts to perfect static pressure
and keep constant air volume.
2.2.4 Installation accessories: (Optional)
 Canvas Air Passage, Filter, for easy installation

Carrier 42QHC024D8S Series Specifications

General

Brand	Carrier
Model	42QHC024D8S Series
Category	Air Conditioner
Language	English
