Carrier 42QHC024D8S Series Service Manual

6

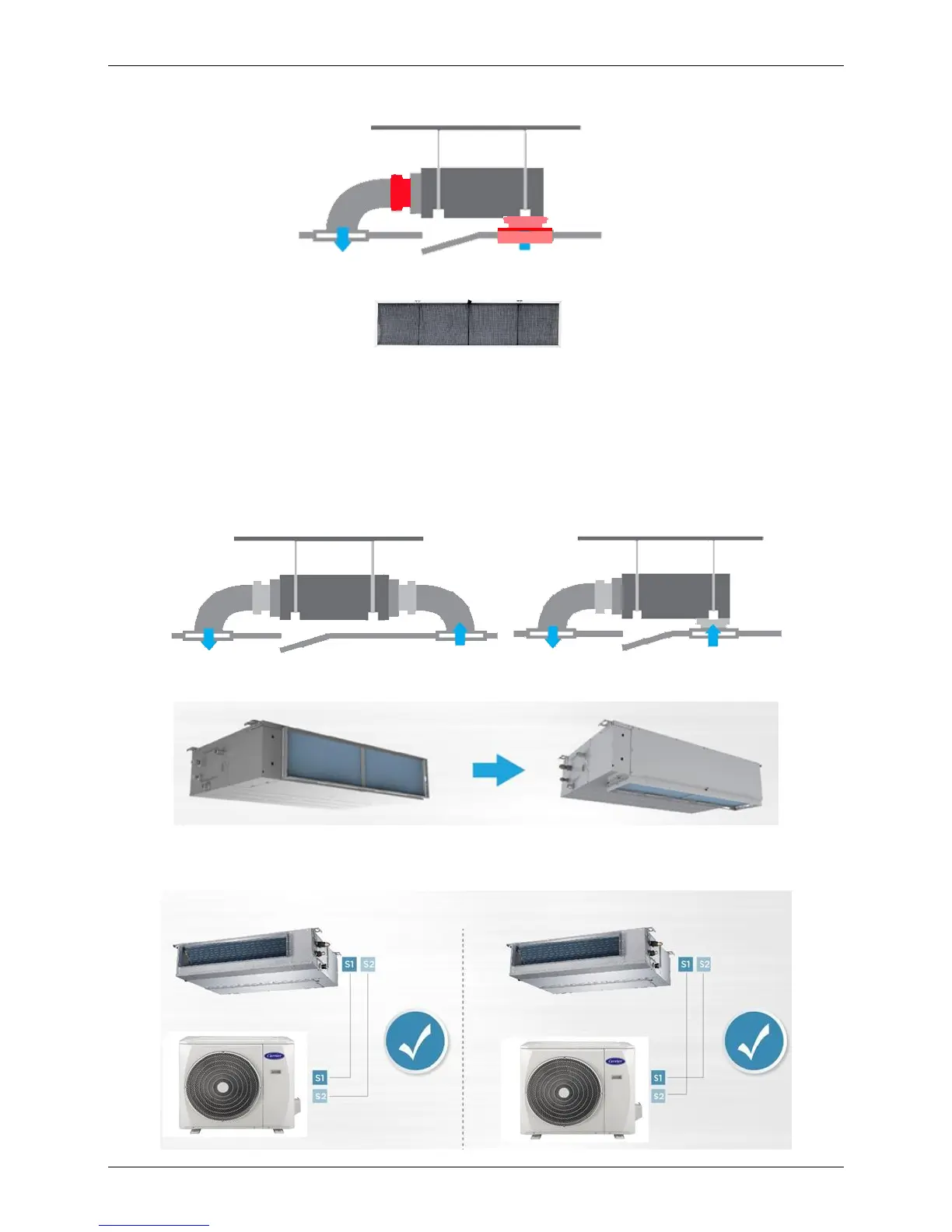

2.2.5 Flexible Air Intake Way (Bottom side or Rear side)
 The frame size of air inlet in rear and bottom is the same. It’s very easy to switch to match different
application.
2.2.6 Communication wire connection
 A6 duct uses two wires without polarity connection way, which almost has no mistake during the
installation.
Air intake from rear (Standard)
Air intake from bottom (Optional)
Filter
