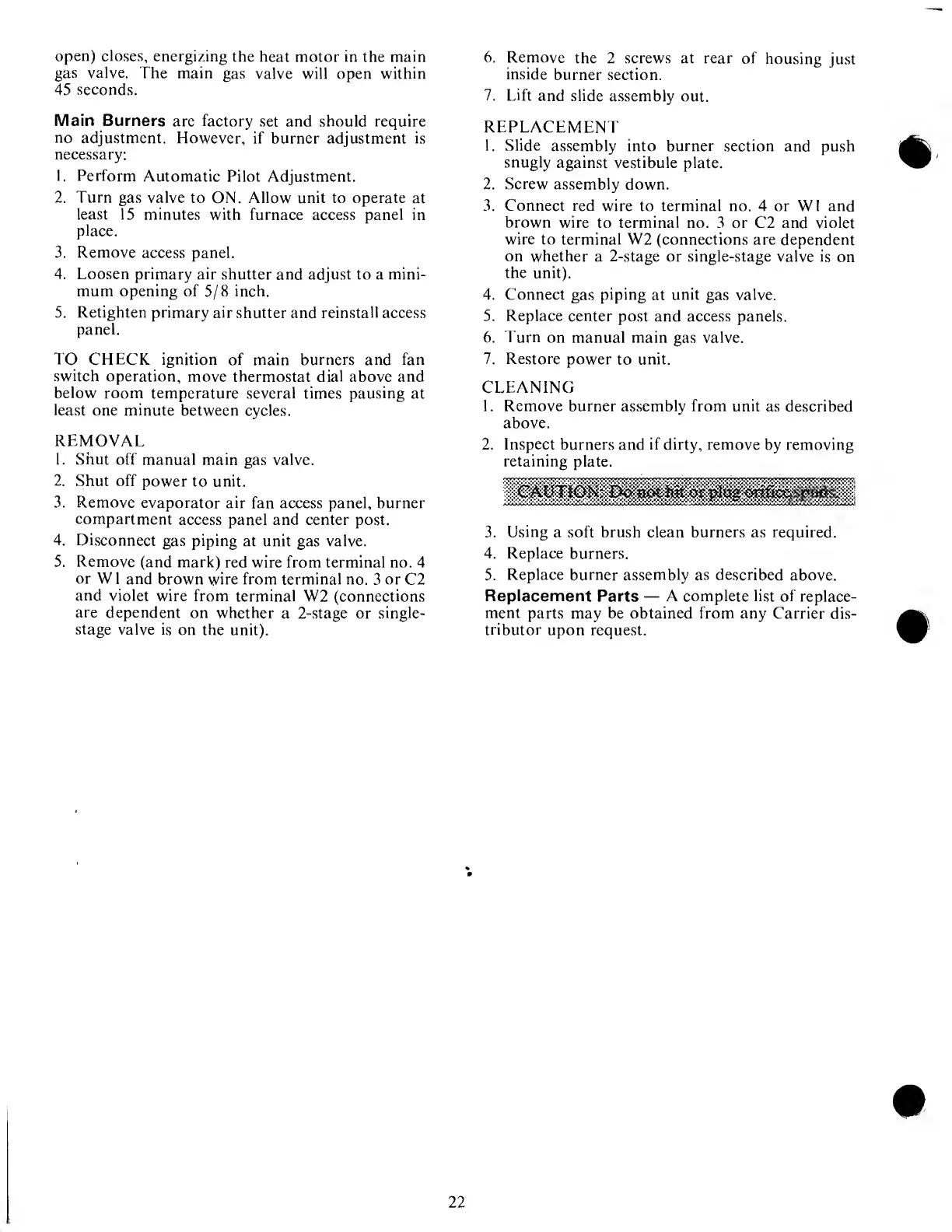

open)
closes,
energizing
the
heat
motor
in
the
main
gas
valve.
The
main
gas
valve
will
open
within
45
seconds.
Main
Burners
are
factory
set
and
should
require
no
adjustment.
However,
if
burner
adjustment
is
necessary:
1.
Perform
Automatic
Pilot
Adjustment.
2.
Turn
gas
valve
to
ON.
Allow
unit
to
operate
at
least
15
minutes
with
furnace
access
panel
in
place.
3.
Remove
access
panel.
4.
Loosen
primary
air
shutter
and
adjust
to
a
mini¬
mum
opening
of
5/8
inch.
5.
Retighten
primary
air
shutter
and
reinstall
access
panel.
TO
CHECK
ignition
of
main
burners
and
fan
switch
operation,
move
thermostat
dial
above
and
below
room
temperature
several
times
pausing
at
least
one
minute
between
cycles.
REMOVAL
1.
Shut
off
manual
main
gas
valve.
2.
Shut
off
power
to
unit.
3.
Remove
evaporator
air
fan
access
panel,
burner
compartment
access
panel
and
center
post.
4.
Disconnect
gas
piping
at
unit
gas
valve.
5.
Remove
(and
mark)
red
wire
from
terminal
no.
4
or
W1
and
brown
wire
from
terminal
no.
3
or
C2
and
violet
wire
from
terminal
W2
(connections
are
dependent
on
whether
a
2-stage
or
single-
stage
valve
is
on
the
unit).
6.
Remove
the
2
screws
at
rear
of
housing
just
inside
burner
section.
7.
Lift
and
slide
assembly
out.
REPLACEMENT
1.
Slide
assembly
into
burner
section
and
push
snugly
against
vestibule
plate.
2.
Screw
assembly
down.
3.
Connect
red
wire
to
terminal
no.
4
or
WI
and
brown
wire
to
terminal
no.
3
or
C2
and
violet
wire
to
terminal
W2
(connections
are
dependent
on
whether
a
2-stage
or
single-stage
valve
is
on
the
unit).
4.
Connect
gas
piping
at
unit
gas
valve.
5.
Replace
center
post
and
access
panels.
6.
Turn
on
manual
main
gas
valve.
7.
Restore
power
to
unit.
CLEANING
1.
Remove
burner
assembly
from
unit
as
described
above.
2.
Inspect
burners
and
if
dirty,
remove
by
removing
retaining
plate.
3.
Using
a
soft
brush
clean
burners
as
required.
4.
Replace
burners.
5.
Replace
burner
assembly
as
described
above.
Replacement
Parts
A
complete
list
of
replace¬
ment
parts
may
be
obtained
from
any
Carrier
dis¬
tributor
upon
request.
22
