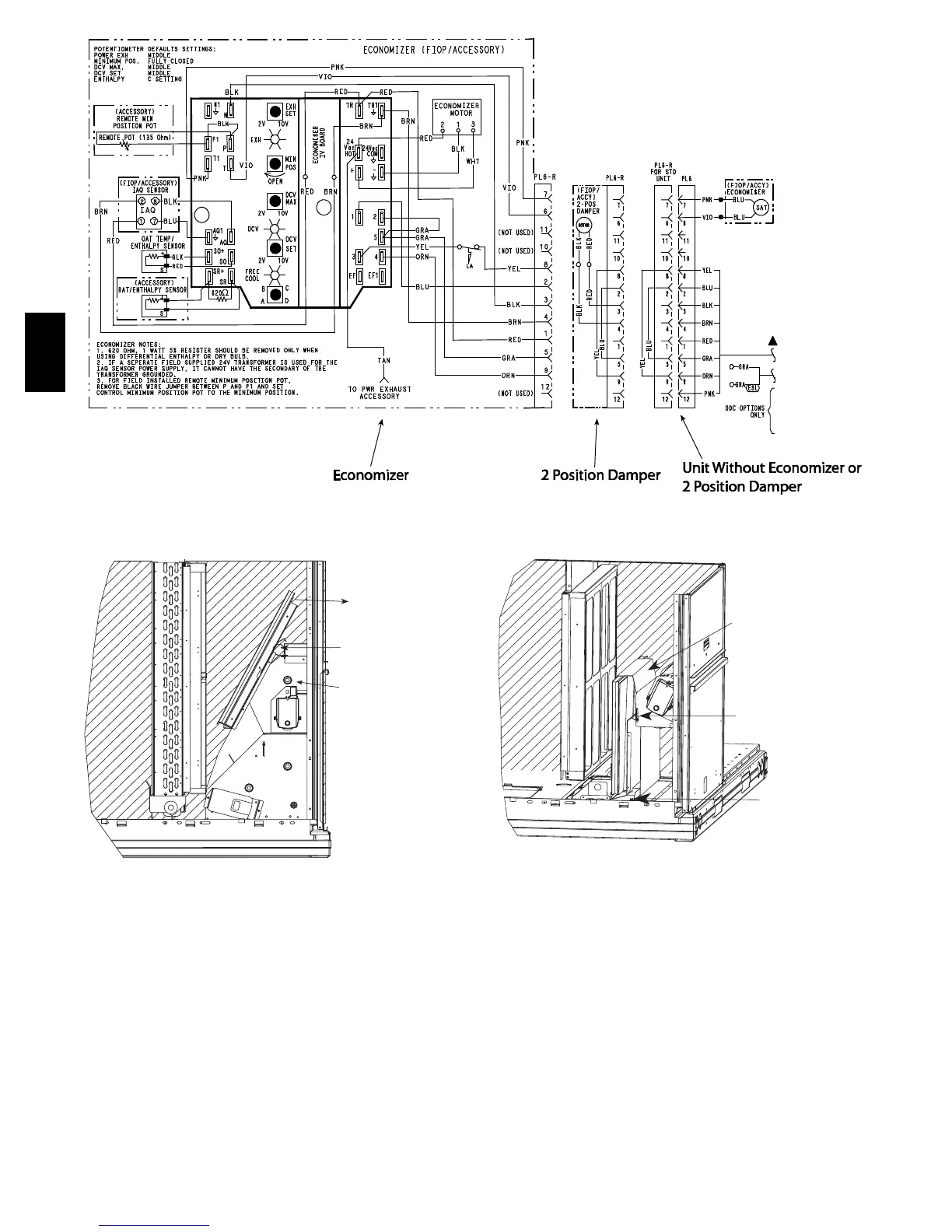

Fig. 8 -- Economizer Wiring
Economizer
Cut Plastic Ties
(2) Places
Remove Hood Parts
C08633
Fig. 9 -- Economizer Hood Removal
Hood Parts
Plastic Tie Wrap
Qty (2)
Screws for Metal Tray
Qty (2)
C08639
Fig. 10 -- Damper Assembly
CO
2
Sensor -- Factory Option
1. CO
2
sensor is now a factory option and must be
used with an economizer.
2. The CO
2
sensor is located on the lower side of the
economizer. (See Fig. 11.)
3. If additional installation and operating instructions
are required for the CO
2
sensor, please reference in-
stallation instruction 48/50H,P--20SI.
