Attach gaskets to vent pipe and
combustion air adapters.

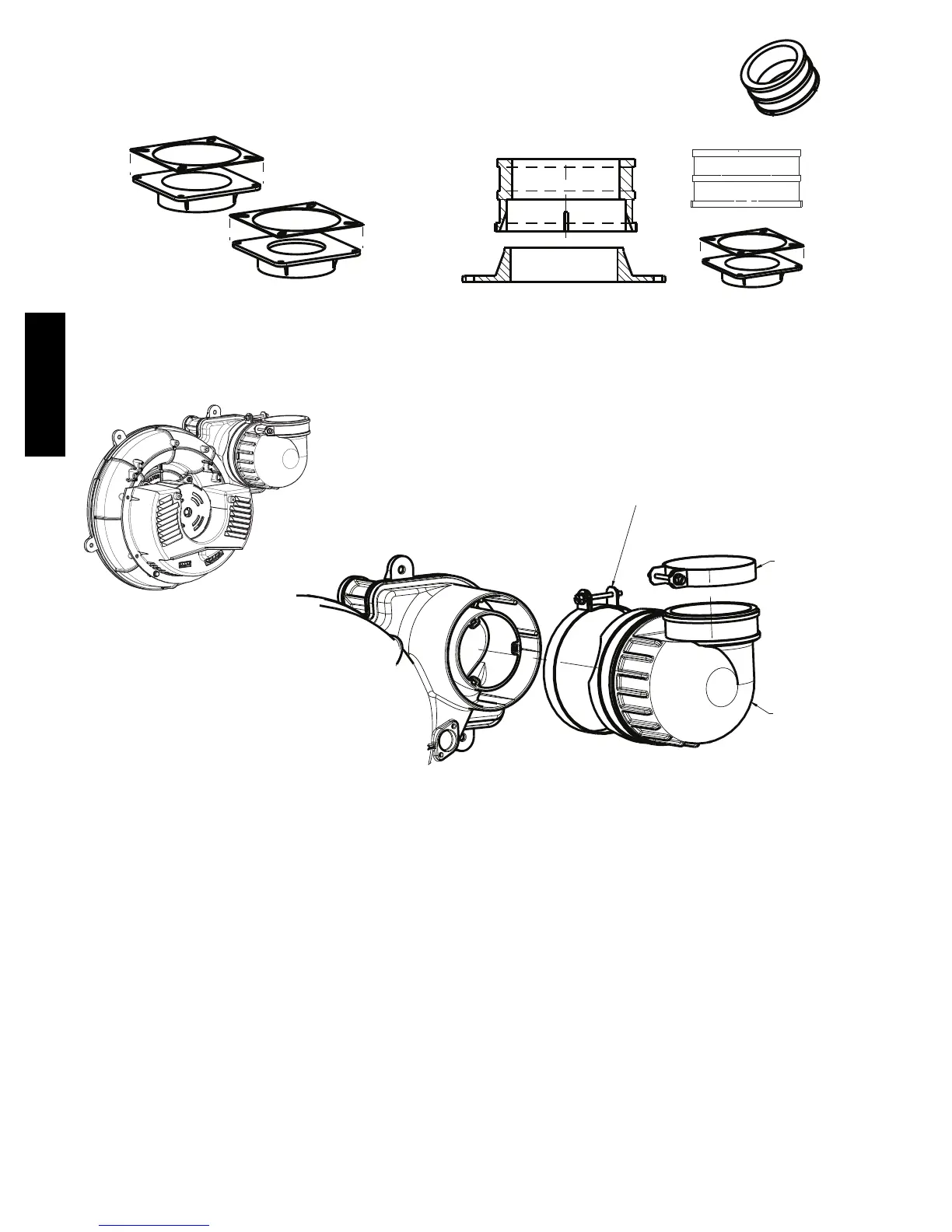

Vent Coupling and Adapter
A11314
Fig. 36 -- Vent Coupling and Adapter with Gaskets
MODULATING INDUCER ASSEMBLY
INDUCER OUTLET
VENT ELBOW CLAMP
TORQUE 15 LB-IN.
VENT ELBOW
VENT PIPE CLAMP
TORQUE 15 LB-IN.
A11286
Fig. 37 -- Inducer Vent Elbow
(Appearance May Vary)
