56
HORIZONTAL RIGHT -
VERTICAL VENT CONFIGURATION
HORIZONTAL RIGHT -
LEFT VENT CONFIGURATION*
*Requires Internal Vent Kit
See Product Data for Current Kit Number
HORIZONTAL RIGHT -
RIGHT VENT CONFIGURATION
Attach vent pipe adapter with gasket to furnace casing.
Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
Slide vent pipe through adapter and coupling into vent elbow.
Insert vent pipe into vent elbow.
Torque all clamps 15 lb.-in.
Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.
1
2
3
4
5
6
7
Attach combustion air pipe adapter with gasket to furnace.
A11341

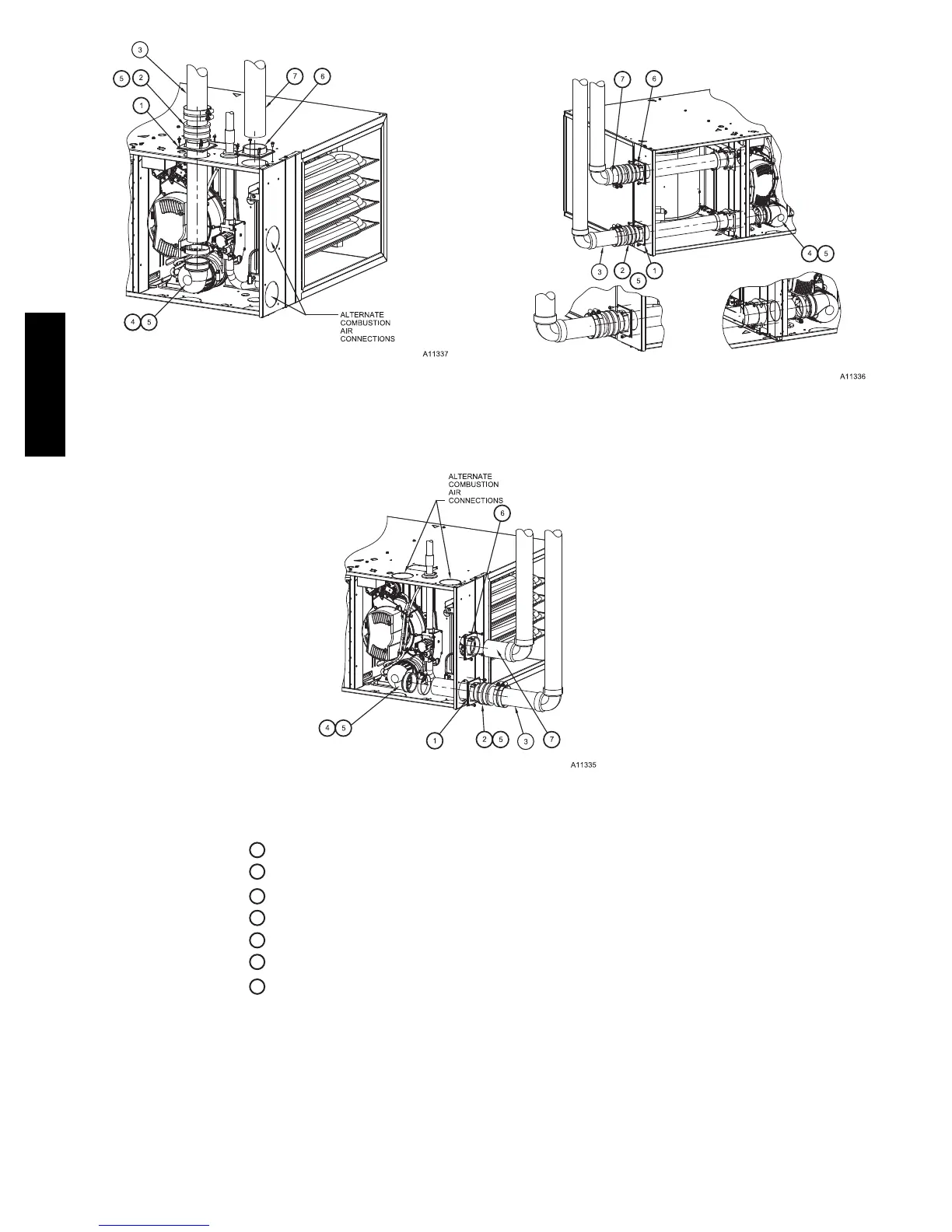

Fig. 41 -- Horizontal Right
(Appearance May Vary)
59MN7A
