29
ANY COMBINATION OF 1, 2, OR 3 PERMITTED.
A11036

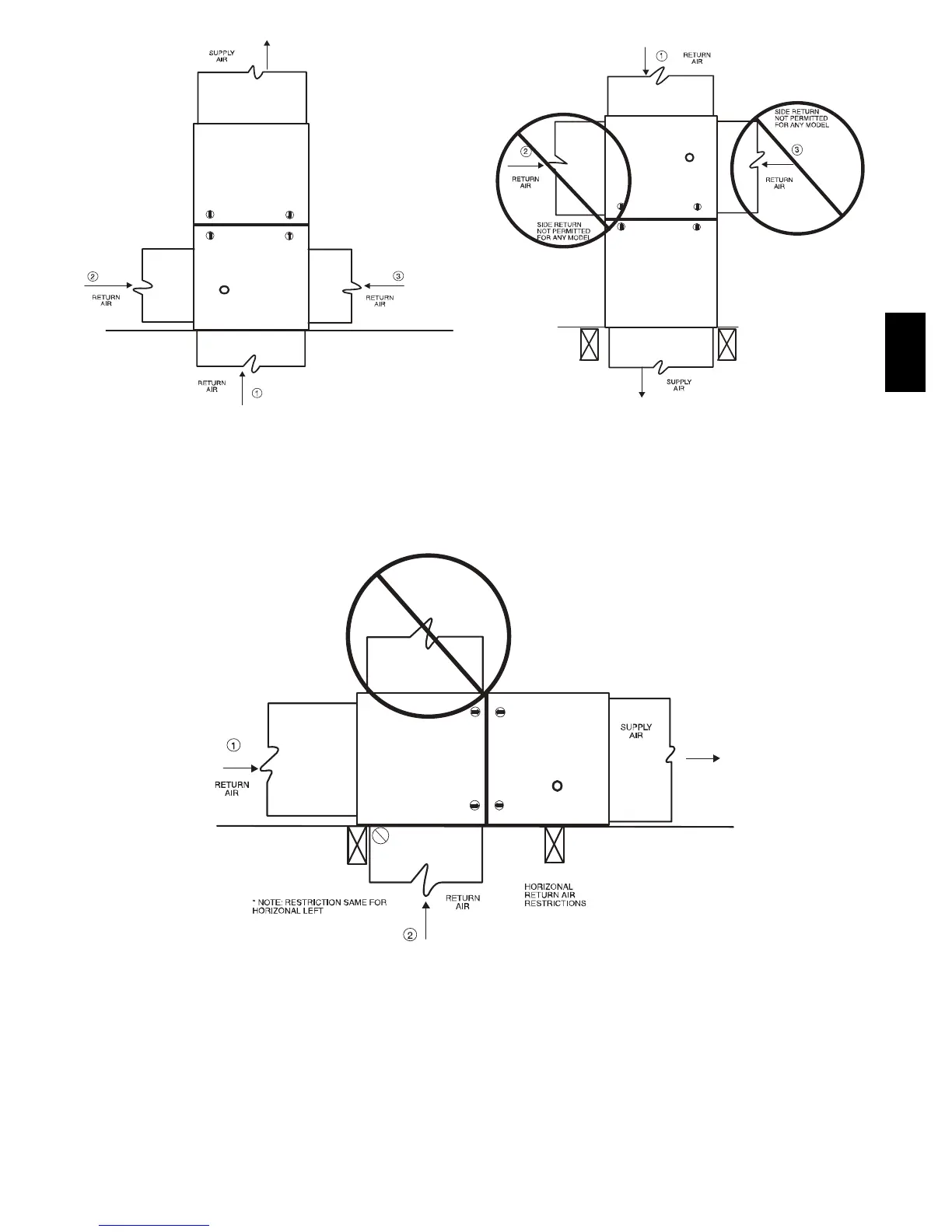

Fig. 26 -- Upflow Return Air Configurations and Restrictions
A11037
Fig. 27 -- Downflow Return Air Configurations and
Restrictions
HORIZONTAL TOP
RETURN NOT
PERMITTED FOR
ANY MODEL
A11038
Fig. 28 -- Horizontal Right Return Air Configurations and Restrictions
59SC2C
