THE BLOWER IS LOCATED

TO THE RIGHT OF THE

BURNER SECTION, AND

CONDITIONED AIR IS

DISCHARGED TO THE LEFT.

THE BLOWER IS

LOCATED BELOW THE

BURNER SECTION, AND

CONDITIONED AIR IS

DISCHARGED UPWARD.

THE BLOWER IS

LOCATED ABOVE THE

BURNER SECTION, AND

CONDITIONED AIR IS

DISCHARGED DOWNWARD

THE BLOWER IS

LOCATED TO THE LEFT

OF THE BURNER SECTION,

AND CONDITIONED AIR IS

DISCHARGED TO THE RIGHT.

A12181

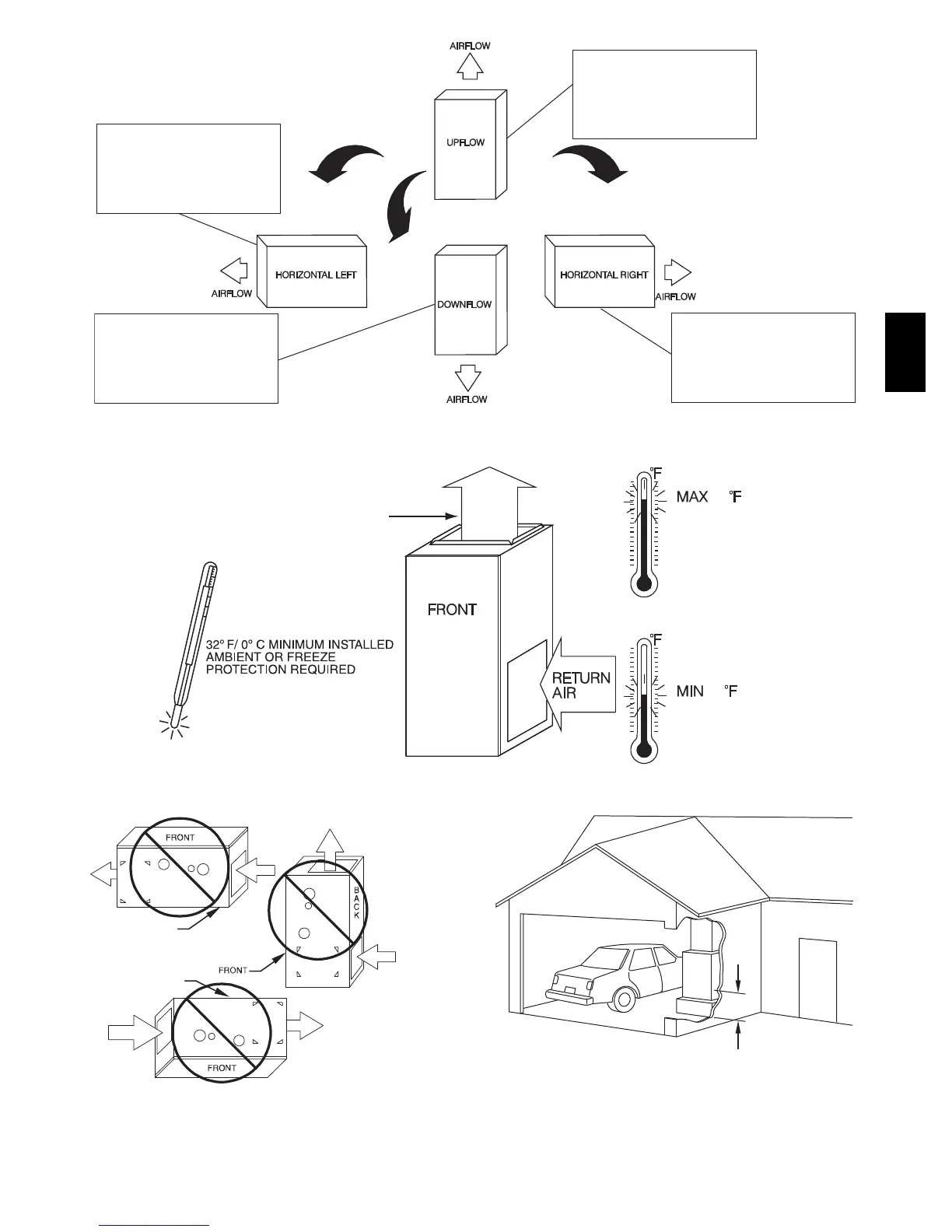

Fig. 2 -- Multipoise Orientations

80 / 27˚C

/ 16˚C

SUPPLY AIR

A10490

Fig. 3 -- Freeze Protection and Return Air Temperature

BACK POSITIONED

DOWNWARD

AIR RETURN

CUT IN BACK

BACK POSITIONED

UPWARD

A12182

Fig. 4 -- Prohibited Installations

18-IN. (457.2 mm)

MINIMUM TO BURNERS

A93044

Fig. 5 -- Installation in a Garage

59SC2C
