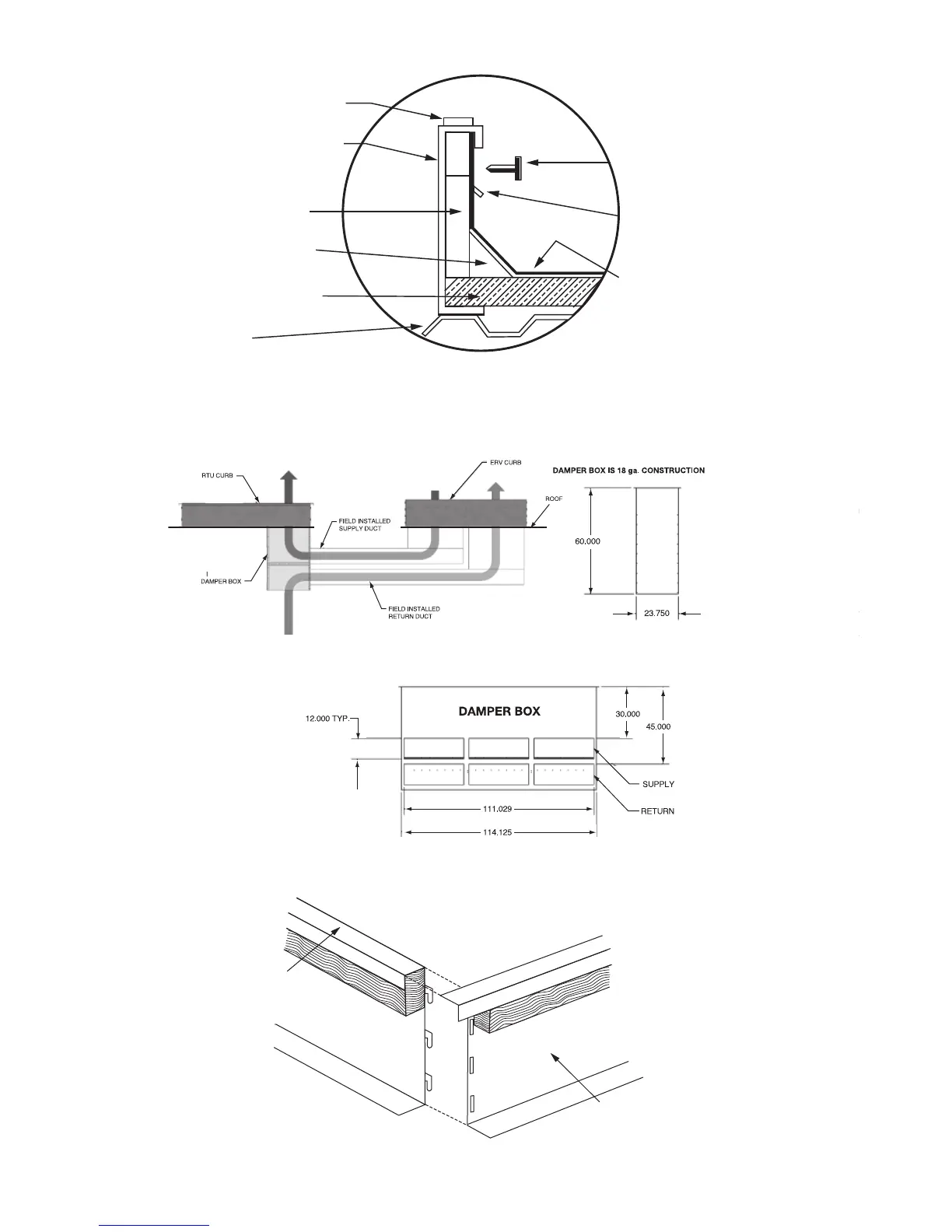

Fig. 5 — Typical Installation with Drop-in Damper Box
*Field provided.
Fig. 4 — Roofing Materials — Recommendation
END
SIDE
Fig. 6 — Assembling the Roof Curb
A62-246ef
NOTE: All dimensions shown in inches.
a62-376.eps
NAIL*
FLASHING*
ROOF FELT*
ROOF*
ROOF DECK*
CANT STRIP*
RIGID
INSULATION*
GASKETING
ROOF CURB
A62-247ef
