62E UNIT
TYPE
DIMENSIONS (in.)
ABCDEFGH I J
B 31.138 36.000 36.000 37.645 34.559 5.850 5.757 35.076 24.971 11.801
C 38.625 18.000 36.000 45.183 42.078 8.916 14.239 43.875 32.471 15.485
D 44.425 18.000 45.000 45.043 41.938 8.916 14.239 49.675 38.271 18.260
E 54.625 20.000 55.000 53.562 50.458 11.677 19.165 59.875 48.495 22.997
H 67.045 20.000 65.000 59.022 55.918 11.677 25.164 72.294 60.915 29.207
K 77.625 27.000 75.000 64.972 61.868 11.677 25.164 82.875 71.495 34.247
a62-330

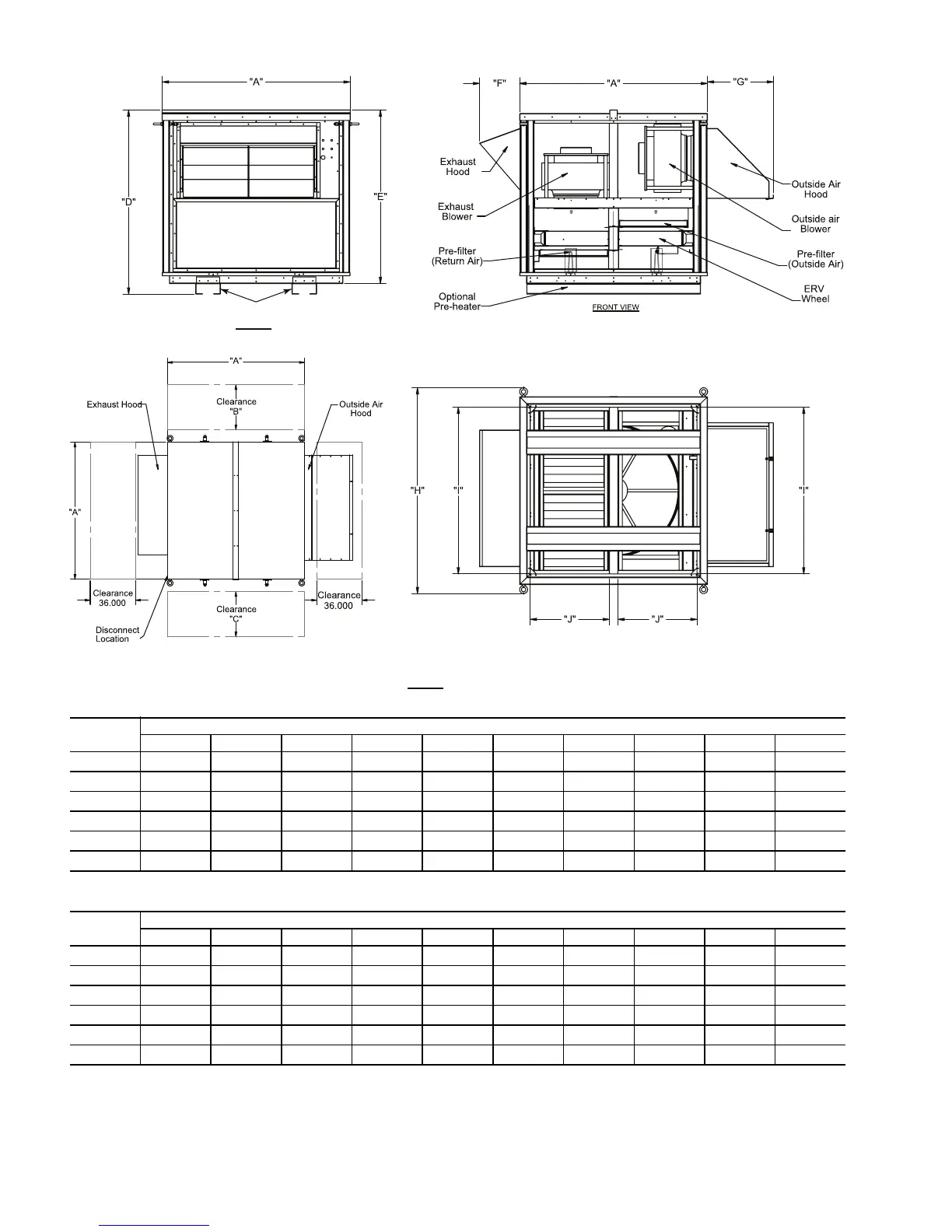

Fig. 2 — 62EB-62EK Vertical Unit Cabinet Dimensions
NOTES:
1. Clearance above cabinet is 24 inches (610 mm).
2. All dimensions shown in inches.
62E UNIT
TYPE
DIMENSIONS (mm)
ABCDEFGH I J
B 791 914 914 956 878 149 146 891 634 300
C 981 457 914 1148 1069 226 362 1114 825 393
D 1128 457 1143 1144 1065 226 362 1262 972 464
E 1387 508 1397 1360 1282 297 487 1521 1232 584
H 1703 508 1651 1499 1420 297 639 1836 1547 742
K 1972 686 1905 1650 1571 297 639 2105 1816 870
