6--13
T--30404/08
HPS -- HIGH PRESSURE SWITCH
HSV -- HEATING SOLENOID VALVE
LPS -- LOW PRESSURE SWITCH
WP -- WATER PUMP
UPS1 -- UNLOADER PRESSURE SWITCH #1
UPS2 -- UNLOADER PRESSURE SWITCH #2
UPS3 -- UNLOADER PRESSURE SWITCH #3
UV1 -- UNLOADER VALVE #1
UV2 -- UNLOADER VALVE #2
LEGEND
1
X3 PLUG
X4 PLUG
AC--310/350 ELECTRICAL PANEL 24 V
(FROM)
(FROM)
(FROM)
100 Amp 24 VDC AC310
125 Amp 24 VDC AC 350
05G -- 05K OPTION
SUTRAC PT.# 60--01--28--126
SCHEMATIC 65-- 01-- 28--056--01--3

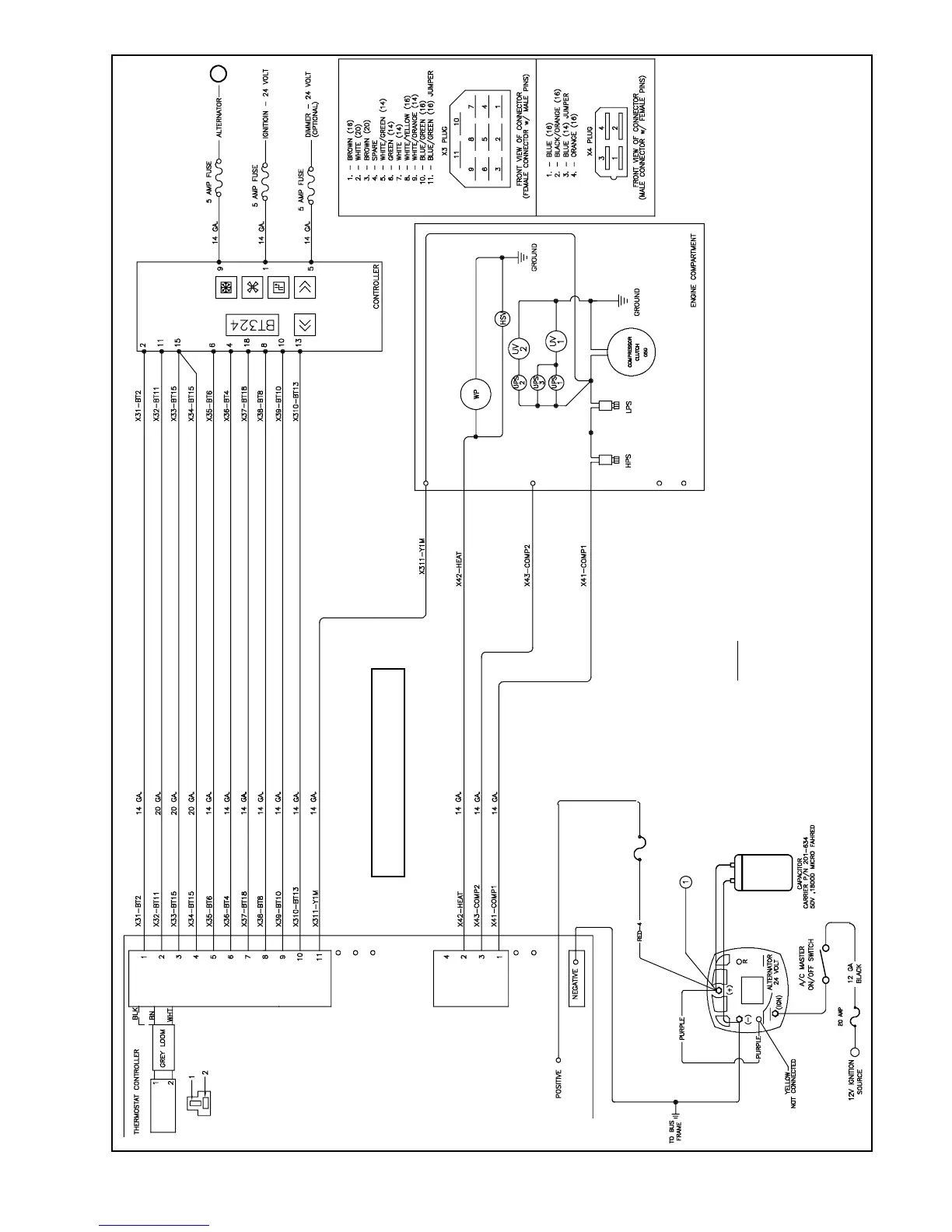

Figure 6--12 CSDD BT324 Control Circuit
To Next Page
