Carrier Comfort 59SC5B User Manual

59SC5B: Product Data
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
10

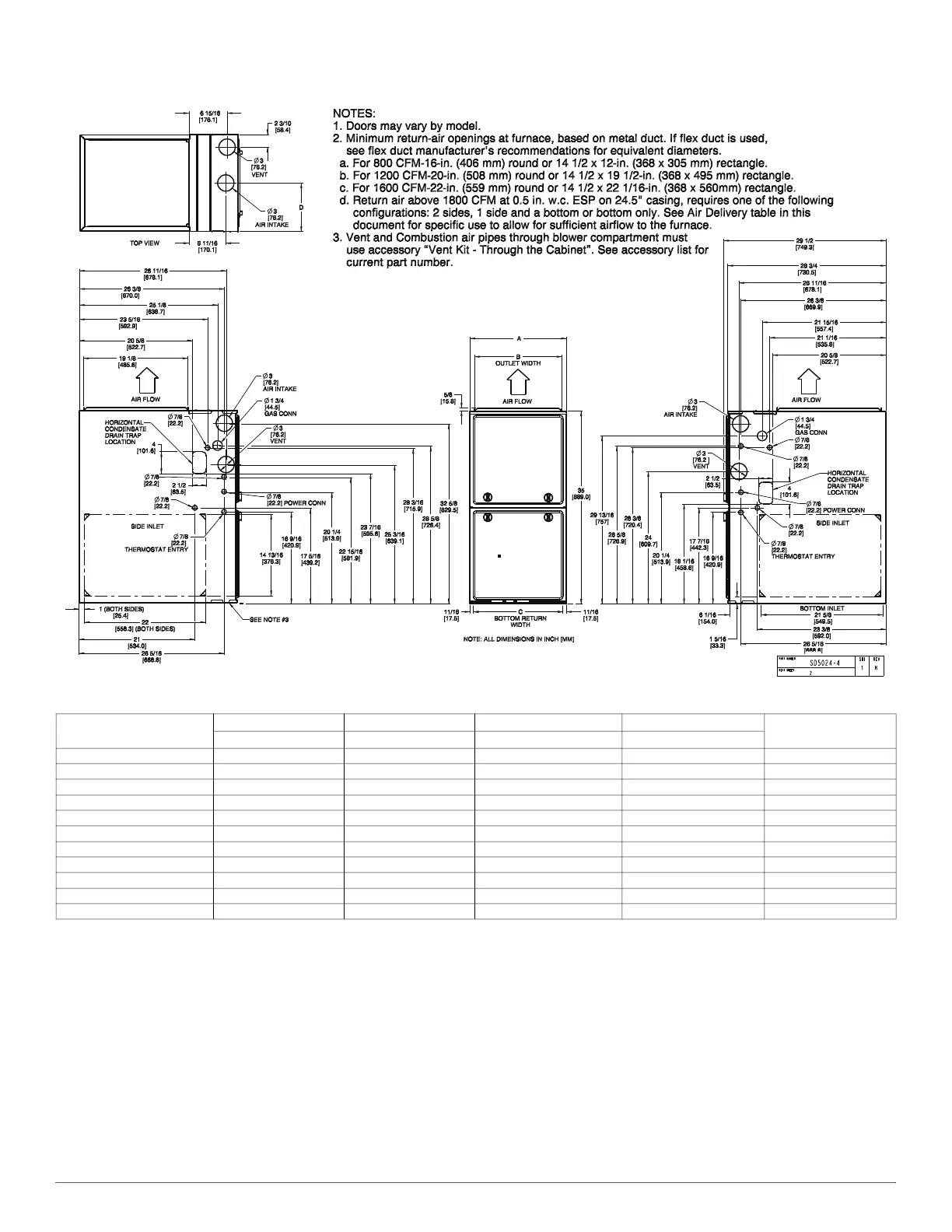

DIMENSIONAL DRAWING
A180203
FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE
026E14--10 143/16 (361) 121/2 (319) 129/16 (322) 71/8 (181) 118.0 (53.5)
040E14--10 143/16 (361) 121/2 (319) 129/16 (322) 71/8 (181) 120 (54.4)
040E17--12 171/2 (445) 157/8 (403) 16 (406) 83/4 (222) 126.5 (57.4)
060E14--12 143/16 (361) 121/2 (319) 129/16 (322) 71/8 (181) 129 (58.5)
060E17--14 171/2 (445) 157/8 (403) 16 (406) 83/4 (222) 138.5 (62.8)
080E17--16 171/2 (445) 157/8 (403) 16 (406) 83/4 (222) 146.5 (66.5)
080E21--20 21 (533) 193/8 (492) 191/2 (495) 101/2 (267) 154.5 (70.1)
100E21--20 21 (533) 193/8 (492) 191/2 (495) 101/2 (267) 164.5 (74.6)
100E21--22 21 (533) 193/8 (492) 191/2 (495) 101/2 (267) 164.5 (74.6)
120E24--22 241/2 (622) 227/8 (581) 23 (584) 121/4 (311) 179.5 (81.4)
140E24--22 241/2 (622) 227/8 (581) 23 (584) 121/4 (311) 189 (85.7)

Carrier Comfort 59SC5B Specifications

General

Model	59SC5B
Category	Furnace
Heating Stages	Single-stage
Fuel Type	Natural Gas
Ignition System	Hot Surface Ignition
Vent Type	Non-Direct Vent
Ignition Type	Hot Surface Ignition
Heat Exchanger Material	Aluminized Steel
Heating Input BTUs	40, 000 - 120, 000
Warranty	10-year parts limited warranty
