Carrier Ecologic 30GX080-265 - APPENDIX E - Pressure Drop Charts; 30 HX Cooler Pressure Drop Data

APPENDIX E
The following charts list pressure drops for coolers and condensers.
076, 086
116, 126
136, 146
161, 171
246-271
096
106
186
206
100
10
1
100
1000
COOLER FLOW RATE (GPM)
PRESSURE DROP (FT WG)

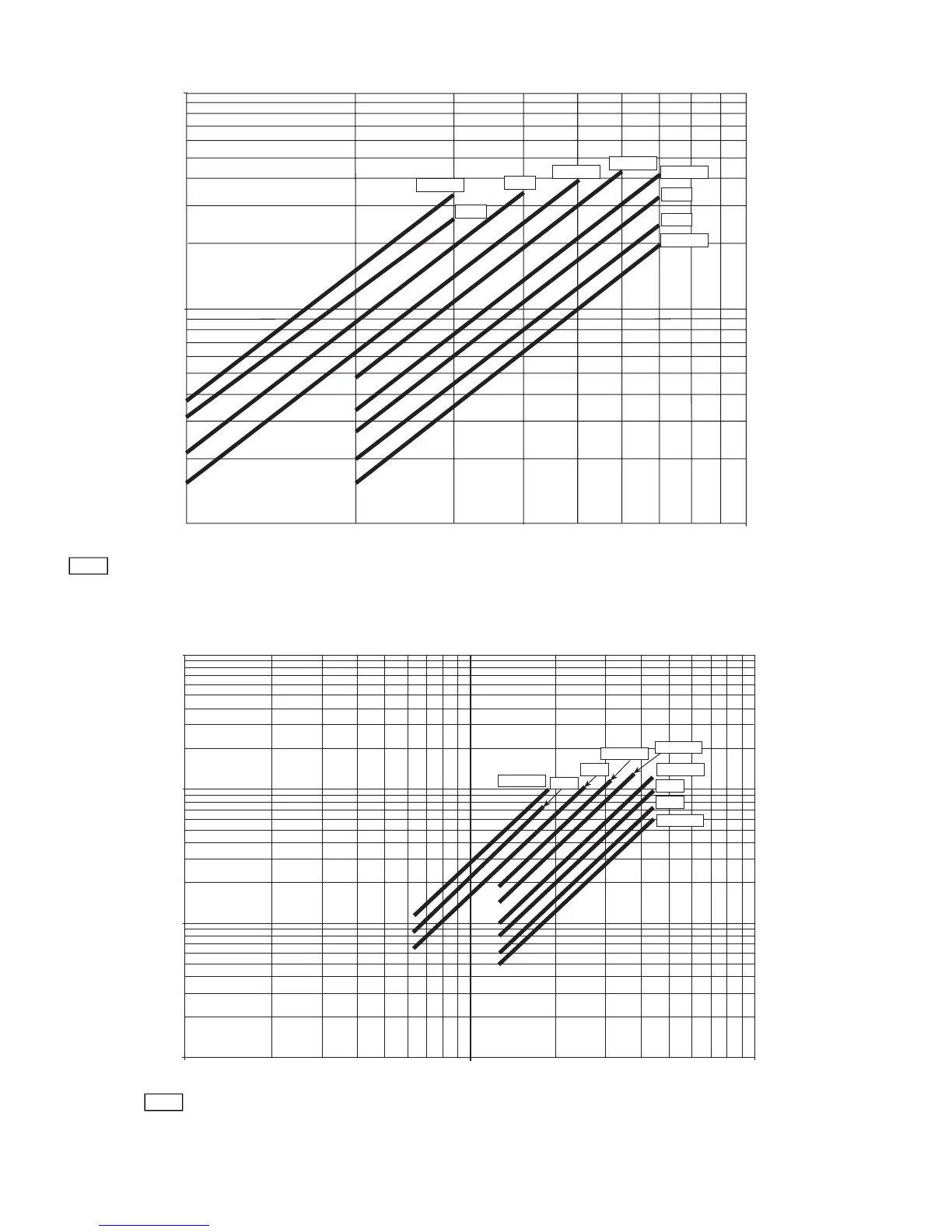

30HX COOLER PRESSURE DROP — ENGLISH
Unit Size Range
NOTE: Ft of water = 2.31 x change in psig.
076, 086
096
106
116, 126
136, 146
161, 171
186
206
246-271
1000
100
10
1
1
10
100
COOLER FLOW RATE (L/S)
PRESSURE DROP (KPA)
30HX COOLER PRESSURE DROP — SI
Unit Size Range
