Carrier FED003610 - 20 kW Wiring Diagram

© 2022 Carrier. All rights reserved.
A Carrier Company
Edition Date: 11/22
Catalog No: IM-FED-02
Replaces: 496 01 5504 01
FED “B” Series: Installation Instructions & Homeowner’s Information
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
10
A190050D

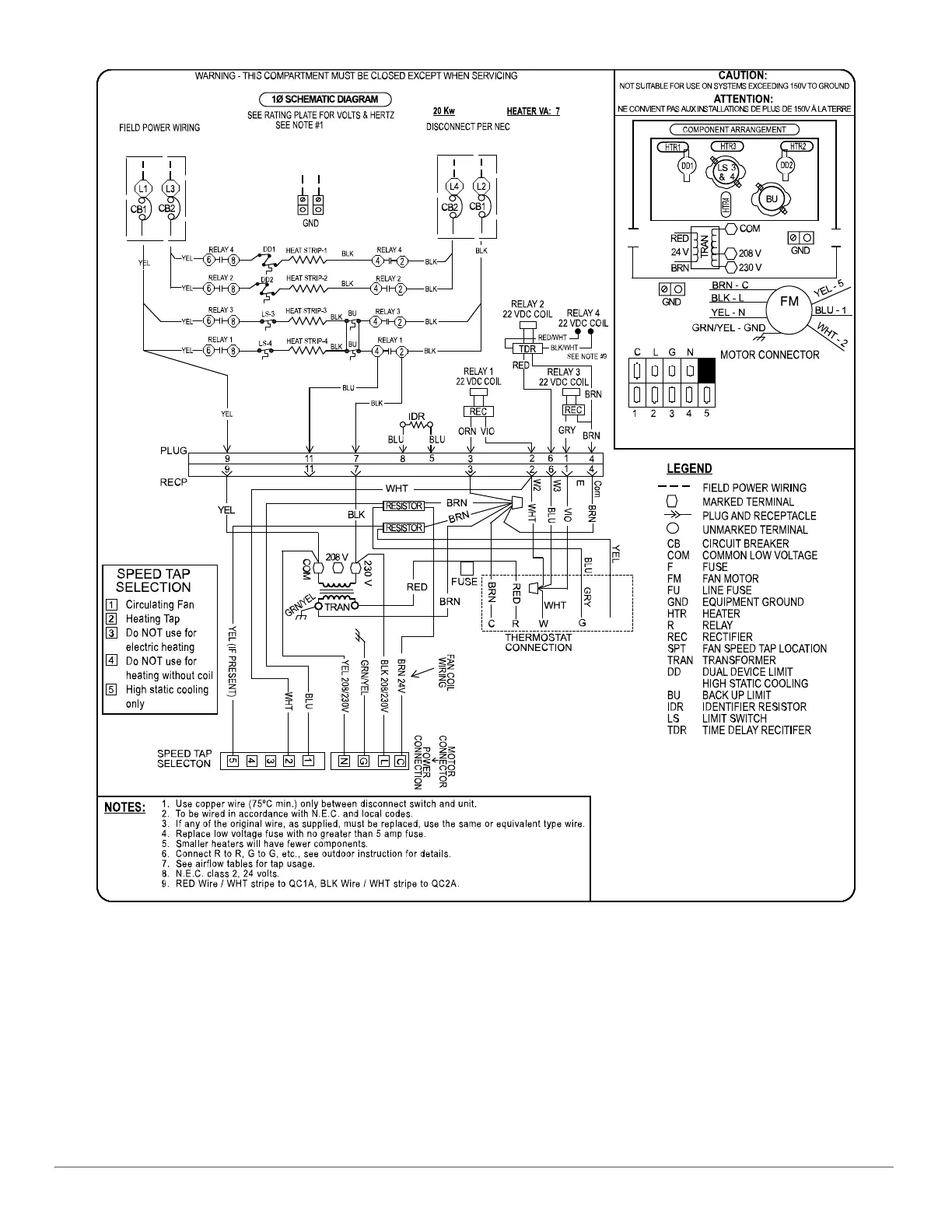

Fig. 14 – 20 kW Wiring Diagram
