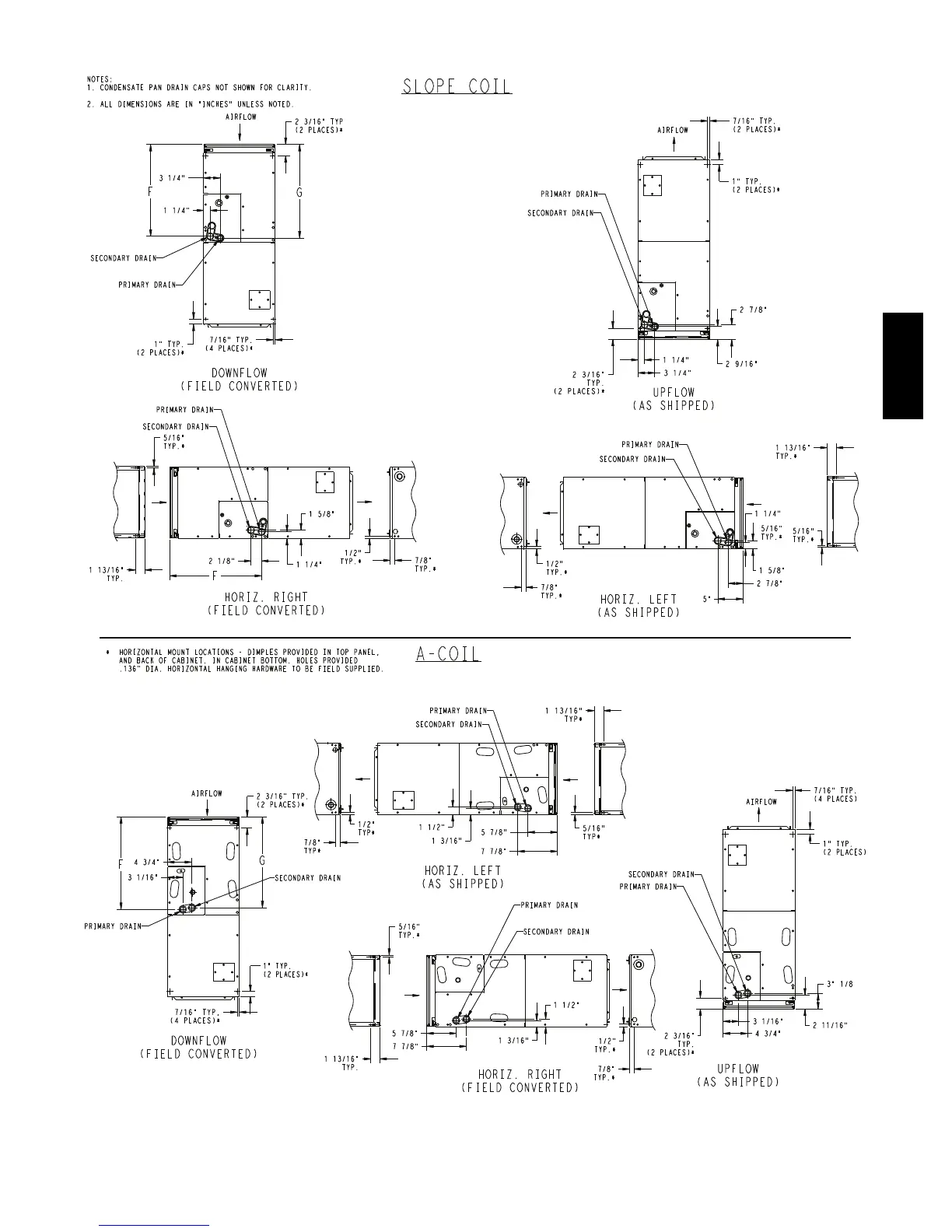

DIMENSIONS (cont.)
A-COIL
NOTES:
1. CONDENSATE PAN DRAIN CAPS NOT SHOWN FOR CLARITY.
2. ALL DIMENSIONS ARE IN "INCHES" UNLESS NOTED.
* HORIZONTAL MOUNT LOCATIONS - DIMPLES PROVIDED IN TOP PANEL,
AND BACK OF CABINET. IN CABINET BOTTOM. HOLES PROVIDED
SLOPE COIL
3 1/4"
2 9/16"
2 7/8"
2 3/16"
TYP.
(2 PLACES)*
7/16" TYP.
(2 PLACES)*
1" TYP.
(2 PLACES)*
1 1/4"
AIRFLOW
SECONDARY DRAIN
PRIMARY DRAIN
UPFLOW
(AS SHIPPED)
7/8"
TYP.*
1/2"
TYP.*
2 1/8"
1 5/8"
F
1 1/4"
PRIMARY DRAIN
SECONDARY DRAIN
HORIZ. RIGHT
(FIELD CONVERTED)
1 1/4"
3 1/4"
1" TYP.
(2 PLACES)*
7/16" TYP.
(4 PLACES)*
2 3/16" TYP.
(2 PLACES)*
G
F
AIRFLOW
SECONDARY DRAIN
PRIMARY DRAIN
DOWNFLOW
(FIELD CONVERTED)
1 13/16"
TYP.*
5/16"
TYP.*
1 5/8"
5/16"
TYP.*
7/8"
TYP.*
2 7/8"
5"
1 1/4"
1/2"
TYP.*
SECONDARY DRAIN
PRIMARY DRAIN
HORIZ. LEFT
(AS SHIPPED)
1 13/16"
TYP.
5/16"
TYP.*
1" TYP.
(2 PLACES)*
7/16" TYP,
(4 PLACES)*
4 3/4"
3 1/16"
F
2 3/16" TYP.
(2 PLACES)*
G
AIRFLOW
DOWNFLOW
(FIELD CONVERTED)
SECONDARY DRAIN
PRIMARY DRAIN
7 7/8"
1 3/16"
1 1/2"
1/2"
TYP.*
1 13/16"
TYP.
5 7/8"
5/16"
TYP.*
7/8"
TYP.*
HORIZ. RIGHT
(FIELD CONVERTED)
PRIMARY DRAIN
SECONDARY DRAIN
7 7/8"
1 3/16"
1 1/2"
1 13/16"
TYP*
5/16"
TYP*
7/8"
TYP*
1/2"
TYP*
5 7/8"
PRIMARY DRAIN
SECONDARY DRAIN
HORIZ. LEFT
(AS SHIPPED)
2 3/16"
TYP.
(2 PLACES)*
1" TYP.
(2 PLACES)
7/16" TYP.
(4 PLACES)
2 11/16"
3" 1/8
3 1/16"
4 3/4"
AIRFLOW
UPFLOW
(AS SHIPPED)
PRIMARY DRAIN
SECONDARY DRAIN
A10033
Fig. 2 -- FX4D -- English
