24VNA6: Installation Instructions

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

13

A200049

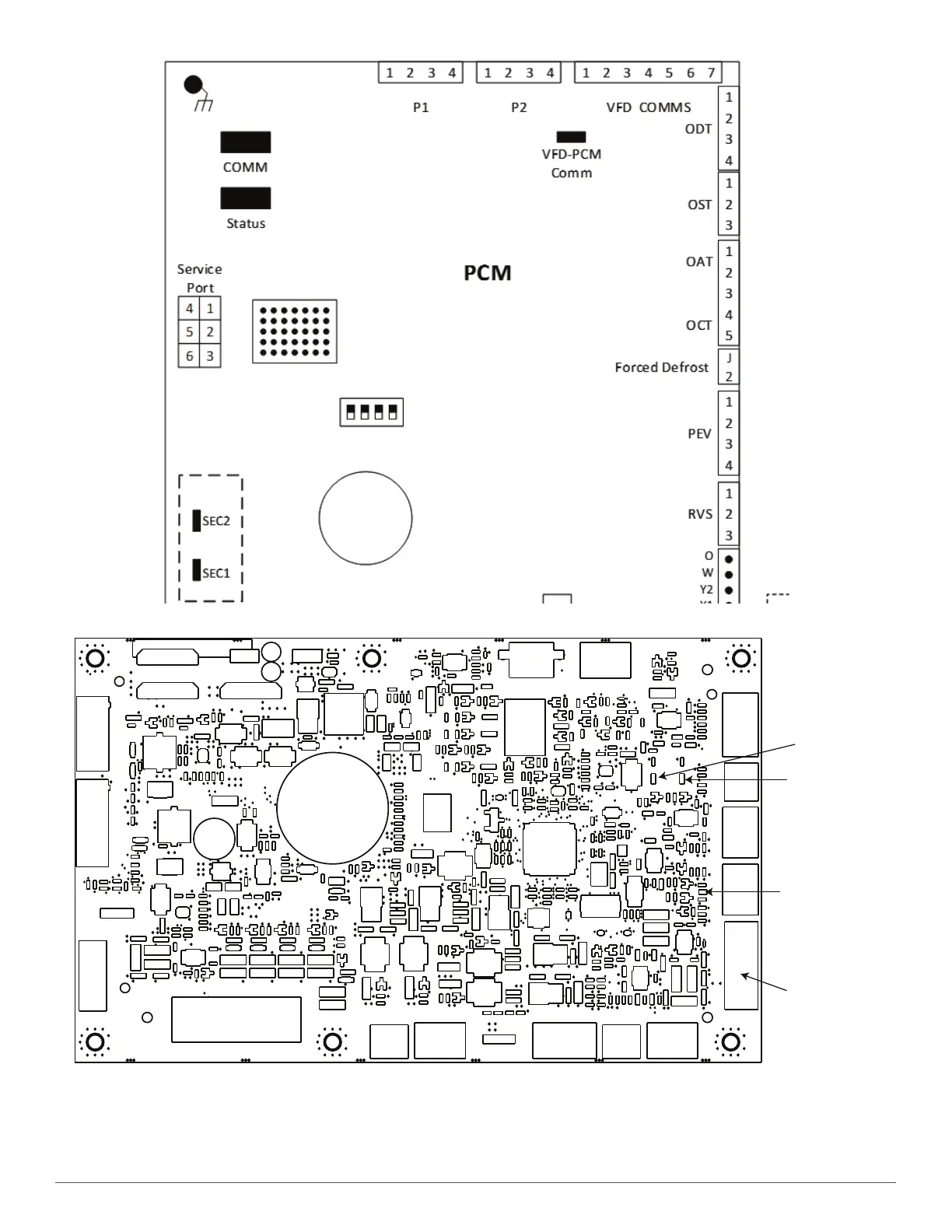

Fig. 26 – Variable Speed Control Board with optional Utility Relay

A200044

Fig. 27 – Primary Control Board

Status LED

(Yellow)

CCN Communication

LED (Green)

VFD LED (Red / Green)

VFD-PCM

Communication Port
