7
FLASH
UPGRADE
CONNECTOR
(FACTORY
ONLY)
ACRDJ Ð AIR
CONDITIONING
RELAY DISABLE
JUMPER
HUMIDIFIER
TERMINAL (24-VAC
0.5 AMP MAX.
CONTINUOUS FAN
(CF) AIRFLOW
SETUP SWITCHES
COMMUNICATION
CONNECTOR
AIR CONDITIONING
(A/C) AIRFLOW
SETUP SWITCHES
MODEL PLUG
CONNECTOR
SW1 SETUP
SWITCHES AND
BLOWER OFF-
DELAY
STATUS AND COMM
LED LIGHTS
3-AMP FUSE
TRANSFORMER 24-VAC
CONNECTIONS
PL3 ÐECM BLOWER
HARNESS
CONNECTOR
PL1 Ð LOW VOLTAGE MAIN
HARNESS CONNECTOR
EAC-1 TERMINAL
(
115-VAC 1.0 AMP MAX.
)
115-VAC (L1) LINE
VOLTAGE CONNECTIONS
115-VAC (L2) NEUTRAL
CONNECTIONS
PL2 Ð HOT SURFACE
IGNITER & INDUCER
MOTOR CONNECTOR
24-V THERMOSTAT
TERMINALS
FUTURE
APPLICATIONS
X
A92505

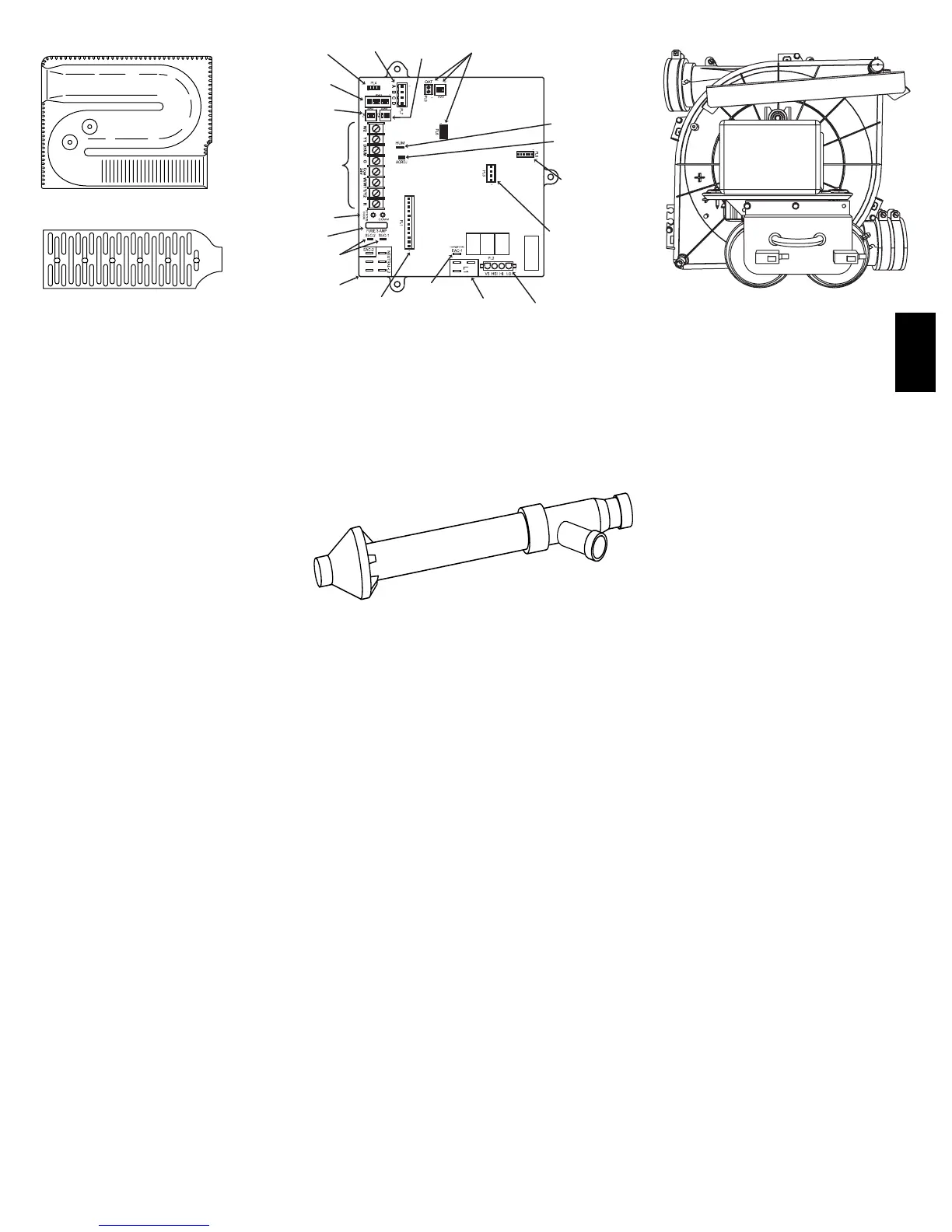

Heat Exchangers
A02278
Control Center
A02286
Inducer Assembly
A93086
Concentric Vent (Direct Vent/2--Pipe Only)
A concentric vent kit allows vent and combustion--air pipes
to terminate through a single exit in a roof or side wall.
One pipe runs inside the other allowing venting through the
inner pipe and combustion air to be drawn in through the
outer pipe.
