Carrier N80ESL Series User Manual

Specifications are subject to change without notice.
11441 01 3400 02
APPROVED
COIL ASSEMBLY
OR
COIL BOX
FURNACE
SHEET METAL
PLENUM
FLOOR
OPENING
COMBUSTIBLE
FLOORING
A08556

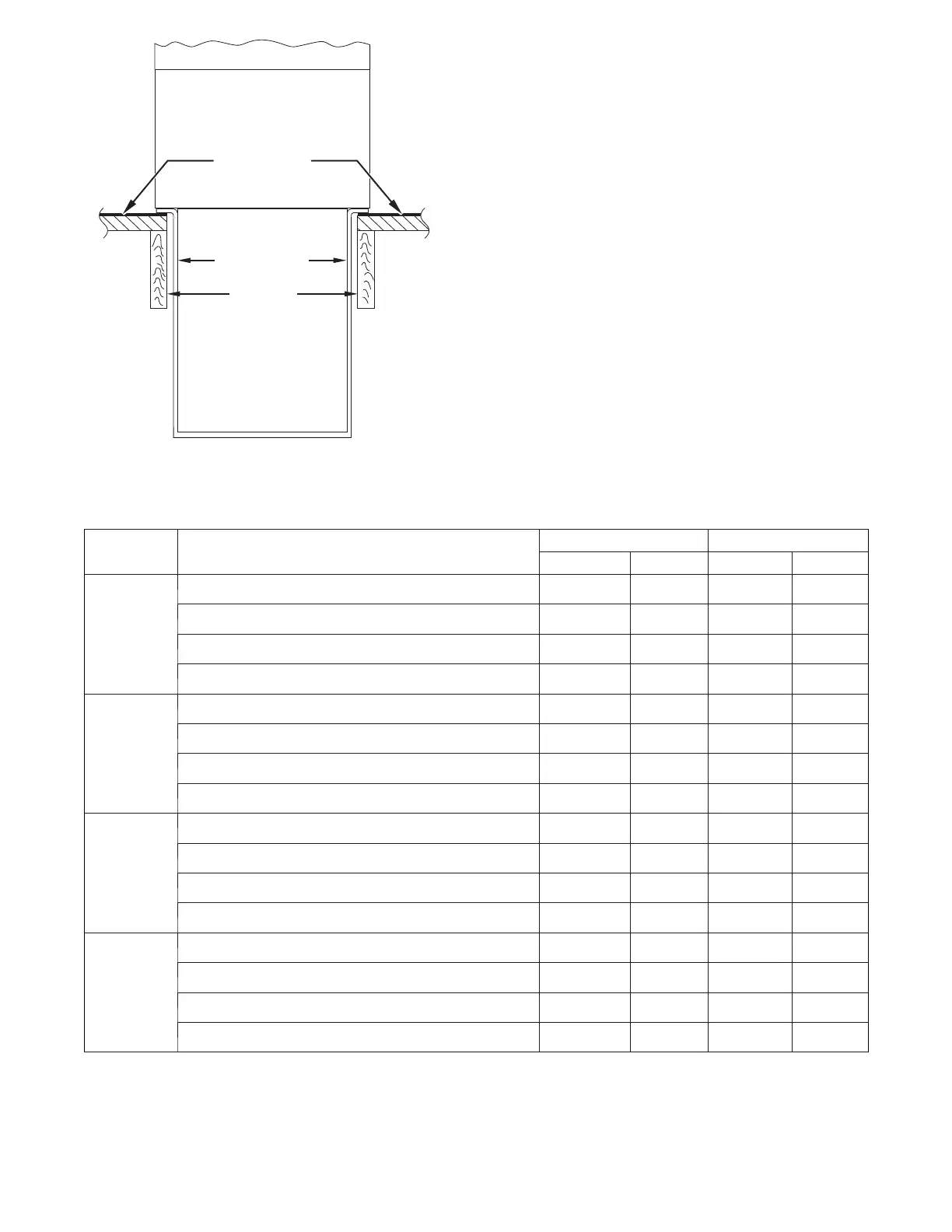

Fig. 13 -- Furnace, Plenum, and Coil Assembly or
Coil Box Installed on a Combustible Floor
Table 4 – Opening Dimensions -- In. (mm)
FURNACE
CASING
WIDTH
APPLICA T ION
PLENUM OPENING FLOOR OPENING
A B C D
14–3/16
(360)
Upflow Applications on Combustible or Noncombustible
Flooring (subbase not required)
12--11/16
(322)
21--5/8
(549)
13--5/16
(338)
22--1/4
(565)
Downflow Applications on Noncombustible Flooring
(subbase not required)
12--9/16
(319)
19
(483)
13--3/16
(335)
19--5/8
(498)
Downflow Applications on Combustible Flooring
(subbase required)
11--13/16
(284)
19
(483)
13--7/16
(341)
20--5/8
(600)
Downflow Applications on Combustible Flooring with Cased
Coil (subbase not required)
12--5/16
(319)
19
(483)
13--5/16
(338)
20
(508)
17–1/2
(445)
Upflow Applications on Combustible or Noncombustible
Flooring (subbase not required)
16
(406)
21--5/8
(549)
16--5/8
(422)
22--1/4
(565)
Downflow Applications on Noncombustible Flooring
(subbase not required)
15--7/8
(403)
19
(483)
16--1/2
(419)
19--5/8
(498)
Downflow Applications on Combustible Flooring
(subbase required)
15--1/8
(384)
19
(483)
16--3/4
(425)
20--5/8
(600)
Downflow Applications on Combustible Flooring with Cased
Coil (subbase not required)
15--1/2
(394)
19
(483)
16--1/2
(419)
20
(508)
21
(533)
Upflow Applications on Combustible or Noncombustible
Flooring (subbase not required)
19--1/2
(495)
21--5/8
(549)
20--1/8
(511)
22--1/4
(565)
Downflow Applications on Noncombustible Flooring
(subbase not required)
19--3/8
(492)
19
(483)
20
(508)
19--5/8
(498)
Downflow Applications on Combustible Flooring
(subbase required)
18--5/8
(473)
19
(483)
20--1/4
(514)
20--5/8
(600)
Downflow Applications on Combustible Flooring with Cased
Coil (subbase not required)
19
(483)
19
(483)
20
(508)
20
(508)
24--1/2
(622)
Upflow Applications on Combustible or Noncombustible
Flooring (subbase not required)
23
(584)
21--1/8
(537)
23--5/8
(600)
22--1/4
(565)
Downflow Applications on Noncombustible Flooring
(subbase not required)
22--7/8
(581)
19
(483)
23--1/2
(597)
19--5/8
(498)
Downflow Applications on Combustible flooring
(subbase required)
22--1/8
(562)
19
(483)
23--3/4
(603)
20--5/8
(600)
Downflow Applications on Combustible Flooring with Cased
Coil (subbase not required)
22--1/2
(572)
19
(483)
23--1/2
(597)
20
(508)
