Carrier N80ESL Series - Page 28

Specifications are subject to change without notice.
28
441 01 3400 02
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures
A03210

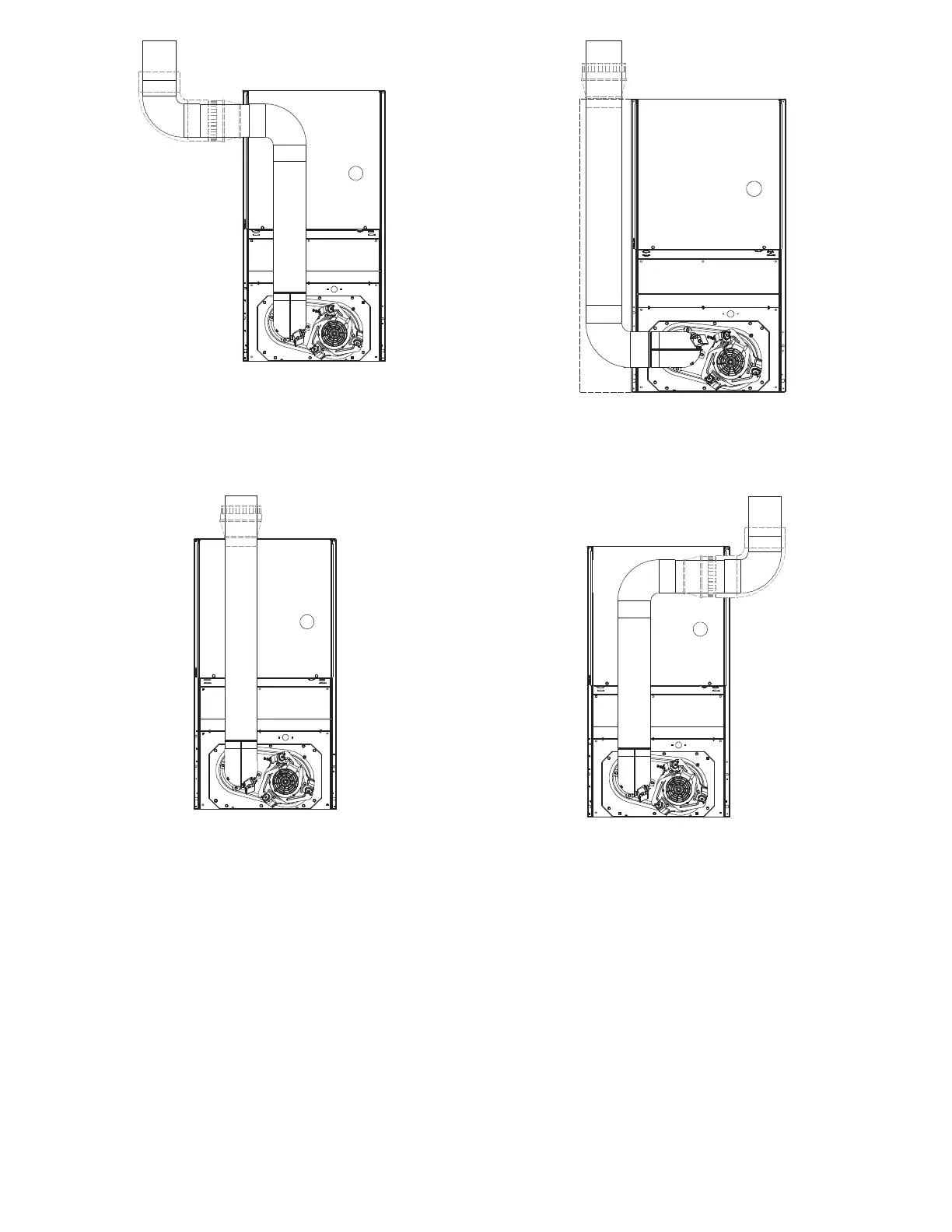

Fig. 30 -- Downflow Application--Vent Elbow Up then Left
SEE NOTES: 1,2,4,5,7,8,9
on the page following
these figures
A03211
Fig. 31 -- Downflow Application -- Vent Elbow Up
SEE NOTES: 1,2,4,5,6,7,8,9
on the page following these figures
A03207
Fig. 32 -- Downflow Application--Vent Elbow Left then Up
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures.
A03212
Fig. 33 -- Downflow Application -- Vent Elbow Up then Right
