4
513 01 3103 00
UNIT
Electrical
Characteristics
Unit WT. Unit HT. Center of Gravity
LB KG A X Y Z
24 208/230--1--60 272 123.3 40 1018 20--1/2 520.7 15--3/4 400.1 16--1/2 419.1
30 208/230--1--60, 208/230--3--60 277 125.3 42 1070 20--1/2 520.7 15--3/4 400.1 16--13/16 427.0
36
208/230--1--60, 208/230--3--60 283 128.3 46 1172 20--1/2 520.7 15--3/4 400.1 17 431.8
460--3--60 297 134.6 46 1172 20--1/2 520.7 15--3/4 400.1 17 431.8
UNIT Voltage
Corner Weight LB/KG
1 2 3 4
24 208/230 54.4 24.7 43.5 19.7 65.2 29.6 108.7 49.3
30 208/230 55.4 25.1 44.3 20.1 66.4 30.2 110.7 50.3
36
208/230 56.6 25.7 45.2 20.5 67.9 30.8 113.1 51.3
460 56.6 25.7 45.2 20.5 76.9 34.9 118.1 53.6

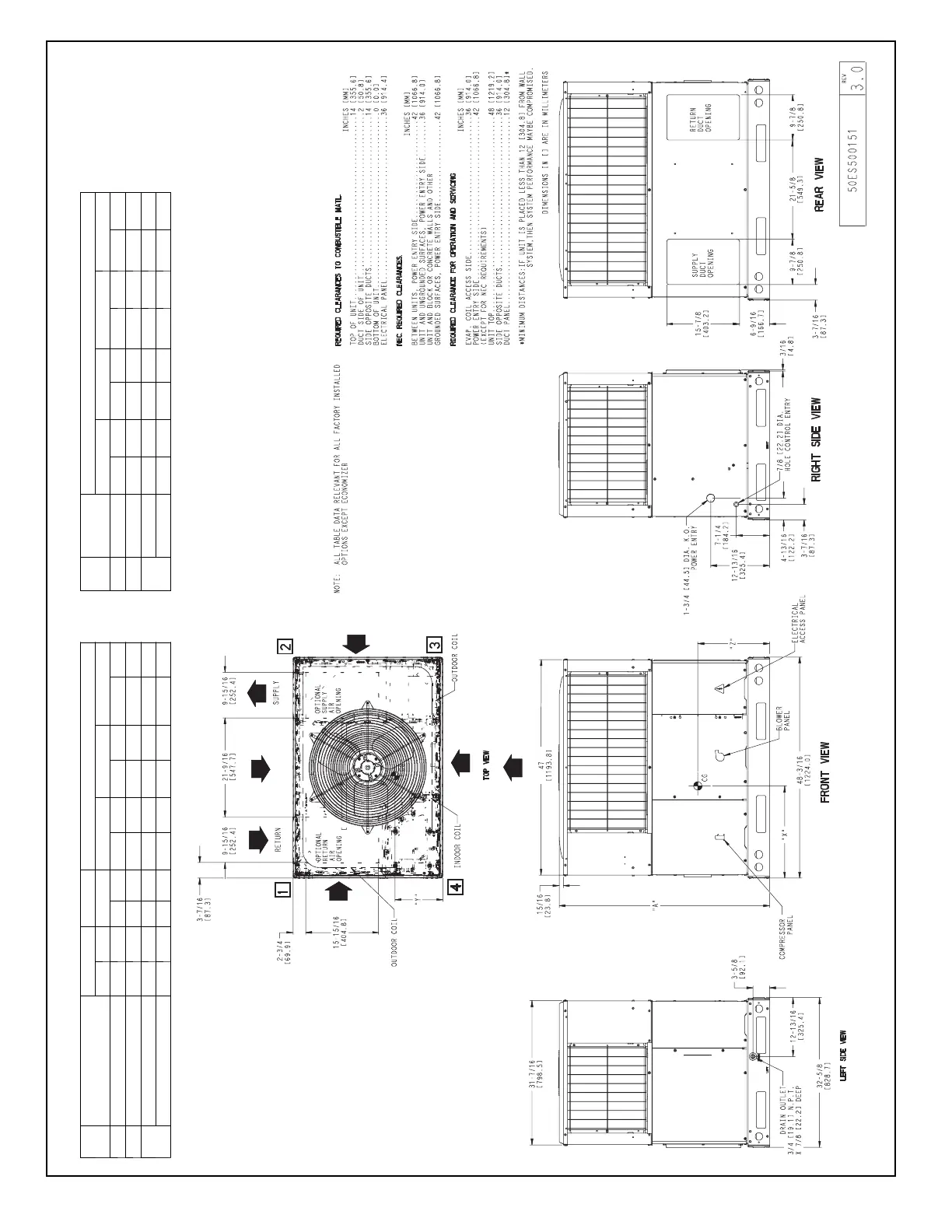

Fig. 4 -- PAD3 2 to 3 Ton Unit Dimensions
