DIMENSIONS (CONT)

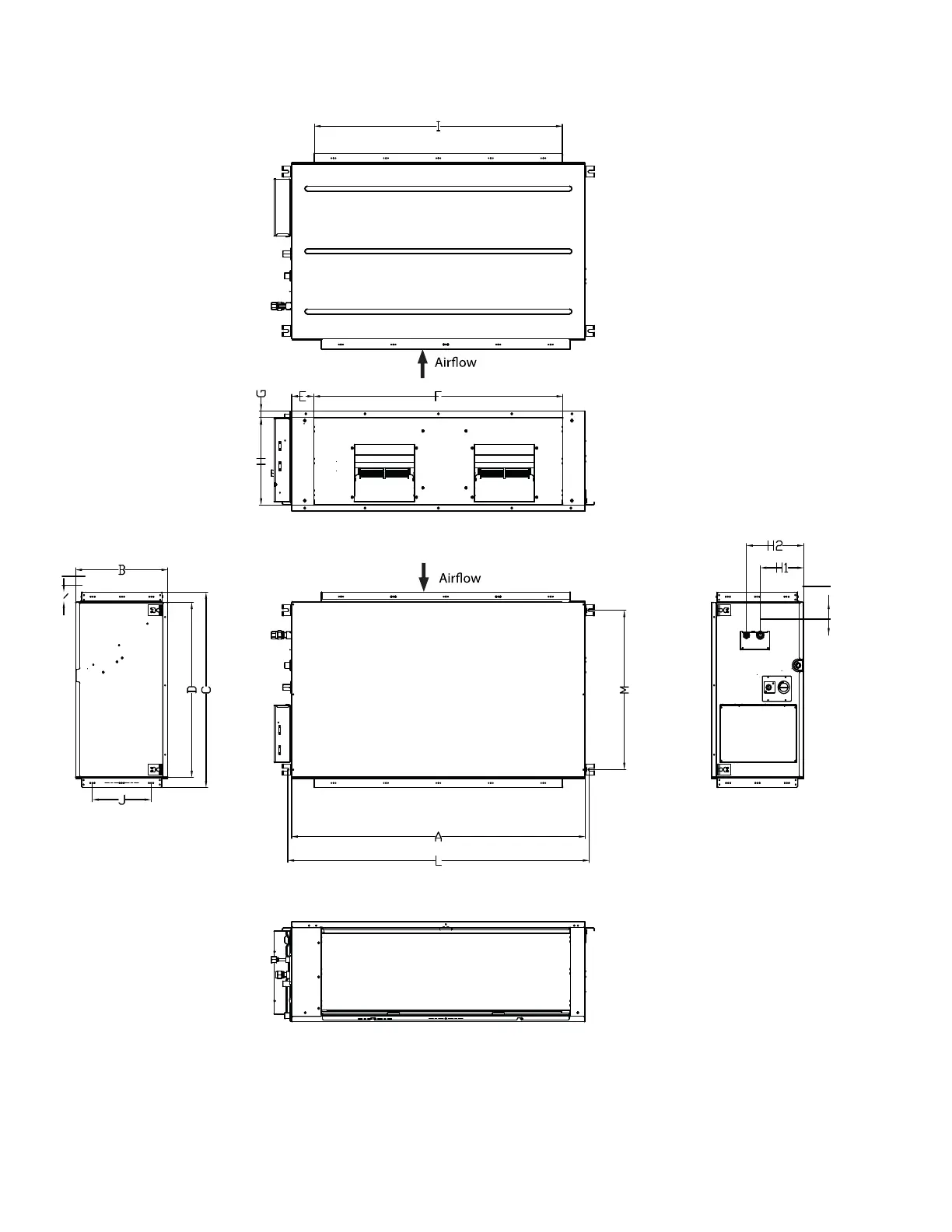

Fig. 6 — Indoor Unit Size 58K
LEFT VIEW
BOTTOM VIEW
REAR VIEW
Air Inlet
TOP VIEW
RIGHT VIEW
FRONT VIEW
Air Outlet
NOTE: Size 58K draw-through system
