FOCUSING
1. Look into Eyepiece and you should see a white circular field.
2. Slowly adjust the Focus Knob
0
10
until the area of interest is sharp and clear.
3. Adjust light intensity on light source(s) to achieve best image.
Warning: Be careful that the Objective Lens does not touch the specimen. It can damage the Objective Lens and/or
specimen.
MAGNIFICATION
Eyepiece
Objective
Lens
Total
Magnification
10x 4x 40x
10x 10x 100x
10x 40x 400x
To change magnification, rotate the Turret so that the
desired Objective Lens is directly above specimen.
Refocus as needed.

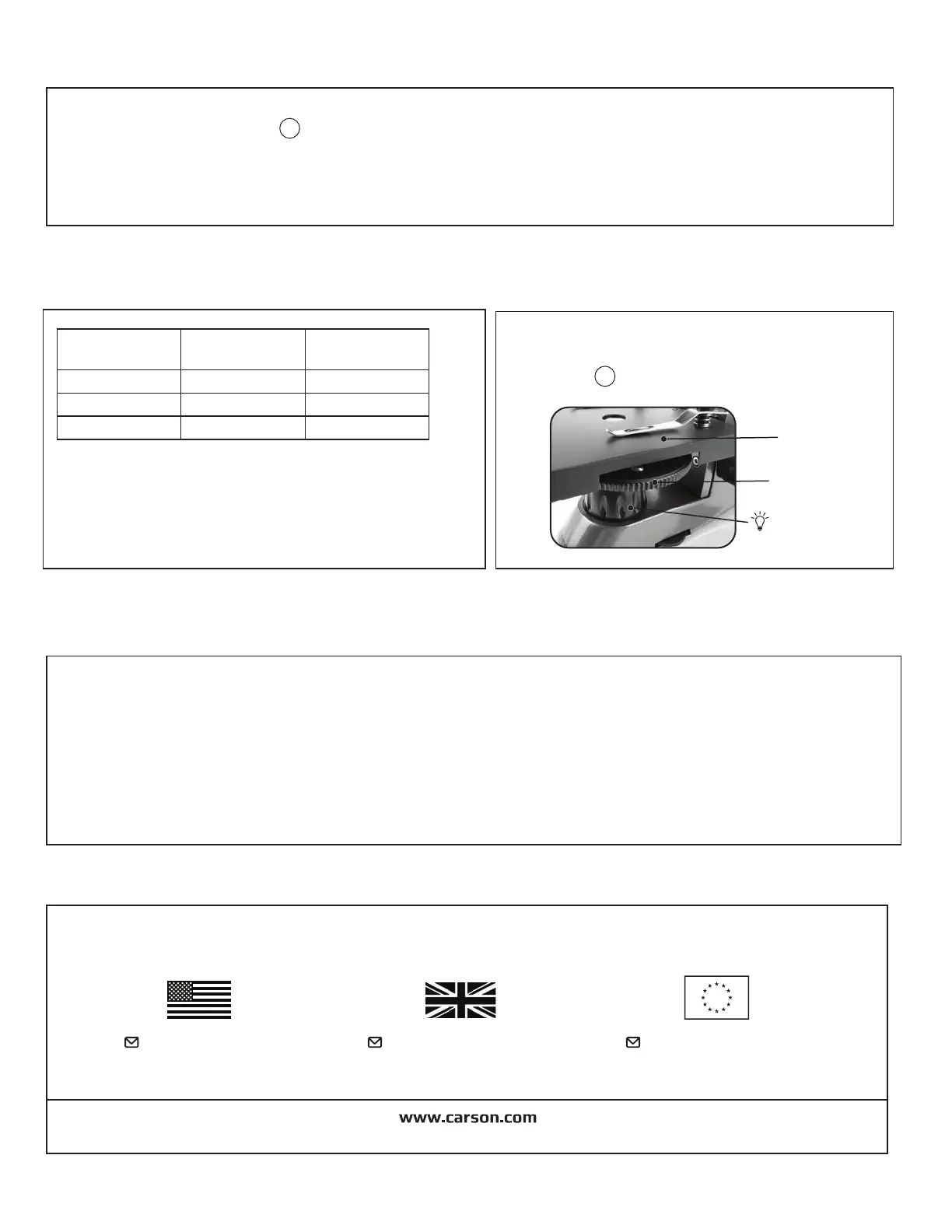

COLOR FILTERS
Color filters may be used to enhance contrast on
clear or stained slides. To use color filters, rotate
Filter Wheel until it clicks into desired color filter.
11
Filter Wheel
Transmitted
Light
Stage
CARE & CLEANING
• When moving the microscope, hold by the neck or base of the microscope body. Never hold by the eyepiece,
draw tube, or turret.
• Cleaning:
1. Unplug power cord and use a slightly damp microfiber cloth to clean microscope body.
2.Use a slightly damp microfiber cloth and rub gently to remove dust or debris on eyepiece or objective lens.
Do NOT rub with a dry cloth. This can scratch the eyepiece and/or objective lens.
3. Store microscope in original packaging to protect from dirt, debris, dust or moisture.
2.
19
www.carson.com
Customer Service:
If you experience any difficulties, please contact us and we will be happy to help you.
info@carson.com
uksupport@carson.com eusupport@carson.com
For warranty information, visit www.carson.com/warranty
Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: 631-963-5000
