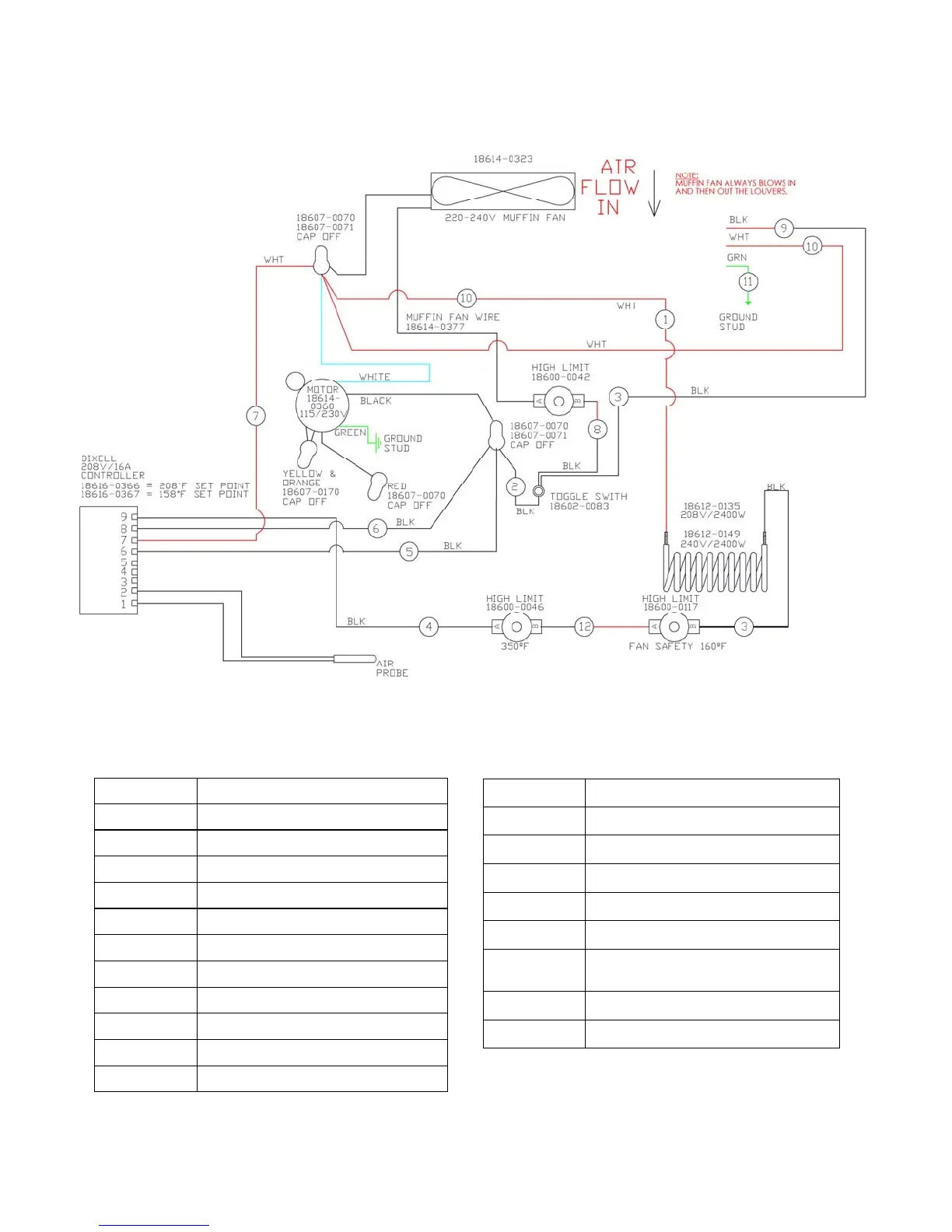

WIRING DIAGRAM
PART NUMBER DESCRIPTION
18600-0042 Hi Limit 120°F Snap Disc
18600-0046 Hi Limit 350°F Auto
18602-0031 Switch Boot
18602-0083 DPDT Toggle Switch
18612-0135 Heat Element 240V/2400W
18612-0149 Heat Element 208V/2400W
18614-0275 Fan Grill
18614-0323 Muffin Fan, 230V
18614-0360 Motor, 115/230V
18616-9996 Cord Grip
18614-0321 Blower Wheel
PART NUMBER DESCRIPTION
18600-0117 Fan Safety Hi Limit 160°F w/Reset Snap Disc
18616-0366 Dixell 208V/16A 208°F Set-point Controller
18616-0367 Dixell 208V/16A 158°F Set-point Controller
16090-3594 HSJO 14/3 Cord with L6-16P Plug
18616-0035 20” Probe for EVO Heater
16095-3480 Sliding doors for small warming cavity (one
front and one back door)
16095-3532 Three-door flip up assembly (left)
16095-3531 Three-door flip up assembly (right)
REPLACEMENT PARTS LIST
18616-0035
To Next Page
