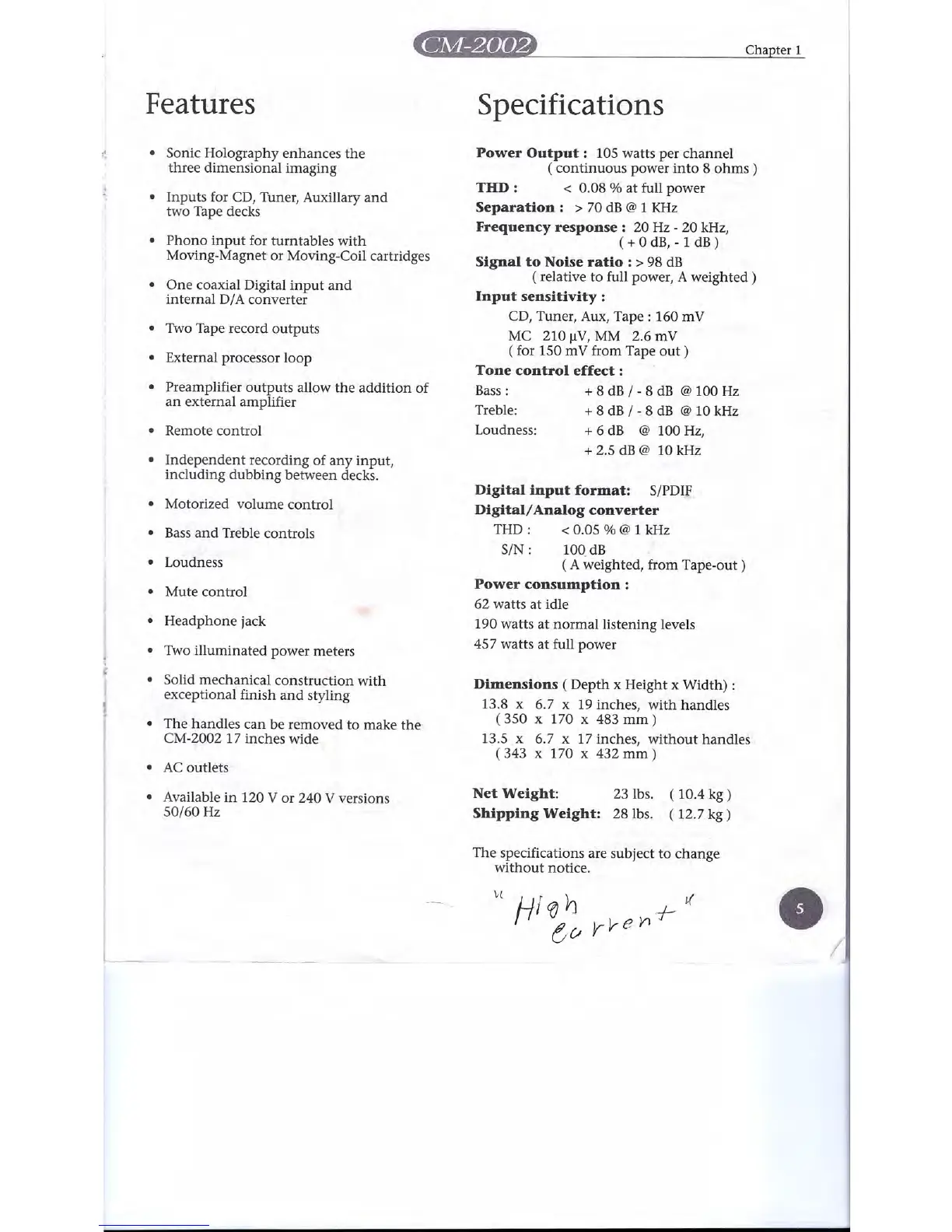

_ Chapterl
Features
-<
r ,
• Sonic Holography enhances the
three dimensional imaging
• Inputs for CD, Tuner, Auxillary and
two Tape decks
• Phono input for turntables with
Moving-Magnet or Moving-Coil cartridges
• One coaxial Digital input and
internal
DI
A converter
• Two Tape record outputs
• External processor loop
• Preamplifier outputs allow the addition of
an external amplifier
• Remote control
• Independent recording of any input,
including dubbing between decks.
• Motorized volume control
• Bass and Treble controls
• Loudness
• Mute control
• Headphone jack
• Two illuminated power meters
• Solid mechanical construction with
exceptional finish and styling
• The handles can be removed to make the
CM-2002 17 inches wide
• AC outlets
• Available in 120 V or 240 V versions
50/60
Hz
Specifications
Power Output:
105 watts per channel
( continuous power into 8 ohms)
THD :
<
0.08
%
at full power
Separation:
>
70 dB
@
1
KHz
Frequency response:
20 Hz - 20 kHz,
( +
0 dB, - 1 dB )
Signal to Noise ratio:
>
98 dB
(relative to full power, A weighted)
Input sensitivity:
CD, Tuner, Aux, Tape: 160 mV
MC 210 ~V, MM 2.6 mV
(for 150 mV from Tape out)
Tone control effect :
Bass:
+
8 dB
I -
8 dB
@
100 Hz
Treble:
+
8 dB
I -
8 dB
@
10 kHz
Loudness:
+
6 dB
@
100 Hz,
+
2.5 dB
@
10 kHz
Digital input format:
S/PDIF
Digital! Analog converter
THD :
<
0.05
%
@
1 kHz
SIN:
100.dB
( A weighted, from Tape-out)
Power consumption:
62 watts at idle
190 watts at normal listening levels
457 watts at full power
Dimensions (
Depth x Height x Width) :
13.8 x 6.7 x 19 inches, with handles
(350 x 170 x 483 mm )
13.5 _x 6.7 x 17 inches, without handles
(343 x 170 x 432 mm )
Net Weight:
23 lbs.
Shipping Weight:
281bs.
( lOA
kg)
(12.7kg)
e
I
The specifications are subject to change
without notice.
