Chanter 2

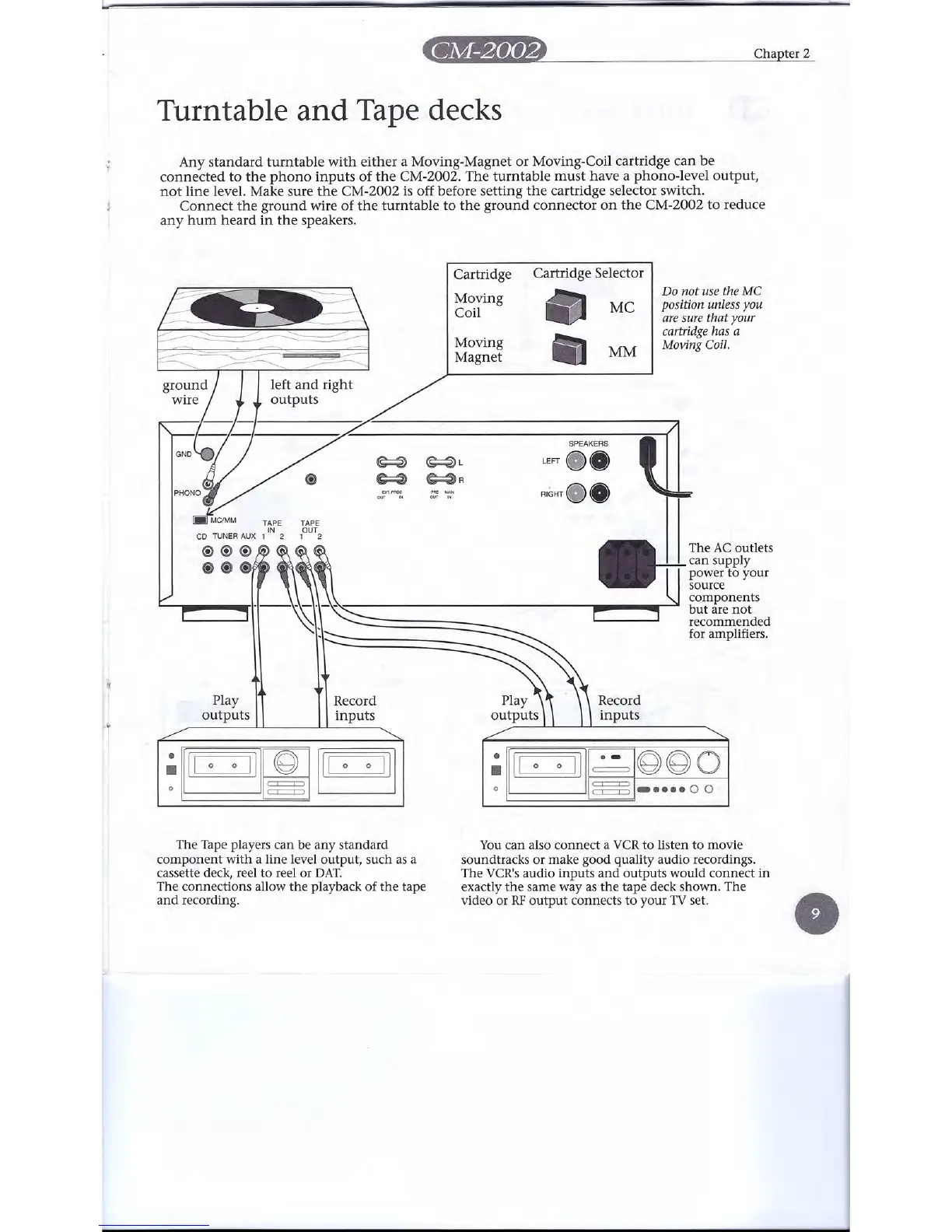

Turntable and Tape decks
..i
,
Any standard turntable with either a Moving-Magnet or Moving-Coil cartridge can be
connected to the phono inputs of the CM-2002. The turntable must have a phono-level output,
not line level. Make sure the CM-2002 is off before setting the cartridge selector switch.
Connect the ground wire of the turntable to the ground connector on the CM-2002 to reduce
any hum heard in the speakers.
Moving
Magnet
Me
Do not use the
MC
position unless you
are sure that your
cartridge has a
Moving Coil.
Cartridge
Moving
Coil
Cartridge Selector
MM
left and right
outputs
SPEAKERS
m
EXT.PAOC
OUT IN
PRE MAIN
OUT IN
LEFT
0_
RIGHTO_
•
~
~
~L
~R
The Tape players can be any standard
component with a line level output, such as a
cassette deck, reel to reel or DAT.
The connections allow the playback of the tape
and recording.
Youcan also connect a VCRto listen to movie
sound tracks or make good quality audio recordings.
The VCR'saudio inputs and outputs would connect in
exactly the same way as the tape deck shown. The
video or RFoutput connects to your TV set.
_MC/MM
TAPE
IN
CD TUNERAUX 1 2
TAPE
OUT
1 2
IIH'
The AC outlets
can supply
~
power to your
source
components
but are not
recommended
for amplifiers.
,~
I
Play
outputs
Record
inputs
Record
inputs
I
~I
II
~IBI~18
;~;~~~g90
e
~=- ....
oo
