CONNECTING UP
CONNECTING UP
OUTPUTS 3/4
RIGHTLEFT
INPUTS 3/4
RIGHTLEFT
(EFF 3) (EFF 4)(EFF 3) (EFF 4)
MADE
AUS
IN THE
S/N REMOVED
OUTPUTS 1/2
RIGHTLEFT
INPUTS 1/2
RIGHTLEFT
BYPASS 1/2
FOOTSWITCH
(EFF 1) (EFF 2)(EFF 1) (EFF 2)
2423
17-24
222120191817
PHANTOM
POWER
DIR - INSERT
LINE
MIC
DIR - INSERT
LINE
MIC
DIR - INSERT
LINE
MIC
DIR - INSERT
LINE
MIC
DIR - INSERT
LINE
MIC
DIR - INSERT
LINE
MIC
DIR - INSERT
MIC
DIR - INSERT
LINE
MIC
R
TAPE
OUT
TAPE IN
RTN 2 LEFF 2 RTN 2 R RIGHT
RTN 3 LEFF 3 RTN 3 R MON 2
LEFT
MON 1
PHONES
MONO
LEFT RIGHT MONO
Connect the effects
send on the mixer to
the input on the XP
Use the Left input
when connecting a
mono signal.
Connect to the Left &
Right effect returns.
Connect the Left &
Right outputs to the
returns on the mixer.
When a stereo
source is avail-
able, the XP
processor will
accommodate
both Left and
Right sources.

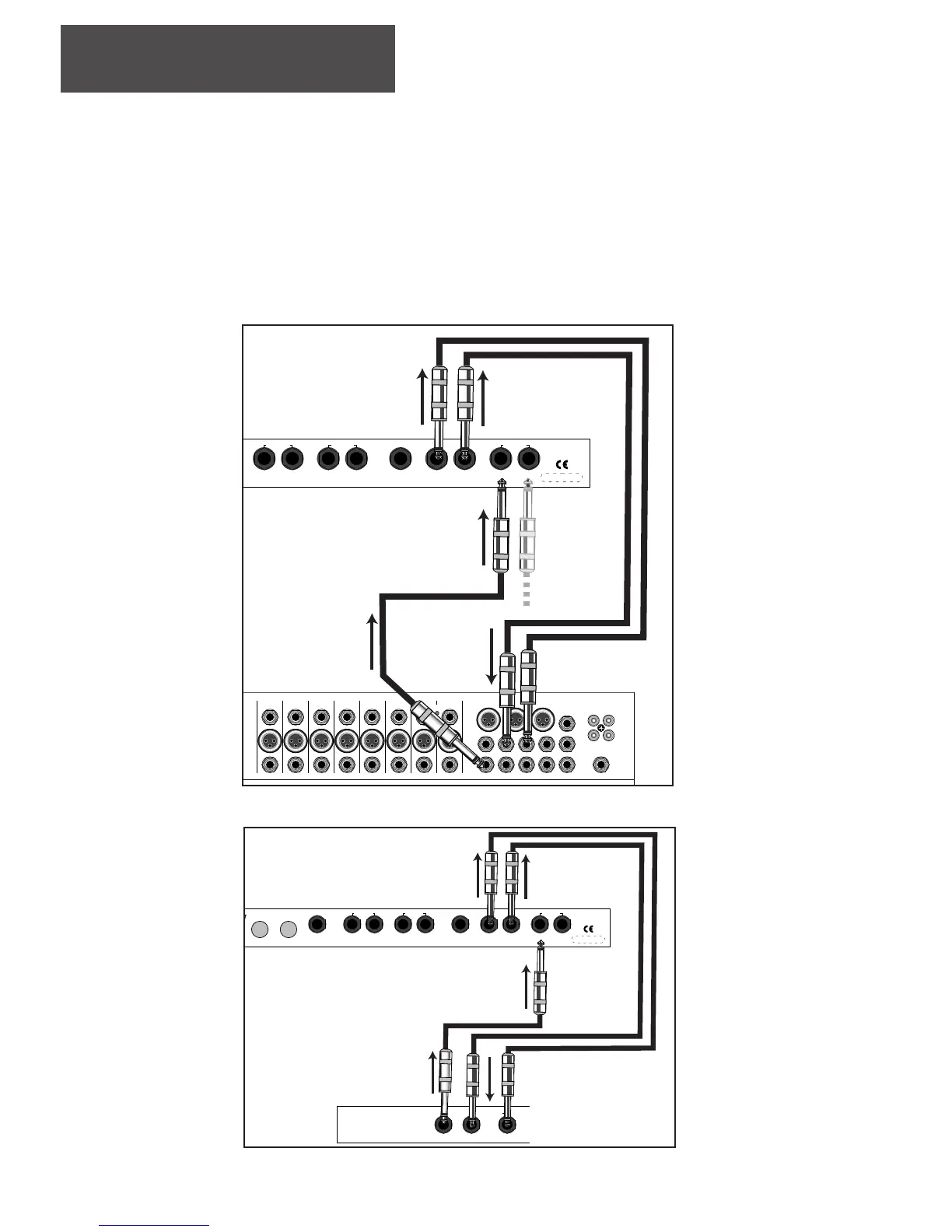

CONNECTING TO AN EFFECTS LOOP
You will need audio-instrument cables with 1/4” mono plugs. These are not included with your XP processor and are required for
connecting to an effects loop on a mixer or preamp. Carvin suggests high quality shielded cables for the best possible signal.
Carvin’s SH instrument cables are well suited for this type of installation.
1. Turn off all audio components that are to be connected.
2. Turn all your mixer’s send levels down as well as the input and output levels on the XP.
3. Connect the XP’s inputs to the Send (output) on the mixer or preamp effects loop.
4. Connect the XP’s output(s) to the Return(s) (input) on the mixer or preamp effects loop. Both Left and Right stereo outputs will
need to be used when in Stereo mode.
EFFECTS
SEND
EFFECTS RETURN
LEFT
RIGHT
OUTPUTS 3/4
RIGHTLEFT
INPUTS 3/4
RIGHTLEFT
BYPASS 3/4
FOOTSWITCH
(EFF 3) (EFF 4)(EFF 3) (EFF 4)
MIDI
IN
MADE
AUS
IN THE
S/N REMOVED
m
OUTPUTS 1/2
RIGHTLEFT
INPUTS 1/2
RIGHTLEFT
BYPASS 1/2
FOOTSWITCH
(EFF 1) (EFF 2)(EFF 1) (EFF 2)
MIDI
THRU
Guitar Amp
Effects Loop
Connect the Left & Right
outputs to the returns on
the guitar amp.
Connect the effects send
on the guitar amp to the
input on the XP.
Connect to the Left &
Right effect returns. If
the amp has a mono
return, use only the Left
Output from the XP
MIXER CONNECTION (STEREO MODE)
GUITAR AMP CONNECTION (STEREO OR MONO MODE)
4
To use multiple effects please see the “Digital Linking” section on page 10
