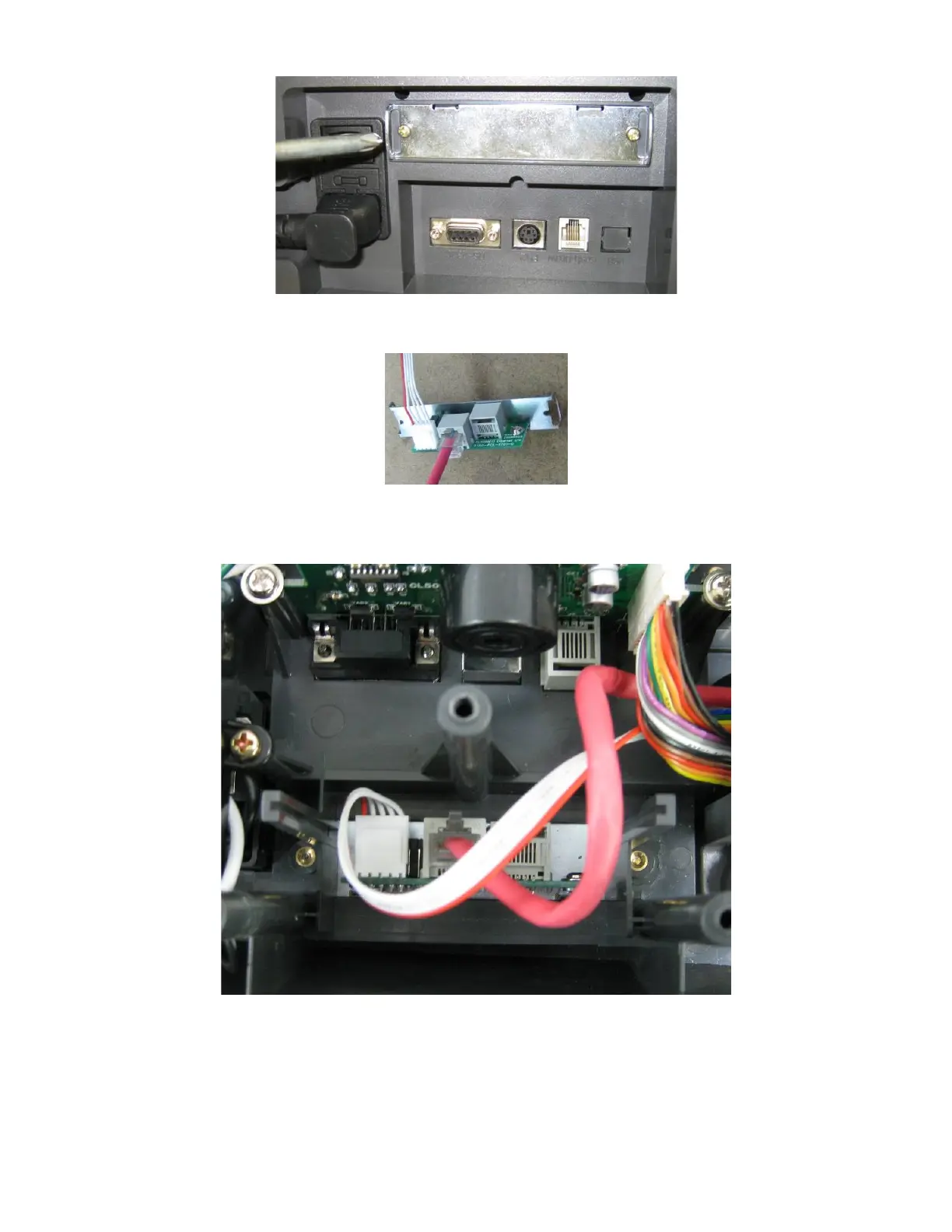

3. Remove the dummy cover from the bottom of the scale.

4. Plug the Ethernet cable and the power/indicator light cable onto the

Ethernet I/O board.

5. Install the Ethernet I/O board into the hole where the dummy plate was

removed threading the cables up into the scale. Secure the mounting plate

with two Phillips head screws included in the hardware package.
