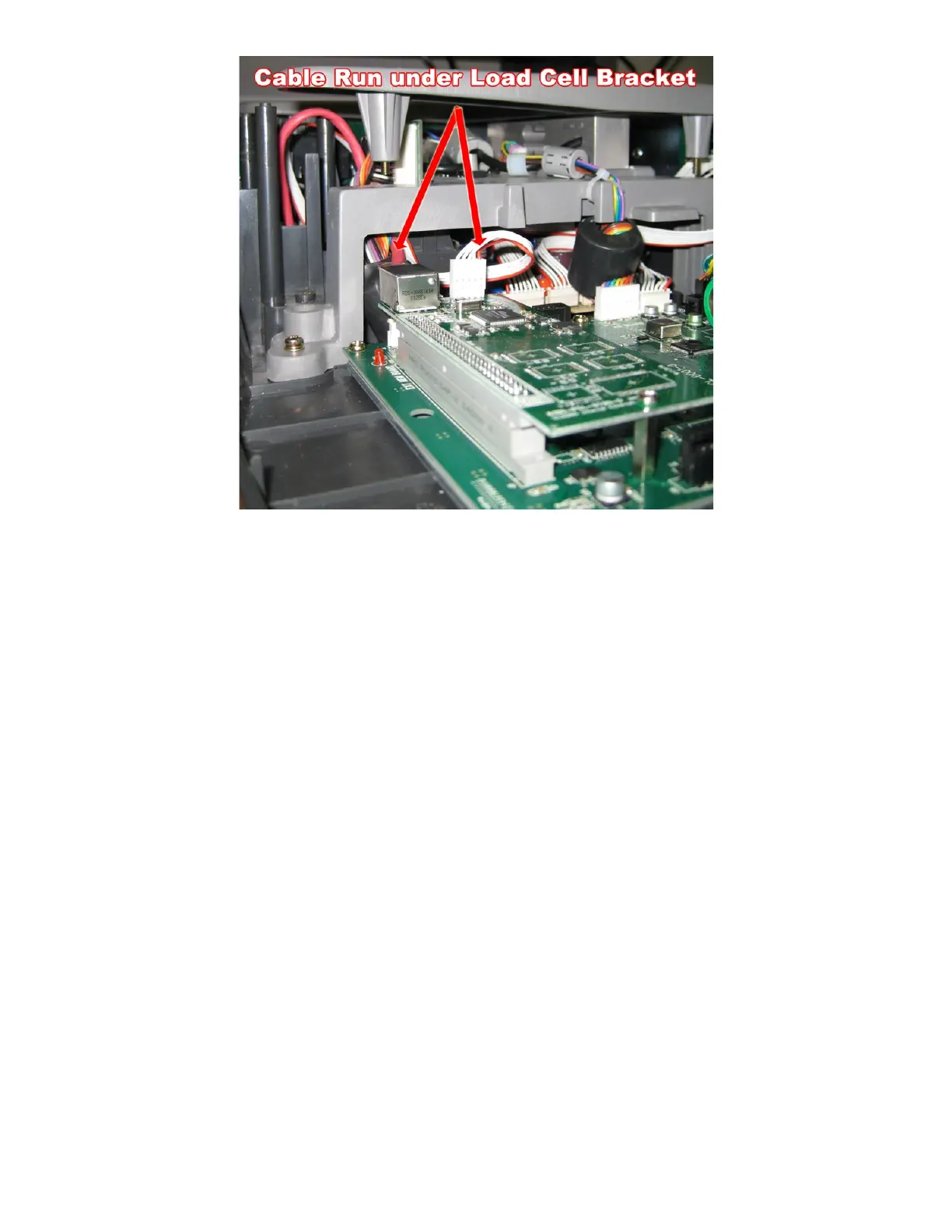

8. Thread the cables from the Ethernet I/O board to the internal Ethernet
board. Make sure to run the cables under the load cell support bracket as
shown in the picture. When done reassemble the scale.
