Casada ALPHASONIC - Footrest Mounting Procedure

25
24
UNBOXING & ASSEMBLY
Unboxing & Assembly Unboxing & Assembly
UNBOXING & ASSEMBLY
For orientation, this next step referenc-
es the left side of the footrest. For the
purposes of these instructions, the left
side is as you stand in front of the chair,
or where the right leg would be posi-
tioned for someone sitting in the chair.
Proper orientation of footrest plug connection

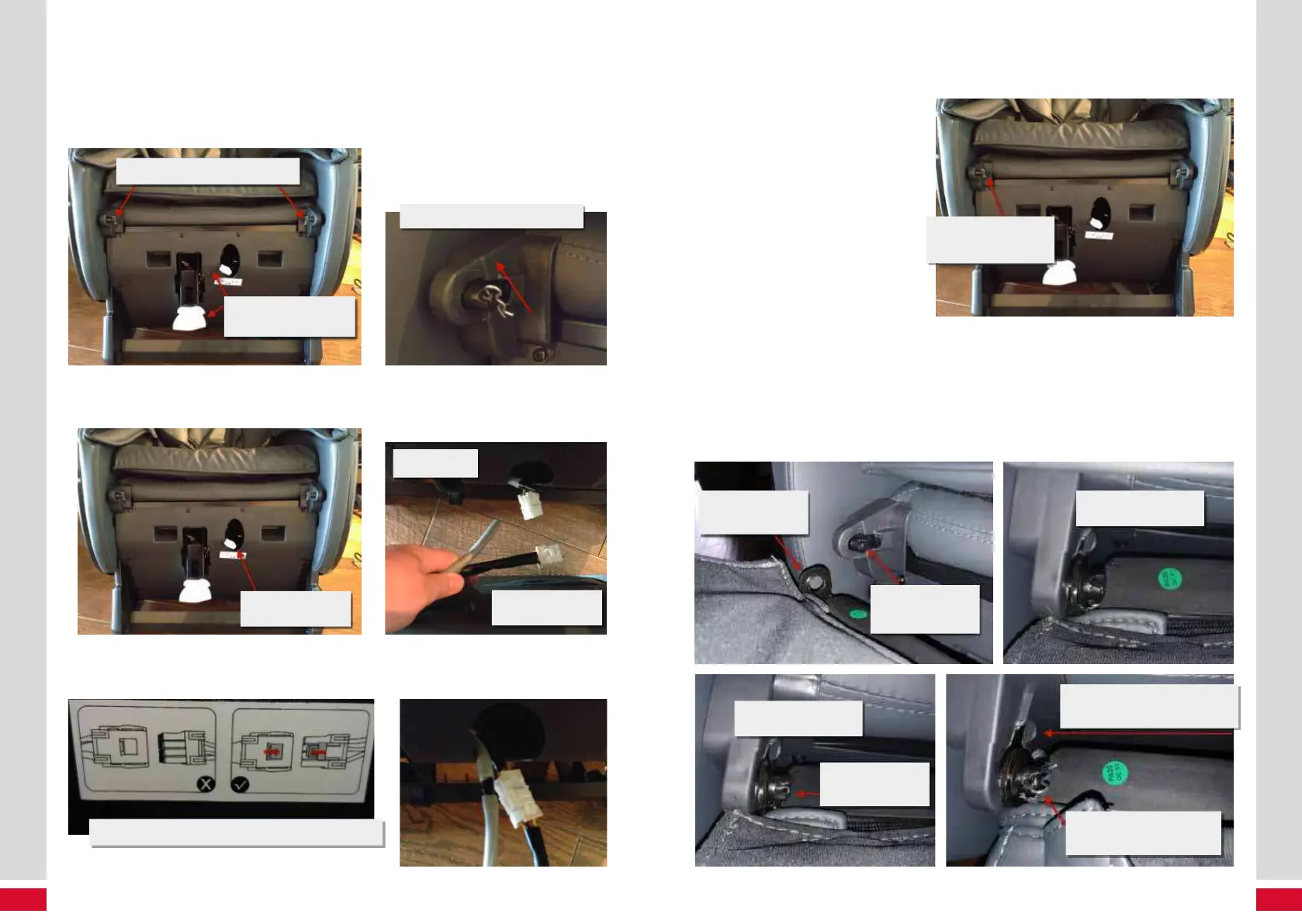

FOOTREST ASSEMBLY
1. Remove cotter pins, foam, and twist tie used for secure shipping.
Pull out cotter pins
Remove cotter pins
Remove twist tie
and foam
"Left side" area
referenced
2. Connect the air hose and footrest wire (harness) from chair to footrest.
Note the diagram on the chair showing the proper orientation of the plug
Wire and plug
Footrest
Chair
3. Starting with the left side, slide the footrest mounting hole (located on the footrest) onto the footrest
mounting rod (located on the chair frame). Insert cotter pin. Press the footrest onto the rod as far as it
will go. Notice there is a plastic sleeve on the rod which may need to be rotated slightly so the cotter pin
can be inserted into the holes on the steel mounting rod. This can be adjusted either while the footrest
mount is in place, or before the footrest is mounted.
Footrest
mounting hole
Cotter pin hole
Cotter pin inserted
Press footrest as far left as it
will go onto rod
Incorrect
Correct
Footrest
mounting rod
