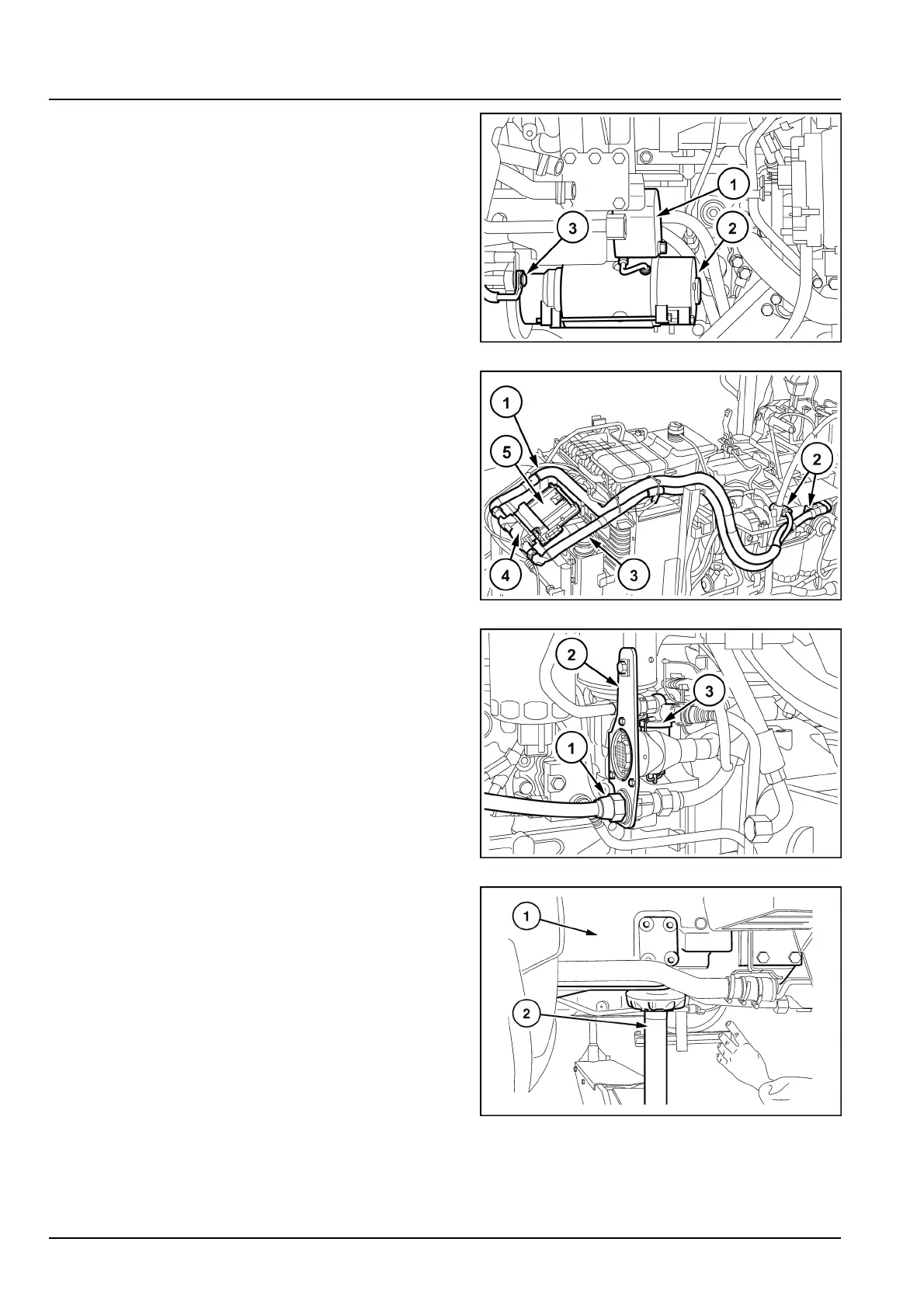

Engine-Engineandcrankcase
31.Ontheright-handside,removetheguard(1)onthe
startermotor(2),disconnectthestartingcable,the
batterycut-offswitch,thecablejoiningittothealter-
nator,alsodisconnectthealternatorandthebattery
positiveterminal,freeallthewiringsdetachedfrom
thevariousclamps.
32.Detachtheclampbolt(3)thenremovetheground
cablesoftheengineandbatterysystem,removethe
otherclampboltsofthemotorandremoveit.
WLAPL4S10C135A28
33.Onthecable(1)oftheFTPcable-engineinterface
detachalltheconnections(2),leaveonlythoseon
themaxifuseboxandontheglowplugcontrolunit,
then,aftercuttingtheclamps,collectthecableonthe
frontnearthecontrolunit(5).
34.Onthemainenginecable(3)disconnecttheconnec-
tors,startingfromtheoneonthecontrolunit(4),from
themaxifuseboxandfromthevariousswitchesand
sensorslocatedontheengineand,afterfreeingit
fromtheclamps,moveitontothebackattheheight
oftheright-handsteps.
WLAPL4S10C137A29
35.Ontheleft-handsidedisconnecttheconnectorofthe
powercableofthecab(1),freeitfromtheclamps
andmoveitontothemaxifusebox.
36.Detachthebracket(2)supportingthecabconnec-
tors,cabpowerandcuplter(3),disconnectthepipe
thatjoinsthelattertothemechanicalprimingpump
onthesedimentlter.
WLAPL4S10C139A30
37.Hooktherearpartoftheengineontoahoistusing
chainsorropesforthehoisting(applytwoeyebolts,
onetotherightandonetotheleft,ontheupper
partoftheangecontainingtheywheel).Position
axedstand(2)undertheclutchhousing(1)near
theengineattachmentangingandapplythehand-
brake.
WLAPL4S10C129A31
4753161807/05/2013
10.1[10.001]/12
