Engine-Aircleanersandlines

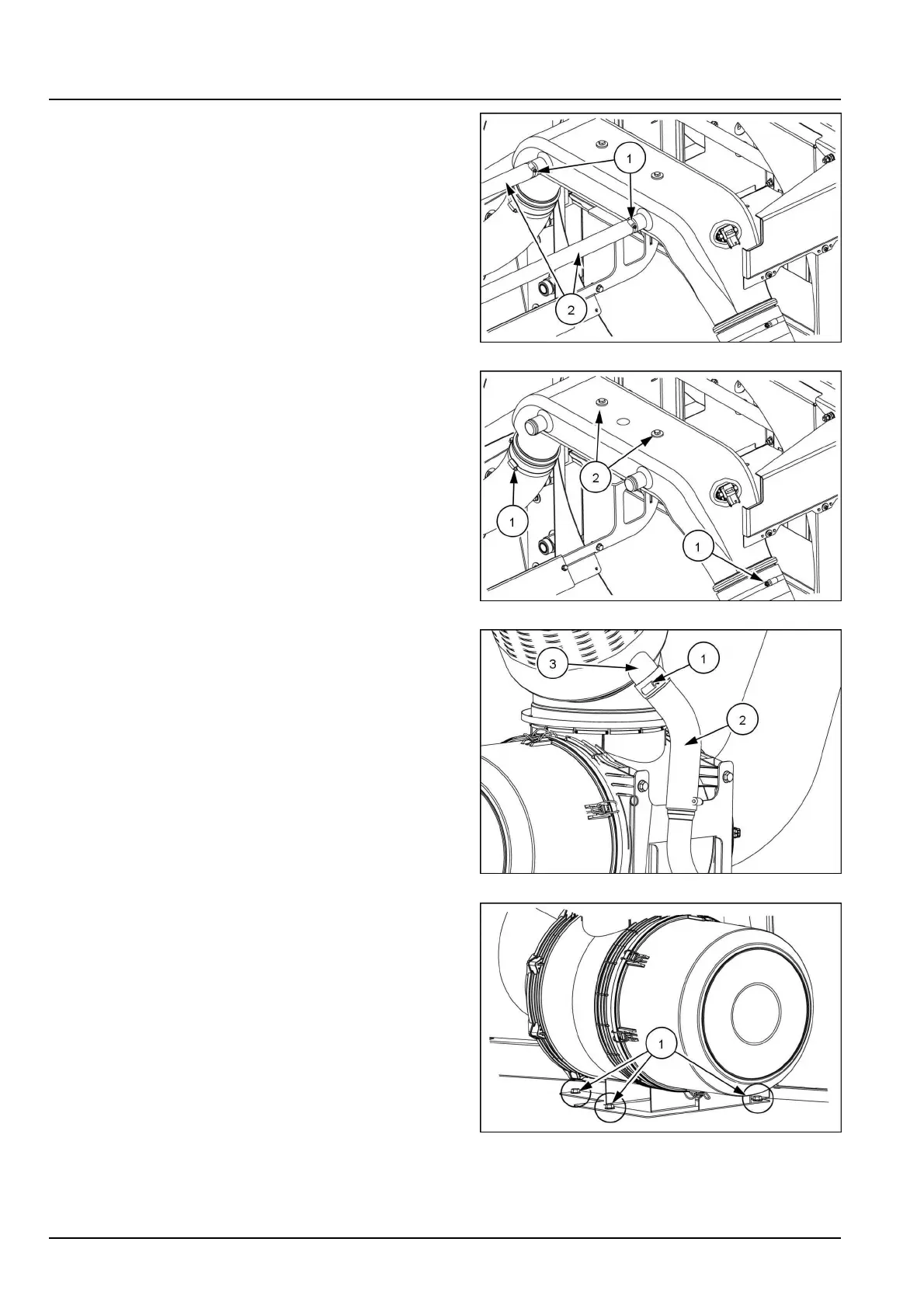

4.Loosenthetwohoseclamps(1)andremovethetwo
tubes(2)fromtheairintaketube.
NOTE:therewillonlybeasecondhoseconnectiononly
ifthecombineisequippedwiththeengineblowoffkitin-
stalled.
NHPE13AF00446AB4
5.Loosenthetwoairintaketubeclamps(1)totheturbo
chargerandtheairintakeassembly.
6.Removethetwoboltsandwashers(2)andcarefullyre-
movetheairintaketubefromtheenginecompartment.
NHPE13AF00446AA5
7.Loosenclamp(1)connectingtheexhaustaspirator
hose(2)tothelterhousingtube(3).Slidehoseoffof
thelterhousingtube.
NHPE13AF00541AA6
8.Removethethreebolts(1)securingtheairboxframe
tothedeck.Theboltsaresecuredbyweldnutsin
platformsotheycanberemovedeasilybyoneperson.
NHPE13AF00449AA7
4804083715/08/2017
10.1[10.202]/4
