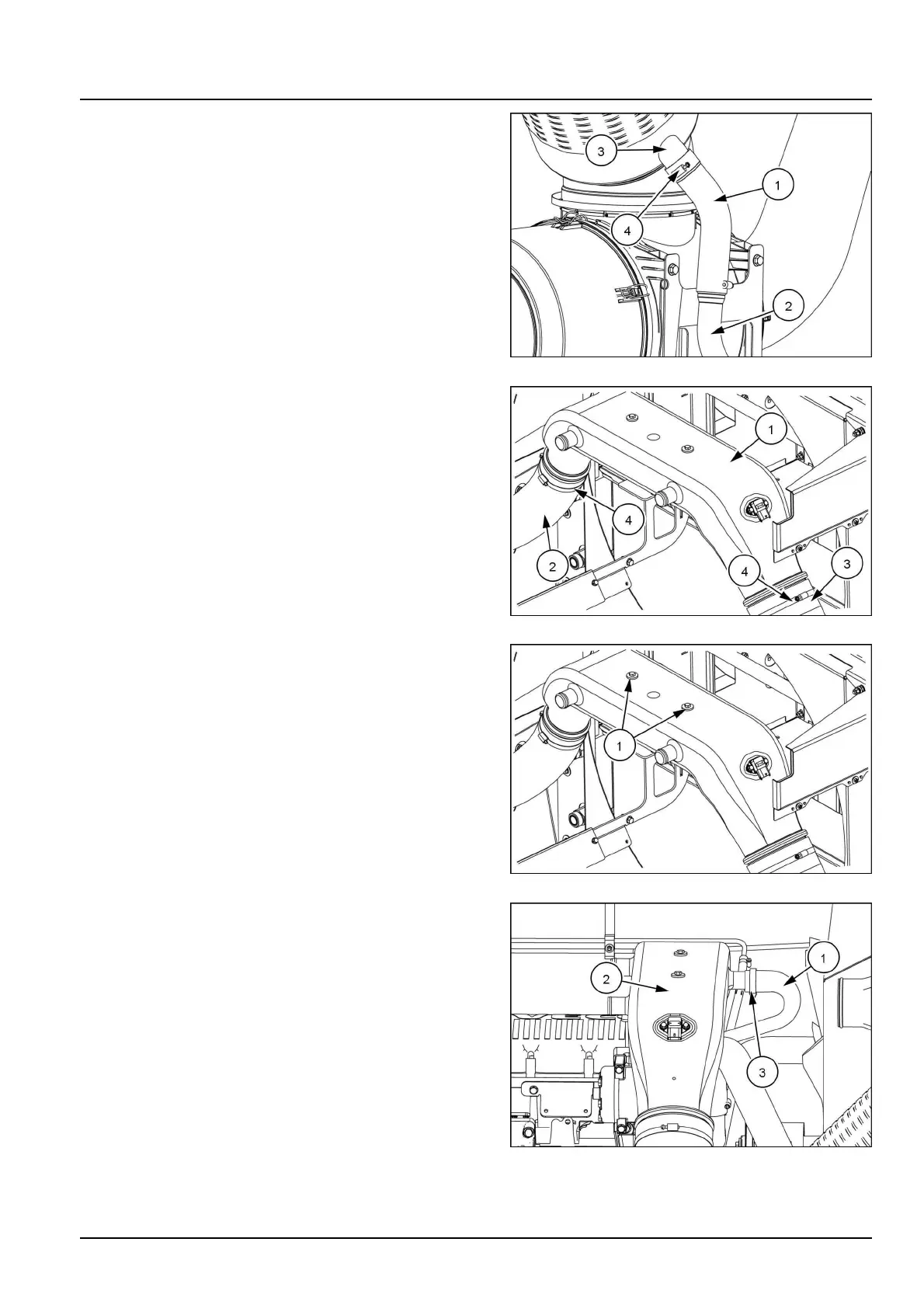

Engine-Aircleanersandlines
4.Slidethehose(1)oftheairintaketube(aspirator)(2)
ontothelterhousingtube(3).Positiontheclamp(4)
andtighten.
NHPE13AF00541AA4
5.Carefullyinstalltheairintaketube(1)totheturbo
charger(2)andtheairlterhousing(3).Positionthe
clamps(4)andtighten
NHPE13AF00446AA5
6.Installthetwoboltsandwashers(1)totheairintake
tube.Tightenboltstozeroclearance,thenaddonefull
turn.
NHPE13AF00446AA6
7.Installthehose(1)totheairintaketube(2).Position
thehoseclamp(3)andtighten.
NHPE13AF00540AA7
4804083715/08/2017
10.1[10.202]/13
