INTRODUCTION
Basicinstructions-ChainWearTables-RollerChains
AXIAL-FLOW7120[Y8G205001-Y9G207461],AXIAL-FLOW7120[Y9G207601-YAG210155],AXIAL-FLOW7120[YAG210201-YBG213400],
AXIAL-FLOW7120[YBG213601-YCG214716],AXIAL-FLOW8120[Y8G205001-Y9G207461],AXIAL-FLOW8120[Y9G207601-YAG210155],
AXIAL-FLOW8120[YAG210201-YBG213400],AXIAL-FLOW8120[YBG213601-YCG214716],AXIAL-FLOW9120
Chainwear
Theindividualjointsinarollerchainarticulateastheyen-
terandleavethesprockets.Thisarticulationresultsin
wearonthepinsandbushings.Materialthatiswornaway
fromthesesurfaceswillcausethechaintograduallyelon-
gate.Chainsdonotstretch.Materialiswornfrompinand
bushing.

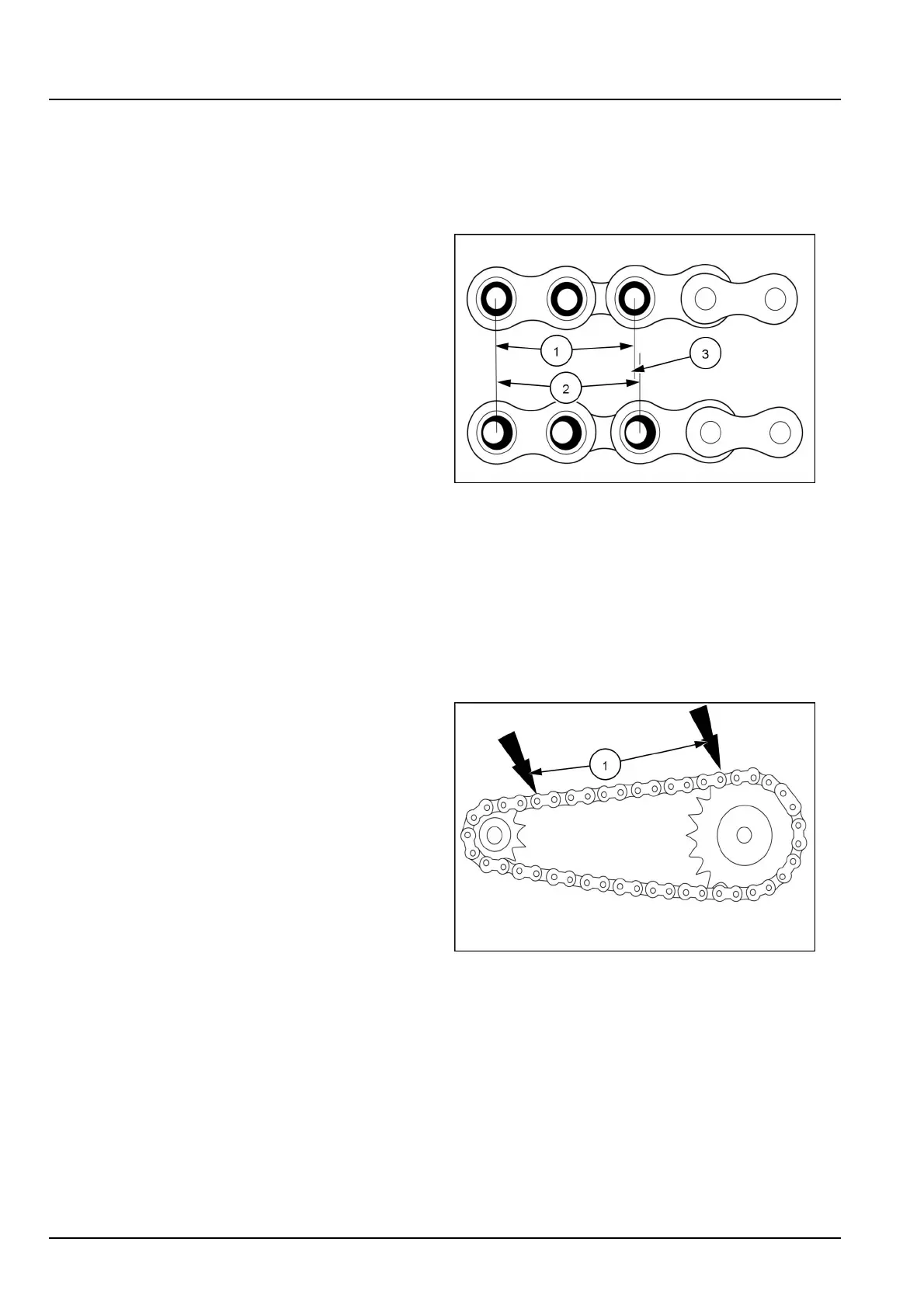

Criticaldimensionsofthechainareasfollows:
•
(1)2Xpitch
•
(2)Wearplus2Xpitch
•
(3)Elongationduetopinandbushingwear
960914781
Elongationisnormalandmaybeminimizedbyproper
lubricationanddrivemaintenance.Therateofwearis
dependentupon:therelationshipbetweentheloadand
theamountofbearingareabetweenpinandbushing,the
materialandsurfaceconditionofthebearingsurfaces,the
adequacyoflubrication,andthefrequencyanddegree
ofarticulationbetweenpinsandbushings.Thelatteris
determinedbythequantityofsprocketsinthedrive,their
speeds,thenumberofteethandthelengthofthechain
inpitches.
Anaccuratewearmeasurement(1)canbemadebyus-
ingtheaboveillustration.Measureascloselyaspossible
fromthecenterofonepintothecenterofanother.The
morepitches(pins)containedwithinthemeasurementin-
creasetheaccuracy.Ifthemeasuredvalueexceedsthe
nominalbymorethantheallowablepercentagethechain
shouldbereplaced.Themaximumallowablewearelon-
gationisapproximately3%formostindustrialapplica-
tions,baseduponsprocketdesign.Theallowablechain
wearinpercentcanbecalculatedusingtherelationship:
200/(N),where(N)isthenumberofteethinthelarge
sprocket.Thisrelationshipisoftenusefulsincethenor-
malmaximumallowablechainwearelongationof3%is
validonlyupto67teethinthelargesprocket.Indrives
havingxedcenterdistances,chainsrunninginparallel
orwheresmootheroperationisrequired,wearshouldbe
limitedtoapproximately1.5%.
Forexample,if12pitches(12pins)ofa#80chainwere
measuredandtheresultwas313.944mm(12.360in)or
greater(using3%asthemaximumallowablewear),the
chainshouldbereplaced.Anythinglessthan313.944
mm(12.360in)wouldstillbeacceptablebymostindus-
trialstandards.
960914692
8452697812/03/2013
26
