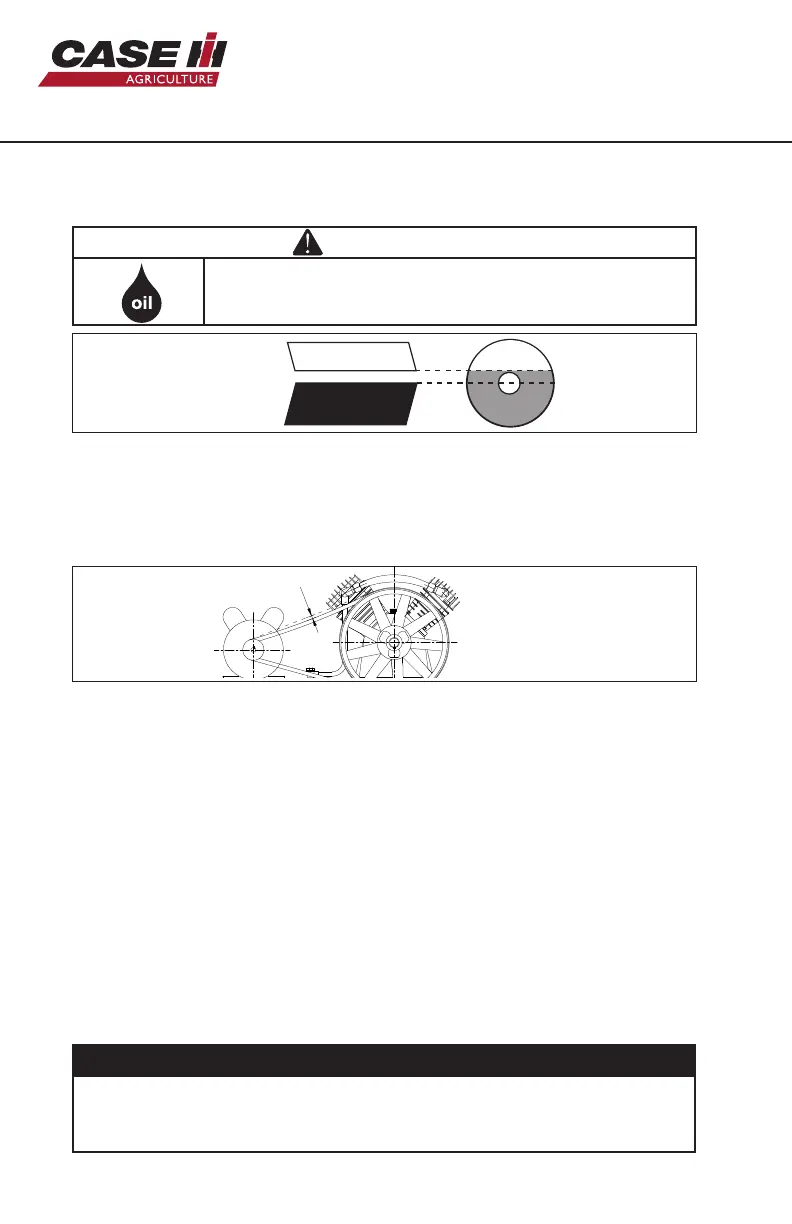

AssembLy INstRuctIONs
WARNING
The compressor is shipped without oil in the crankcase.
Add oil as indicated below.
Assembly
Read all safety instructions before using air compressor.
1. After opening the carton, please remove all parts and check against
photograph on carton. If any parts are missing, please call 1-855-
850-6668.
2. Place air compressor on a flat, level surface.
3. Pour supplied oil into crankcase until the oil level reaches the red dot
in the oil level sight glass. Be careful not to overfill.
Refill Oil
Immediately
Check Oil
Level Daily
Oil Level OK
NOTICE
Do not operate the compressor without lubricant or with low lubricant
level. We are not responsible for damage caused to the compressor
due to operation without proper lubrication.
4. Adjust tension of belt to ensure that a maximum of 1/2” / 12mm
of slack exists when pressure is placed on belt at centre line.
NOTE: If the belt is too tight, overloading of the motor will occur. This
will cause the motor to overheat. If the belt is installed too loose, it
will slip and unstable operation and vibration will occur. Caution -
The rotating direction for the flywheel must follow the arrow shown
on the belt guard.
5. Close the tank drain valve on the bottom of the air tank by turning the
valve clockwise until it’s fully closed.
6. Attach the air coupler to the compressor regulator valve. Use Teflon
thread-sealing tape on the threads to make sure you have an airtight
connection. Do not over tighten fittings.
7. Attach the supplied air filter to the air intake port on the pump head.
8. Attach air hose and any desired air accessories (which are not
included). Use Teflon thread-sealing tape on the threads to make
sure you have an airtight connection. Do not over tighten fittings.
1/2”
