Engine-Engineandcrankcase
Fuelpumpassembly
RAIL15TR00384BA30

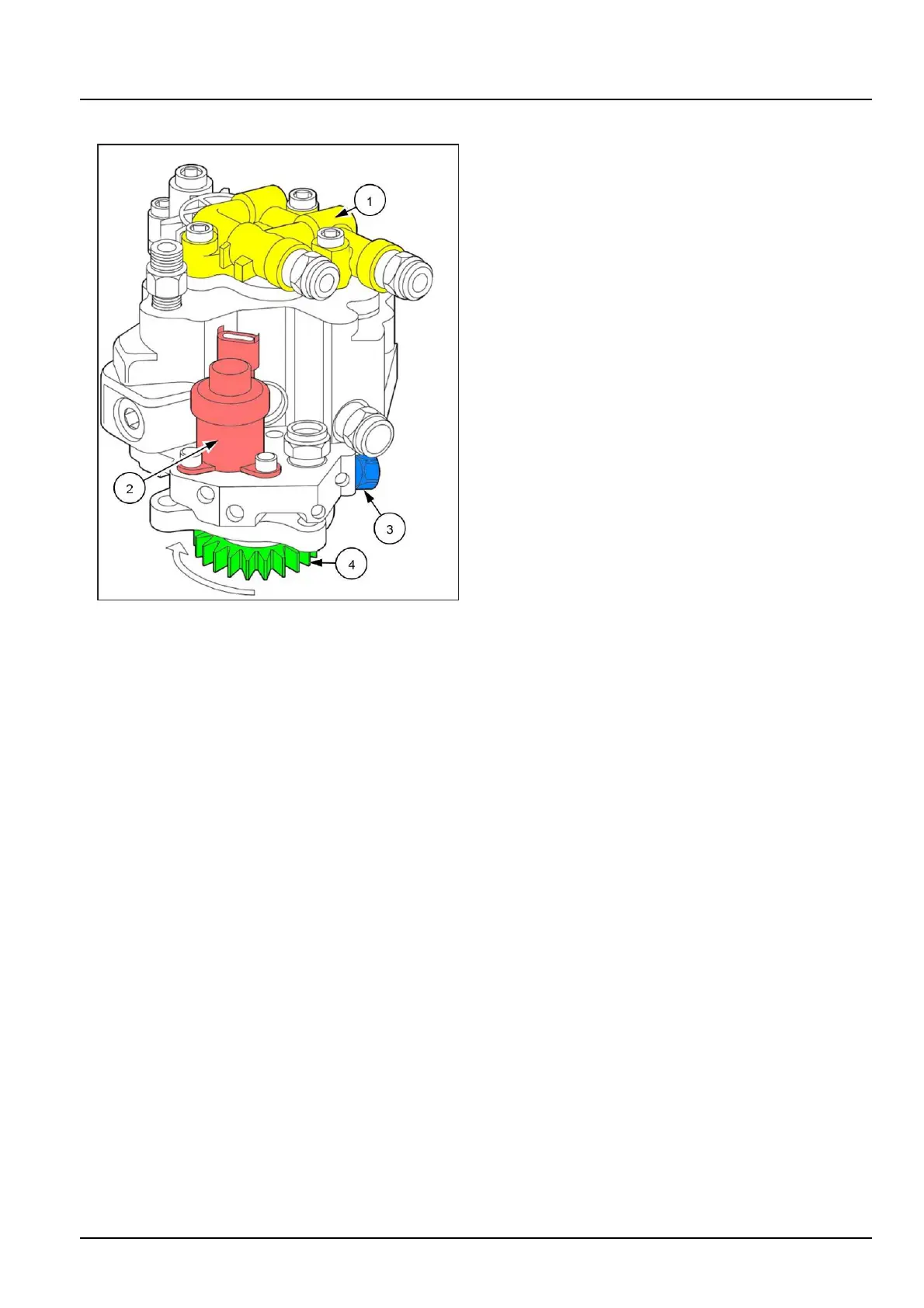

Thesearethecomponentsofthefuelpumpthatare
availableseparatelythroughparts
1.Lowpressuregearpump.
2.Regulatorvalve(Mprop).3.2ΩPWM.Controlslow
pressuresupplytohighpressurepump,therefore,
thecommonrailpressure.
3.5.0bar(72.5psi)lowpressurecontrolvalve.
NOTE:Therearetwo5.0bar(72.5psi)pressure
valves:oneinthegearpumpandthisoneinthe
pumpbody.
4.Drivegear.
