Engine-Engineandcrankcase

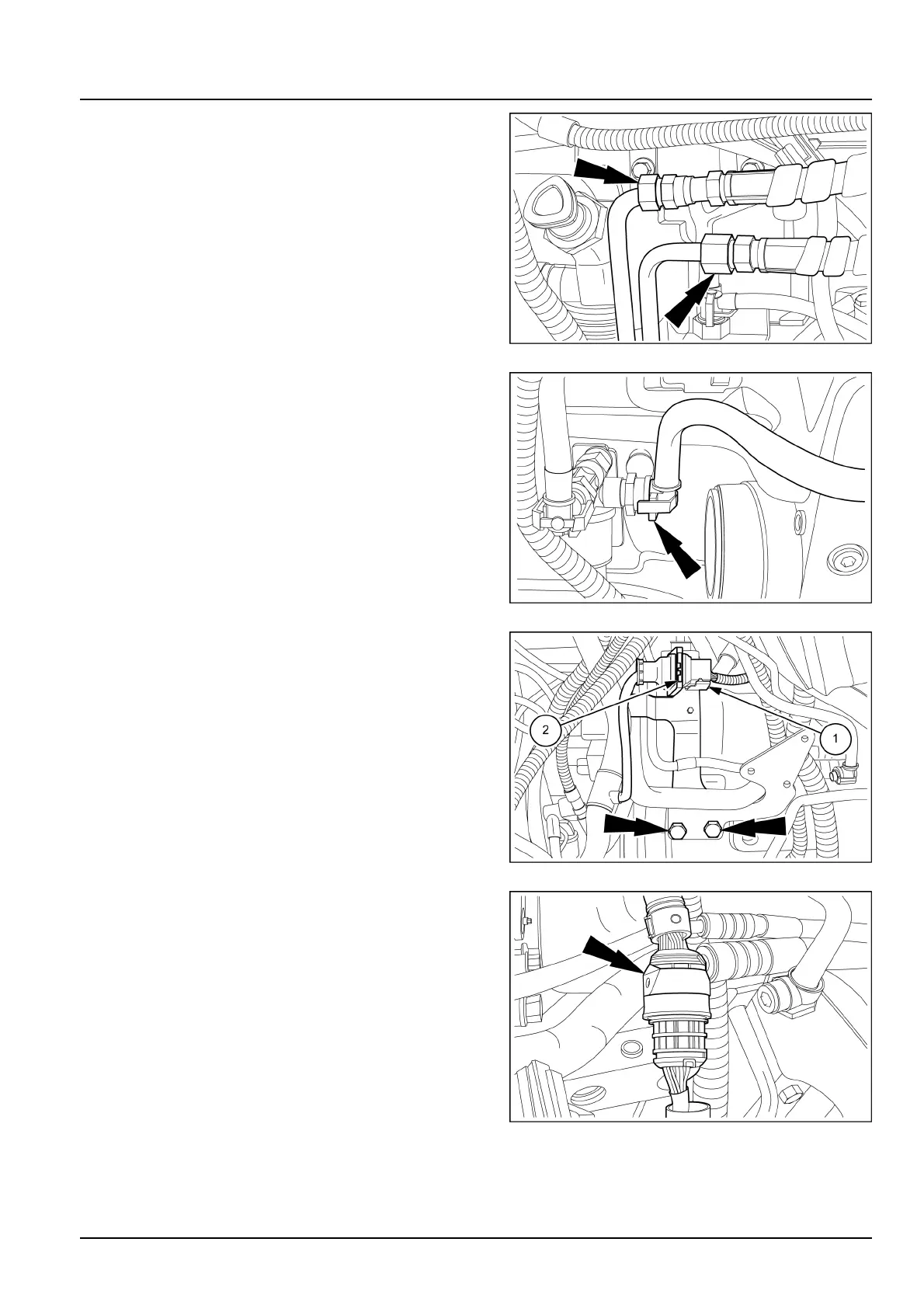

21.Disconnectthesteeringpipes.
NOTE:Markthepipestoaidinstallation.
BAIL14TR00940AB21
22.Removethefuelline.
BAIL14TR00941AB22
23.1.Disconnecttheelectricalconnector(1).
2.Detachthewiringharness(2)fromthebracket.
3.Removethebracket.
BAIL14TR00943AB23
24.Disconnectthein-lineelectricalconnector.
BAIL14TR00944AB24
4793872419/10/2015
10.1[10.001]/9
