HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
BAIL10CVT037AAB2

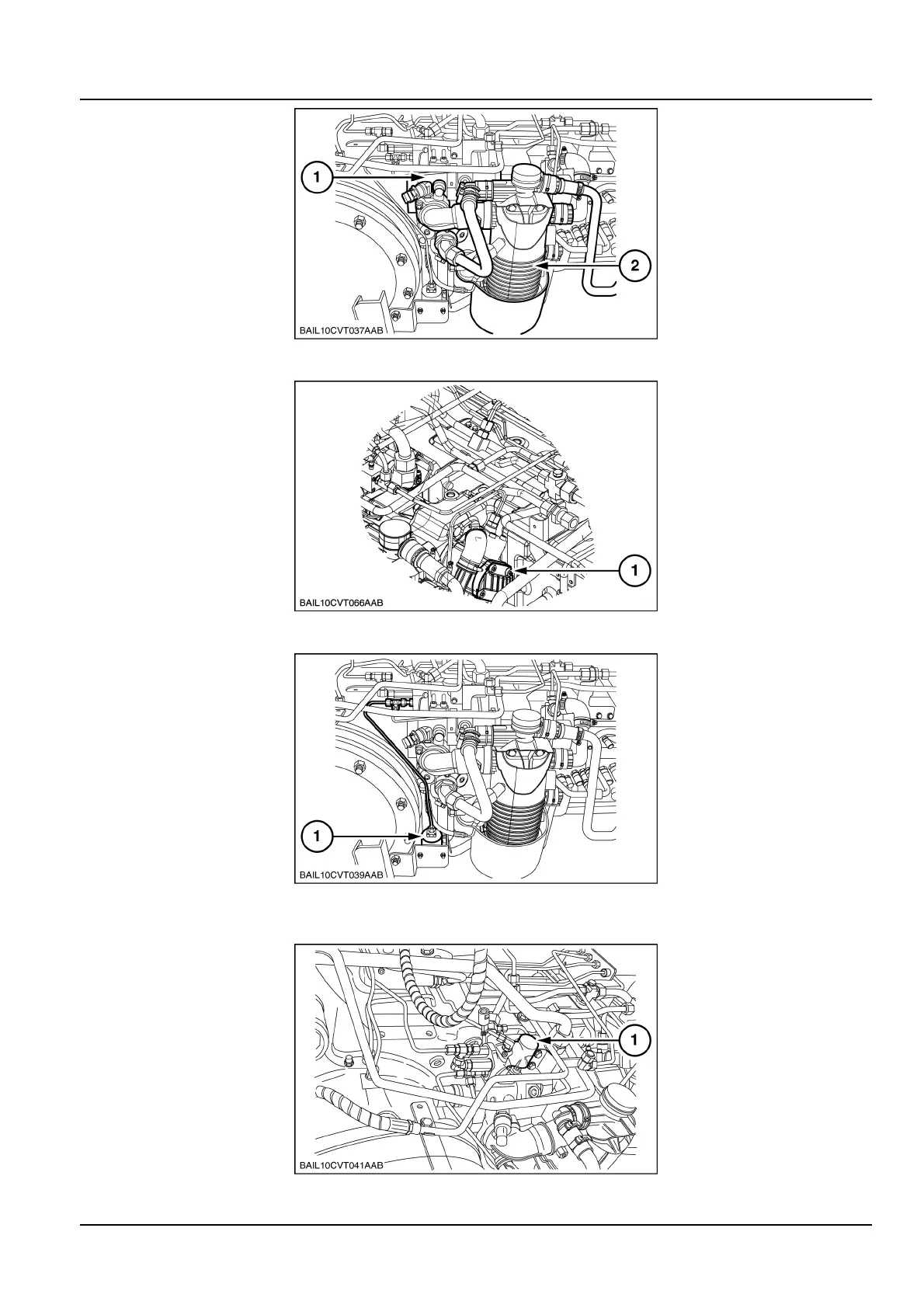

Thegearpump(1)Figure3supplieslowpressureandlubricationoil.
BAIL10CVT066AAB3
Locatedontherighthandsideoftherearaxlehousingisaresoundinglterassembly.
BAIL10CVT039AAB4
Thepriorityvalve(1)locatedonthetopofthemainpumpdivertshighpressureoiltothesteering,thetrailerbrake
valve(wheretted)(2)andhighpressurecircuit.(RefertoPriorityvalve-Dynamicdescription(A.14.A))
BAIL10CVT041AAB5
Closedcentreremotevalves.
