HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
BAIS06CCM055AVA11

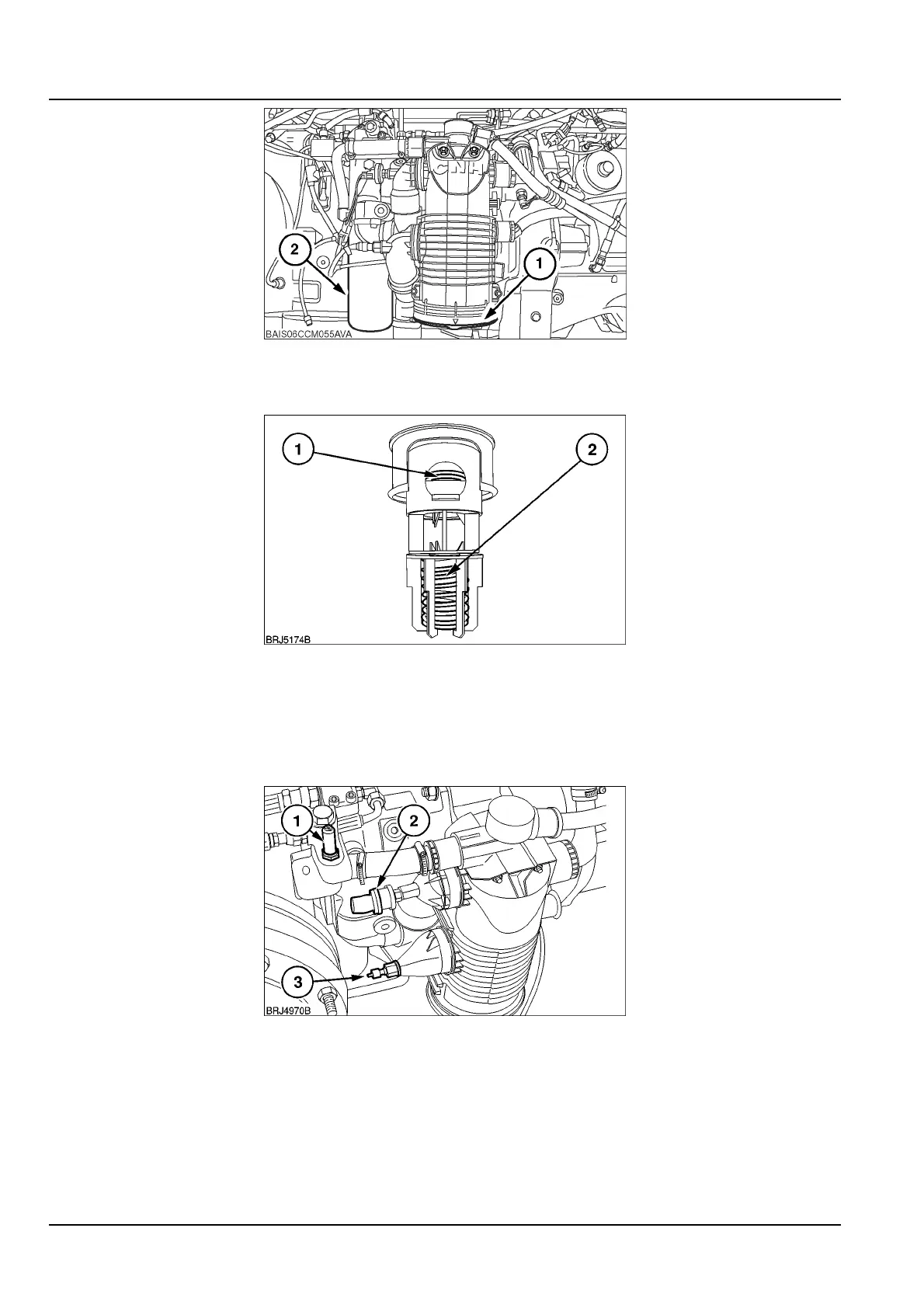

Twovalvesarelocatedwithinthelterassemblycap.Theseare(1)the0.8bar(11.600psi)supplementarylube
valveandthe3bar(43.500psi)chargepressurebypassvalve(2).
BRJ5174B12
HighPressureHydraulicSystem,VariableDisplacementPump(CCLS)-ElectricalSwitches
1.LowChargePressureWarningSwitch
2.IntakeFilterrestriction(vacuum)Switch
3.LowOilT emperatureSwitch
BAIL07APH325ASA13
Mid-MountRemoteValves.
Optionaladditionalremotevalvesaremountedunderthecab.Connectedintothehighpressureoillinesuppliedfrom
thehydraulicpumpafterthetrailerbrakevalveandoperatedviaajoystickcontrolinthecab.(RefertoMid-mount
remotecontrolvalve-Staticdescription(A.10.C))
