HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM

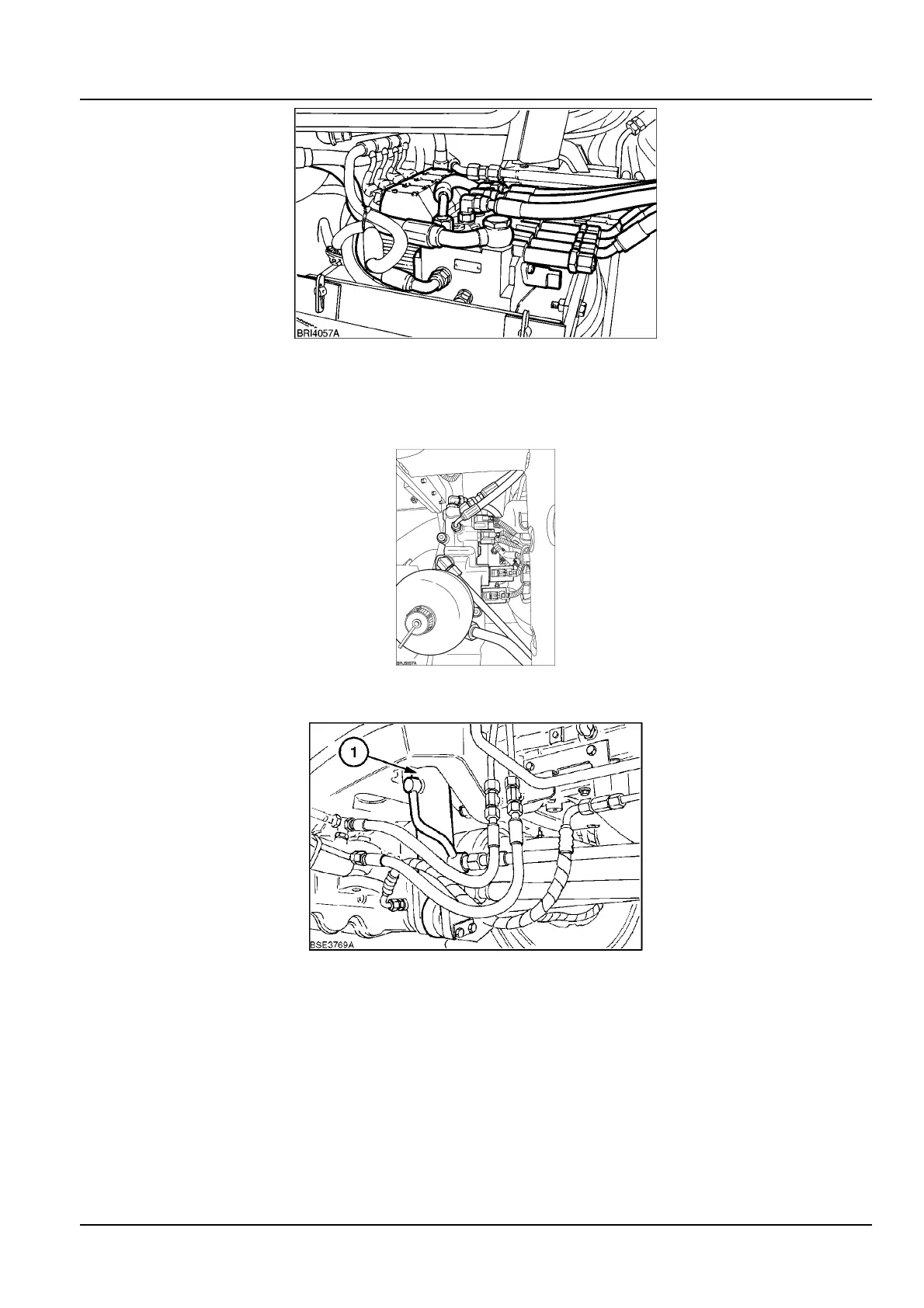

BAIL06CCM088ASA14
Suspendedfrontaxlecontrolvalve(wheretted)
Thesuspensioncontrolvalveislocatedontherighthandsideofthetractor.Highpressureoilisfedfromthepower
beyondportonthesubplateoftheremotevalvestackandwiththeuseofprocessorcontrolledPWMvalvescontrols
theowofoiltothesuspensioncylinder(RefertoSUSPENSIONHydraulic-Staticdescription(D.40.C))
BAIL07APH357HSA15
FrontAxleSuspensionCylinder
BSE3769A16
SteeringMotor
Allmodelsuseaxeddisplacementmotor.AlsottedasanoptiononsomemodelsisaTurnAssistvalve(1)which
iscoupledtothesteeringmotor(2).
