Case 1021G - Engine Installation

Engine-Engineandcrankcase
Engine-Install

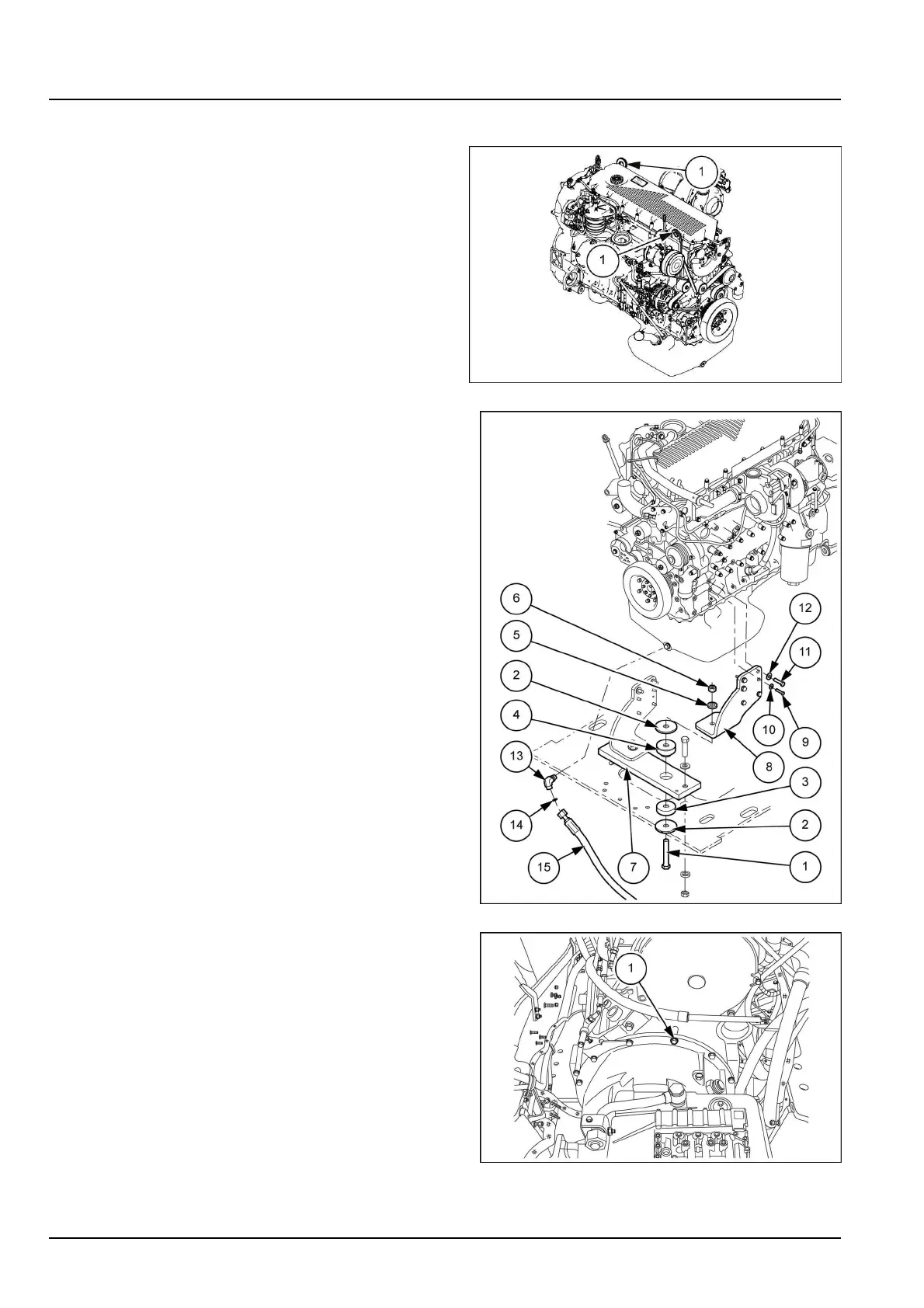

1.Attachasuitableliftingequipmenttotheenginelifting
brackets(1).
LEIL15WHL1142AB1
2.Installthetwoenginemountingbrackets(8)totheen-
gine.
Tightentheenginebracketupperbolts(11)andrelated
washers(12)toatorqueof170–231N·m(125.4–
170.4lbft).
Tightentheenginebracketlowerbolts(9)andrelated
washers(10)toatorqueof69.6–79.6N·m(51.3–
58.7lbft).
3.Inspecttheenginemounts.Iftheenginerubberisola-
torsrequirereplacement,removeanddiscardtheisola-
tors(3)and(4).Placetheengineovertherearchassis.
Installthebolts(1),washers(2),rubberlowerisolators
(3),enginemountingplate(7),rubberupperisolators
(4),washers(5)andnuts(6)toxtheenginetothe
rearchassis.Tightenthebolts(1)toatorqueof397–
447N·m(292.8–329.7lbft).
Installnewrubberlowerisolator(2)andnewupperiso-
lator(4).
4.Tightentheoildrainhose(15)withanewO-ring(14)
totheelbow(13).
LEIL15WHL1326BB2
5.Installthetwelvebellhousingbolts(1).Tightenthebell
housingbolts(1)toatorqueof54–60N·m(40–44lb
ft).
LEIL15WHL1020AB3
NOTE:steps6and7arerelatedonlytoCASECONSTRUCTION1021G.
48083742_EN31/07/2018
10.1[10.001]/20
